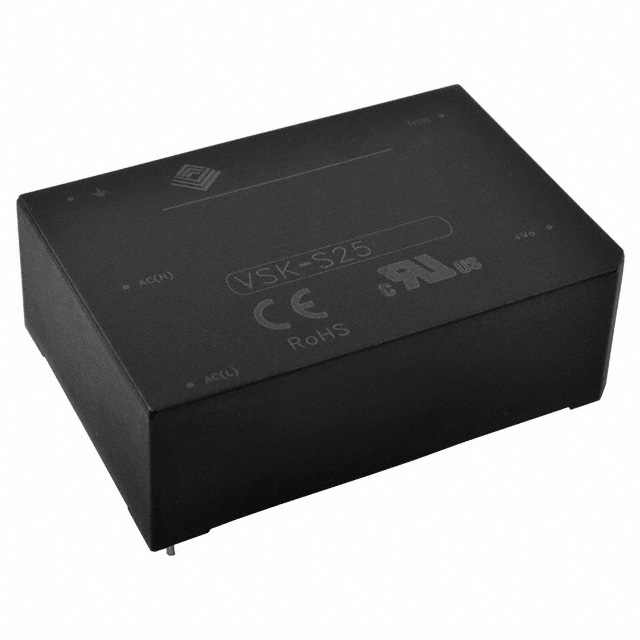

VSK-S25 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 15V 25W

Part	Efficiency	Power (Watts)	Current - Output 1	Number of Outputs	Approval Agency	Type	Features	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Line Regulation	Standard Number	Weight [custom]	Weight [custom]	Load Regulation	Current - Output (Max) [Max]	Package / Case

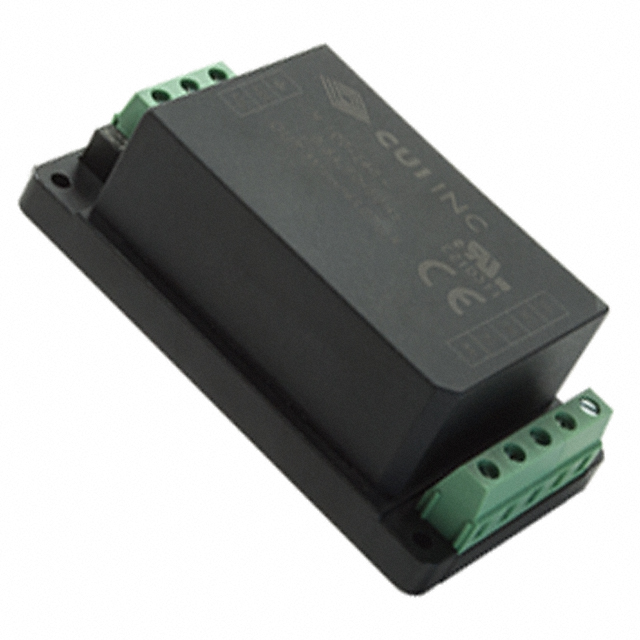

CUI Inc. VSK-S25-15U-T	83 %	25 W	1.6 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	15 V	Chassis Mount	3000 V	70 °C	-40 C
CUI Inc. VSK-S25-9U-T	78 %	25 W	2.5 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	9 V	Chassis Mount	3000 V	70 °C	-40 C
CUI Inc. VSK-S25-48U	87 %	25 W		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)							48 V	Through Hole				0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	120.2 g	±1%	500 mA	6-DIP Module
CUI Inc. VSK-S25-12U-T		25 W	2.1 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	12 V	Chassis Mount	3000 V	70 °C	-40 C
CUI Inc. VSK-S25-12U		25 W		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)							12 V	Through Hole				0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	120.2 g	±1%	2.1 A	6-DIP Module
CUI Inc. VSK-S25-15U	83 %	25 W		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)							15 V	Through Hole				0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	120.2 g	±1%	1.6 A	6-DIP Module
CUI Inc. VSK-S25-48U-T	87 %	25 W	500 mA	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	48 V	Chassis Mount	3000 V	70 °C	-40 C
CUI Inc. VSK-S25-24U	85 %	25 W		1	CB Scheme EN IEC UL	Enclosed	Universal Input	ITE (Commercial)							24 V	Through Hole				0.5 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.265 lb	120.2 g	±1%		6-DIP Module
CUI Inc. VSK-S25-24U-T	85 %	25 W	1.1 A	1	CE cURus	Enclosed	Universal Input	ITE (Commercial)	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	24 V	Chassis Mount	3000 V	70 °C	-40 C
