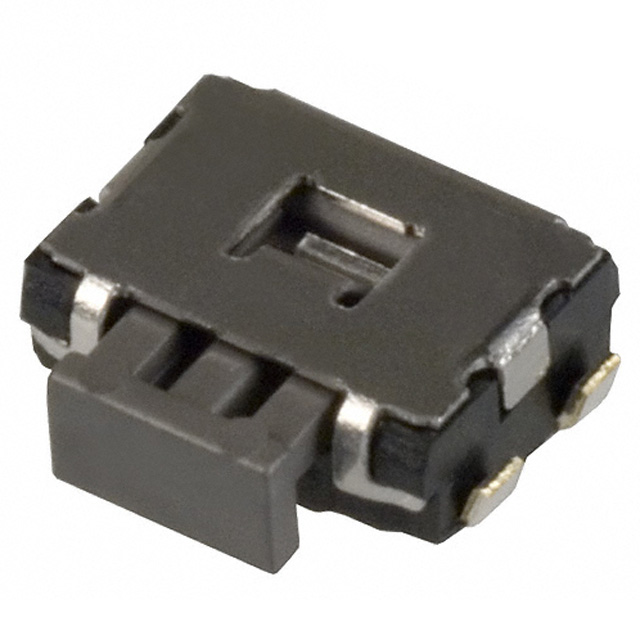

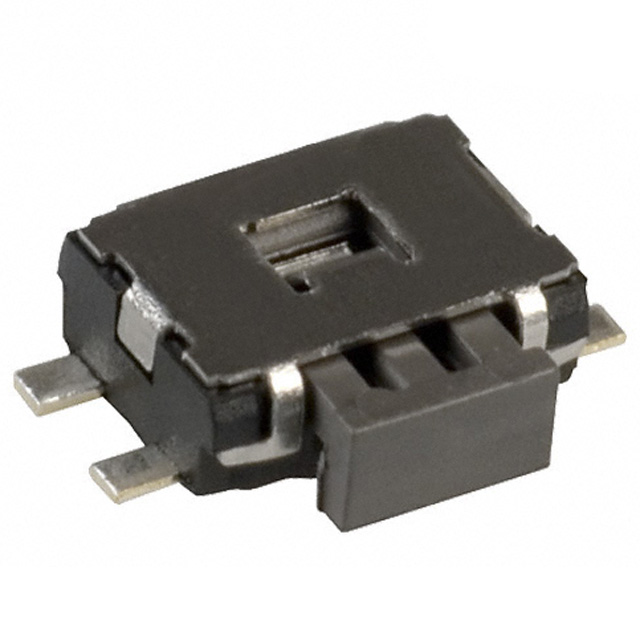

EVQ-PU Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Contact Rating @ Voltage	Switch Function	Mounting Type	Switch Travel [custom]	Circuit	Illumination	Outline [y]	Outline [x]	Mechanical Life	Operating Force
Panasonic Industrial Automation Sales EVQ-PUM02K	Side Actuated	Board Guide	-20 C	70 °C	J Lead	Rectangular Button	0.05 A 12 VDC	Off-Mom	Surface Mount Right Angle	0.3 mm	SPST-NO	Non-Illuminated	3.5 mm	5.5 mm	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PUL02K	Side Actuated	Board Guide	-20 C	70 °C	Gull Wing	Rectangular Button	0.05 A 12 VDC	Off-Mom	Surface Mount Right Angle	0.3 mm	SPST-NO	Non-Illuminated	3.5 mm	6.4 mm	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PUJ02K	Side Actuated		-20 C	70 °C	Gull Wing	Rectangular Button	0.05 A 12 VDC	Off-Mom	Surface Mount Right Angle	0.3 mm	SPST-NO	Non-Illuminated	3.5 mm	6.4 mm	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PUA02K	Side Actuated		-20 C	70 °C	Gull Wing	Rectangular Button	0.05 A 12 VDC	Off-Mom	Surface Mount Right Angle	0.3 mm	SPST-NO	Non-Illuminated	3.5 mm	6.4 mm	100000 Cycles	220 gf
Panasonic Industrial Automation Sales EVQ-PUD02K	Side Actuated	Board Guide	-20 C	70 °C	J Lead	Rectangular Button	0.05 A 12 VDC	Off-Mom	Surface Mount Right Angle	0.3 mm	SPST-NO	Non-Illuminated	3.5 mm	5.5 mm	100000 Cycles	220 gf
Panasonic Industrial Automation Sales EVQ-PUK02K	Side Actuated		-20 C	70 °C	J Lead	Rectangular Button	0.05 A 12 VDC	Off-Mom	Surface Mount Right Angle	0.3 mm	SPST-NO	Non-Illuminated	3.5 mm	5.5 mm	100000 Cycles
