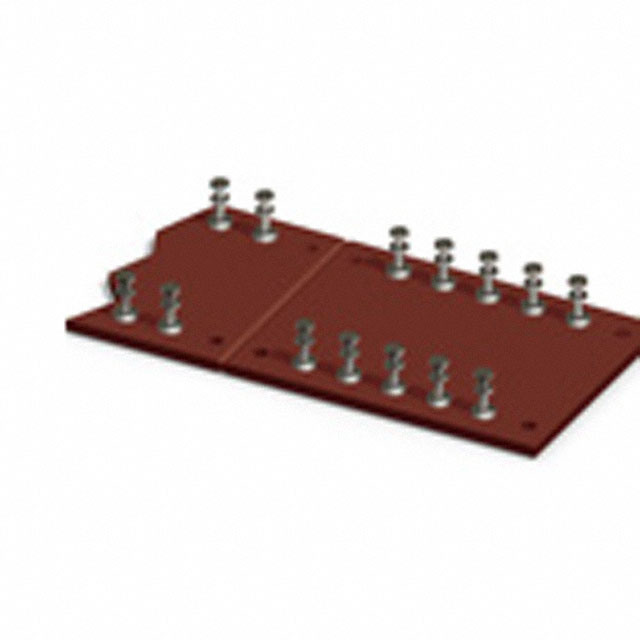

MS272495 Series
Manufacturer: Keystone Electronics
Beta
⌘K
TURRET BOARD 20POS 0.375" SINGLE
| Part | Contact Material | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Size [y] | Board Size [y] | Board Size [z] | Board Size [z] | Board Size [x] | Board Size [x] | Row Spacing [x] | Row Spacing [x] | Terminal Type | Number of Rows [custom] | Number of Positions | Pitch | Pitch | Material - Board | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Keystone Electronics | Brass | Tin | 0.12 in | 3.05 mm | 3 in | 76.2 mm | 0.125 in | 3.18 mm | 5.25 in | 133.35 mm | 2.5 in | 63.5 mm | Double Turret Single End Turret | 2 | 20 | 9.53 mm | 0.375 in | Glass Epoxy | Turret Board Scored |
