84983 Series

Catalog

CONN FFC FPC TOP 11POS 1MM R/A

Part	Housing Color	Pitch	Pitch	Contact Material	Flat Flex Type	Termination	Contact Finish	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Housing Material	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Cable End Type	Number of Positions	Mounting Type
TE Connectivity AMP Connectors 1-84983-1	White	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Kinked Pin	Tin	0.118 in	3 mm	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	85 °C	-20 ░C	Contacts Top	Straight	11	Right Angle Through Hole

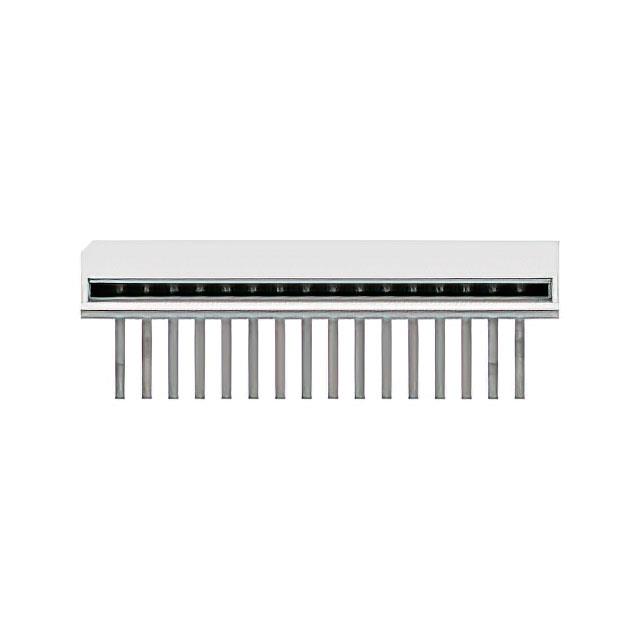

TE Connectivity AMP Connectors 1-84983-6	White	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Kinked Pin	Tin	0.118 in	3 mm	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	85 °C	-20 ░C	Contacts Top	Straight	16	Right Angle Through Hole
TE Connectivity AMP Connectors 1-84983-5	White	1 mm	0.039 in	Phosphor Bronze	FFC FPC	Kinked Pin	Tin	0.118 in	3 mm	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	85 °C	-20 ░C	Contacts Top	Straight	15	Right Angle Through Hole
