2302796 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

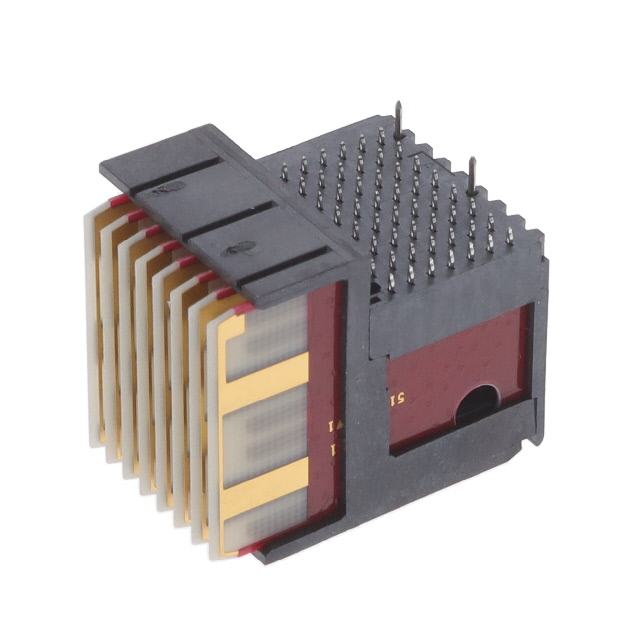

RAPLUGASSY,LEFTEND,HALF,RTM,VPX,
| Part | Voltage Rating | Color | Number of Rows | Number of Columns | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Connector Type | Contact Finish | Material Flammability Rating | Features | Number of Positions | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Termination | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 166 VAC/DC | Black | 7 | 8 | 0.071 in | 1.8 mm | 50 µin | 1.27 µm | All | Plug Male Blades | Gold | UL94 V-0 | Board Guide | 56 | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Half Left End VITA 46 | 20 | 4 | 16 | Press-Fit | Daughtercard |
