ETQ-P5 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

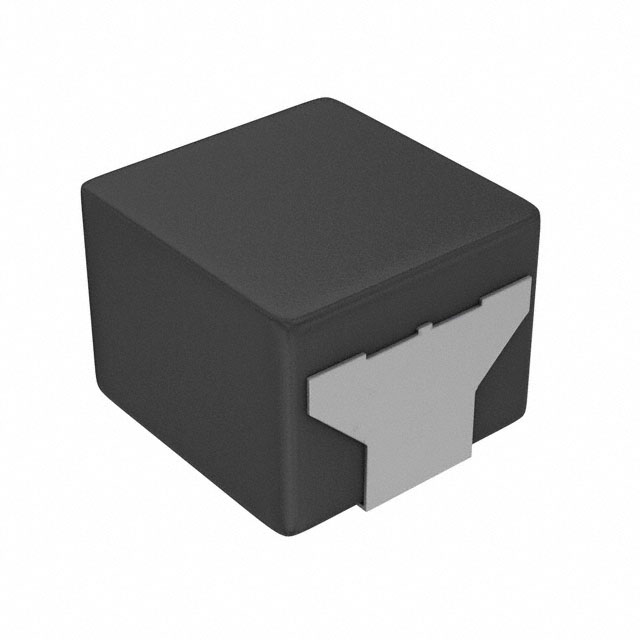

POWER INDUCTOR (SMD), 3.3 ΜH, 14.7 A, SHIELDED, 23.4 A, PCC-M1050M SERIES

Part	Ratings	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Tolerance	Current - Saturation (Isat)	DC Resistance (DCR)	Package / Case	Current Rating (Amps)	Inductance Frequency - Test	Material - Core	Inductance	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]
Panasonic Industrial Automation Sales ETQ-P5M3R3YGC	AEC-Q200	Surface Mount	0.429 "	10 mm	10.9 mm	0.394 in	Shielded	0.197 in	5 mm	Drum Core Wirewound	20 %	23.4 A	7.81 mOhm	2-SMD J-Lead	14.7 A	100 kHz	Metal Composite	3.3 µH
Panasonic Industrial Automation Sales ETQ-P5M330YFC	AEC-Q200	Surface Mount	0.421 in	10 mm	10.7 mm	0.394 in	Shielded	0.213 in	5.4 mm	Drum Core Wirewound	20 %	7.6 A		2-SMD J-Lead	5 A	100 kHz	Metal Composite	33 µH	75.4 mOhm
Panasonic Industrial Automation Sales ETQ-P5LR50XFA		Surface Mount	0.571 in	12.5 mm	14.5 mm	0.492 "	Shielded	0.197 in	5 mm	Drum Core Wirewound	20 %		0.8 mOhm	2-SMD J-Lead	30 A	100 kHz	Metal Composite	500 nH
Panasonic Industrial Automation Sales ETQ-P5M2R5YFK	AEC-Q200	Surface Mount		0.315 in	0.335 in		Shielded	0.213 in	5.4 mm	Drum Core Wirewound	20 %	20.1 A		2-SMD J-Lead	14 A	100 kHz	Metal Composite	2.5 µH	8.4 mOhm	8 mm	8.5 mm
Panasonic Industrial Automation Sales ETQ-P5M470YFK	AEC-Q200	Surface Mount		0.315 in	0.335 in		Shielded	0.213 in	5.4 mm	Drum Core Wirewound	20 %	5.4 A		2-SMD J-Lead	3.4 A	100 kHz	Metal Composite	47 µH	138 mOhm	8 mm	8.5 mm
Panasonic Industrial Automation Sales ETQ-P5M100YFM	AEC-Q200	Surface Mount	0.295 in	7 mm	7.5 mm	0.276 in	Shielded	0.213 in	5.4 mm	Drum Core Wirewound	20 %			2-SMD J-Lead	5.7 A	100 kHz	Metal Composite	10 µH	41.3 mOhm
Panasonic Industrial Automation Sales ETQ-P5M220YFM	AEC-Q200	Surface Mount	0.295 in	7 mm	7.5 mm	0.276 in	Shielded	0.213 in	5.4 mm	Drum Core Wirewound	20 %	5.8 A		2-SMD J-Lead	3.7 A	100 kHz	Metal Composite	22 µH	102 mOhm
Panasonic Industrial Automation Sales ETQ-P5M101YGK	AEC-Q200	Surface Mount		0.315 in	0.335 in		Shielded	0.197 in	5 mm	Drum Core Wirewound	20 %	3 A		2-SMD J-Lead	2.1 A	100 kHz	Metal Composite	100 µH	333 mOhm	8 mm	8.5 mm
Panasonic Industrial Automation Sales ETQ-P5M3R3YFC	AEC-Q200	Surface Mount	0.421 in	10 mm	10.7 mm	0.394 in	Shielded	0.213 in	5.4 mm	Drum Core Wirewound	20 %	22.7 A		2-SMD J-Lead	15.7 A	100 kHz	Metal Composite	3.3 µH	7.9 mOhm
Panasonic Industrial Automation Sales ETQ-P5MR33YLC	AEC-Q200	Surface Mount	0.429 "	10 mm	10.9 mm	0.394 in	Shielded	0.197 in	5 mm	Drum Core Wirewound	20 %	56.7 A	1.21 mOhm	2-SMD J-Lead	39.7 A	100 kHz	Metal Composite	330 nH
