SWT6 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Actuator Height off PCB, Vertical [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Switch Function	Termination Style	Operating Force	Outline [x]	Outline [y]	Actuator Orientation	Actuator Type	Contact Rating @ Voltage	Circuit	Actuator Length, Right Angle

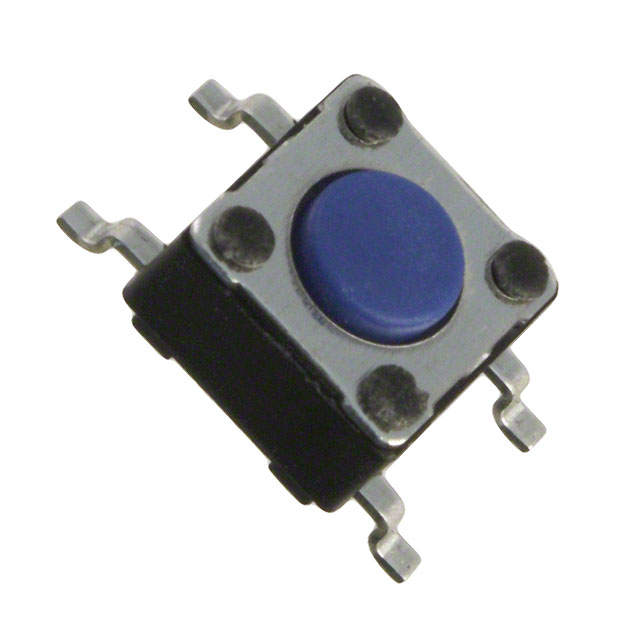

TT Electronics/BI SWT6-M2BTR	500000 Cycles	4.3 mm	Surface Mount	-20 ░C	70 °C	Non-Illuminated	Off-Mom	Gull Wing	260 gf	6 mm	6 mm	Top Actuated	Standard	0.05 A 12 VDC	SPST-NO

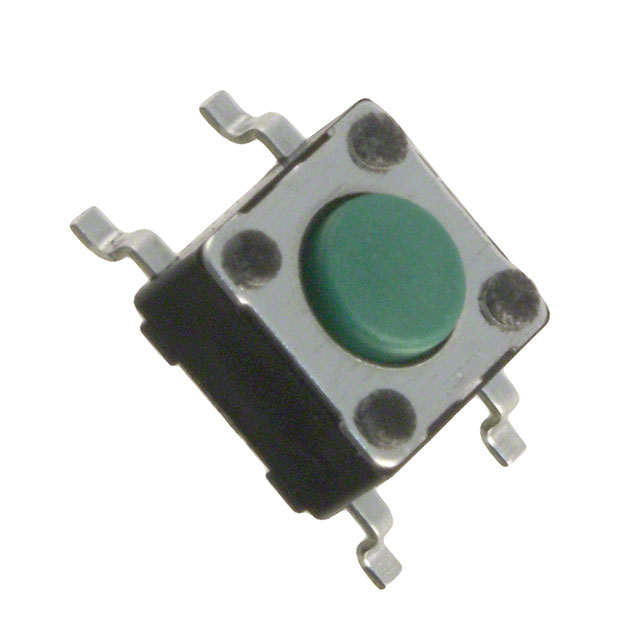

TT Electronics/BI SWT6-M2GTR	500000 Cycles	4.3 mm	Surface Mount	-20 ░C	70 °C	Non-Illuminated	Off-Mom	Gull Wing	160 gf	6 mm	6 mm	Top Actuated	Standard	0.05 A 12 VDC	SPST-NO

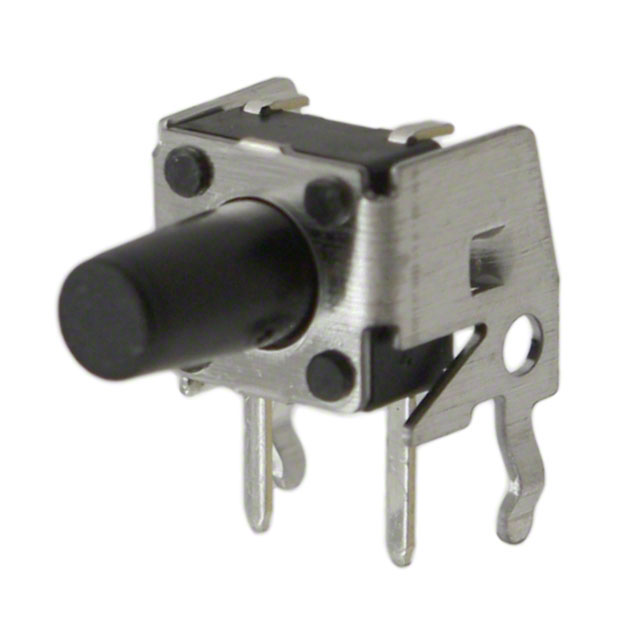

TT Electronics/BI SWT6-R6K	500000 Cycles		Right Angle Through Hole	-20 ░C	70 °C	Non-Illuminated	Off-Mom	PC Pin	100 gf	7.4 mm	6.5 mm	Side Actuated	Standard	0.05 A 12 VDC	SPST-NO	8.35 mm
