858VA04 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN RCPT MALE 4P GOLD SLDR CUP
| Part | Number of Positions | Orientation | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shell Size - Insert | Shielding | Applications | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Primary Material | Insert Material | Connector Type | Shell Finish | Contact Finish - Mating | Color | Ingress Protection | Shell Material | Current Rating (Amps) | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

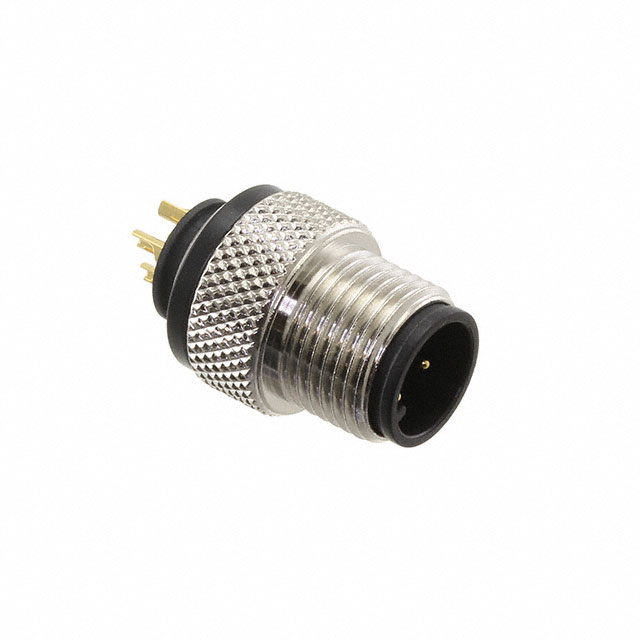

 NorComp Inc. | 4 | A | Brass | -40 C | 105 ░C | Free Hanging (In-Line) | M12-4 | Unshielded | Industrial Medical | UL94 V-0 | 0.25 µm | 10 µin | 250 V | Metal | Nylon 6/6 Polyamide (PA66) | Receptacle Male Pins | Nickel | Gold | Black Silver | IP67 - Dust Tight Waterproof | Brass | 4 A | Threaded | |

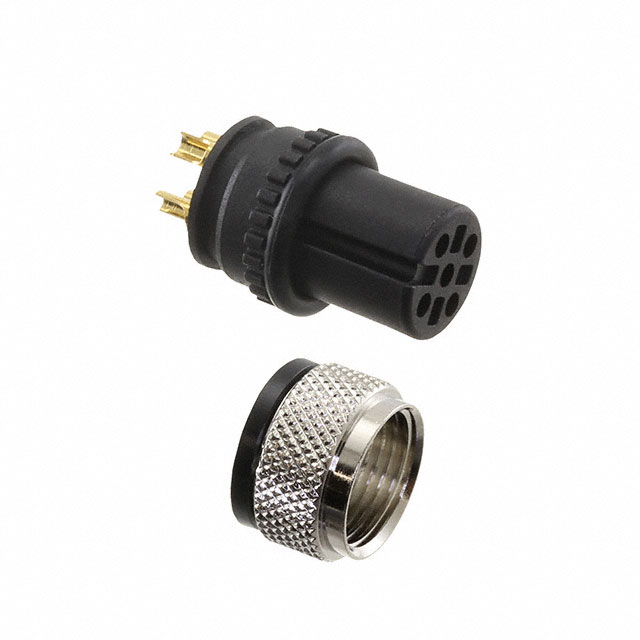

 NorComp Inc. | 4 | A | Brass | -40 C | 105 ░C | Free Hanging (In-Line) | M12-4 | Unshielded | Industrial Medical | UL94 V-0 | 0.25 µm | 10 µin | 250 V | Metal | Nylon 6/6 Polyamide (PA66) | Plug Female Sockets | Nickel | Gold | Black Silver | IP67 - Dust Tight Waterproof | Brass | 4 A | Threaded | Coupling Nut |
