SM0603 Series

Catalog

SURFACE-MOUNT/AXIAL LED LAMP,ORANGE-RED,WATER CLEAR,LED-8D

Part	Lens Style	Color	Millicandela Rating	Configuration	Lens Color	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Height (Max) [Max] [z]	Current - Test	Wavelength - Peak	Mounting Type	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Lens Size [x]	Lens Size [y]	Package / Case	Package / Case	Type	Orientation	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength [Max]	Wavelength [Min]	Height (Max) [z]	Supplier Device Package
Bivar Inc. SM0603HC	Rectangle with Flat Top	Red	15 mcd	Standard	Colorless	1.8 V	643 nm	0.8 mm	20 mA	660 nm	Surface Mount	Clear	1.6 mm	0.8 mm	130 °	1 mm	0.8 mm	1608 Metric	0603
Bivar Inc. SM0603UV-395						3.4 V					Surface Mount				130 °			1608 Metric	0603	Ultraviolet (UV)	Top View	25 mA	-30 °C	80 °C	400 nm	395 nm
Bivar Inc. SM0603YC	Rectangle with Flat Top	Yellow	6 mcd	Standard	Colorless	2 V	585 nm	0.8 mm	20 mA	583 nm	Surface Mount	Clear	1.6 mm	0.8 mm	130 °	1 mm	0.8 mm	1608 Metric	0603
Bivar Inc. SM0603GCL	Rectangle with Flat Top	Green	3.6 mcd	Standard	Colorless	1.9 V	574 nm		2 mA	575 nm	Surface Mount	Clear	1.6 mm	0.8 mm	130 °	1 mm	0.8 mm	1608 Metric	0603								0.6 mm
Bivar Inc. SM0603SBWC	Rectangle with Flat Top	Blue	115 mcd	Standard	Colorless	3 V	470 nm		20 mA	468 nm	Surface Mount	Clear	1.6 mm	0.8 mm	130 °	1 mm	0.8 mm	1608 Metric	0603								0.6 mm	0603 (1608 Metric)

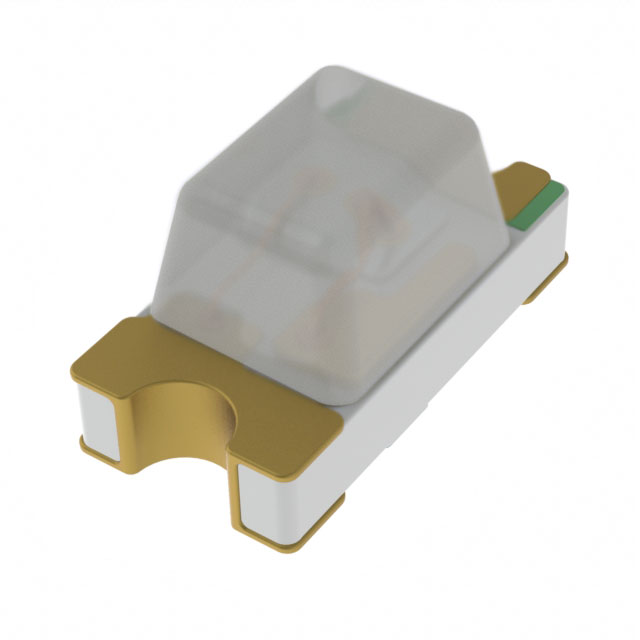

Bivar Inc. SM0603HCL	Rectangle with Flat Top	Red	11.5 mcd	Standard	Colorless	1.9 V	631 nm	0.8 mm	2 mA	645 nm	Surface Mount	Clear	1.6 mm	0.8 mm	130 °	1 mm	0.8 mm	1608 Metric	0603
