T41114 Series

Circular Metric Connectors M12,FEMALE,RA,A CODE ,3P,PG9,GOLD

Manufacturer: TE Connectivity AMP Connectors

Catalog

Circular Metric Connectors M12,FEMALE,RA,A CODE ,3P,PG9,GOLD

Catalog

Circular Metric Connectors M12,FEMALE,RA,A CODE ,3P,PG9,GOLD

Part	Shielding	Voltage Rating	Features	Insert Material [custom]	Insert Material [custom]	Applications	Termination	Contact Finish - Mating	Shell Material	Number of Positions	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Shell Size - Insert	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Ingress Protection	Color	Primary Material	Backshell Material, Plating	Contact Material	Current Rating (Amps)	Orientation	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
TE Connectivity AMP Connectors T4111411051-000	Shielded	60 VDC	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Gold	Brass	5	Nickel	85 °C	-40 C	0.157 in	0.236 in	6 mm	4 mm	M12-5	Receptacle Male Pins	0.076 µm	3 µin	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Silver	Metal	Brass Nickel	Zinc Alloy	4 A	B	Threaded

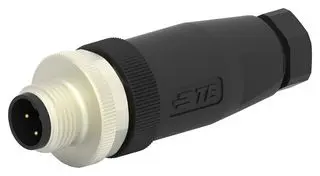

TE Connectivity AMP Connectors T4111401041-000	Unshielded	250 V	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Gold	Brass	4	Nickel	85 °C	-40 C	0.157 in	0.236 in	6 mm	4 mm	M12-4	Receptacle Male Pins	0.076 µm	3 µin	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Black Silver	Metal	Polybutylene Terephthalate (PBT) Glass Filled	Zinc Alloy	4 A	B	Threaded
TE Connectivity AMP Connectors T4111402042-000	Unshielded	250 V	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Silver	Brass	4	Nickel	85 °C	-40 C	0.236 in	0.315 in	8 mm	6 mm	M12-4	Receptacle Male Pins			Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Black Silver	Metal	Polybutylene Terephthalate (PBT) Glass Filled	Brass	4 A	B	Threaded	2.03 µm	80 µin

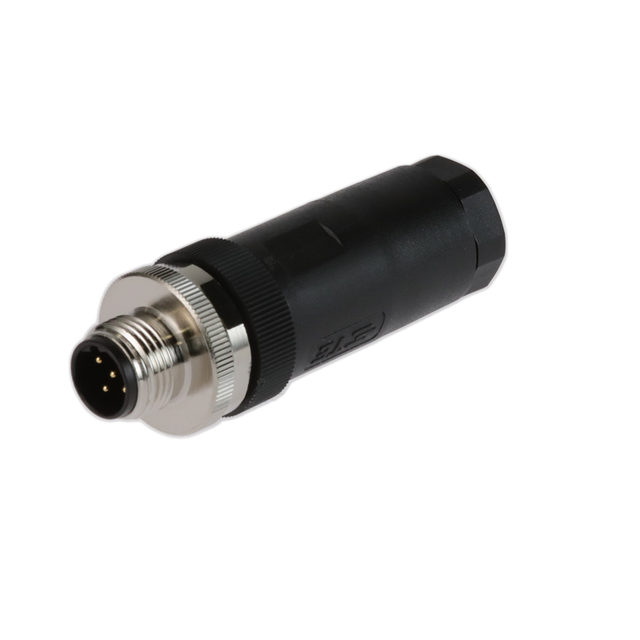

TE Connectivity AMP Connectors T4111402051-000	Unshielded	60 VDC	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Gold	Brass	5	Nickel	85 °C	-40 C	0.236 in	0.315 in	8 mm	6 mm	M12-5	Receptacle Male Pins	0.076 µm	3 µin	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Black Silver	Metal	Polybutylene Terephthalate (PBT) Glass Filled	Zinc Alloy	4 A	B	Threaded
TE Connectivity AMP Connectors T4111412042-000	Shielded	250 V	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Silver	Brass	4	Nickel	85 °C	-40 C	0.236 in	0.315 in	8 mm	6 mm	M12-4	Receptacle Male Pins			Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Silver	Metal	Brass Nickel	Brass	4 A	B	Threaded	2.03 µm	80 µin

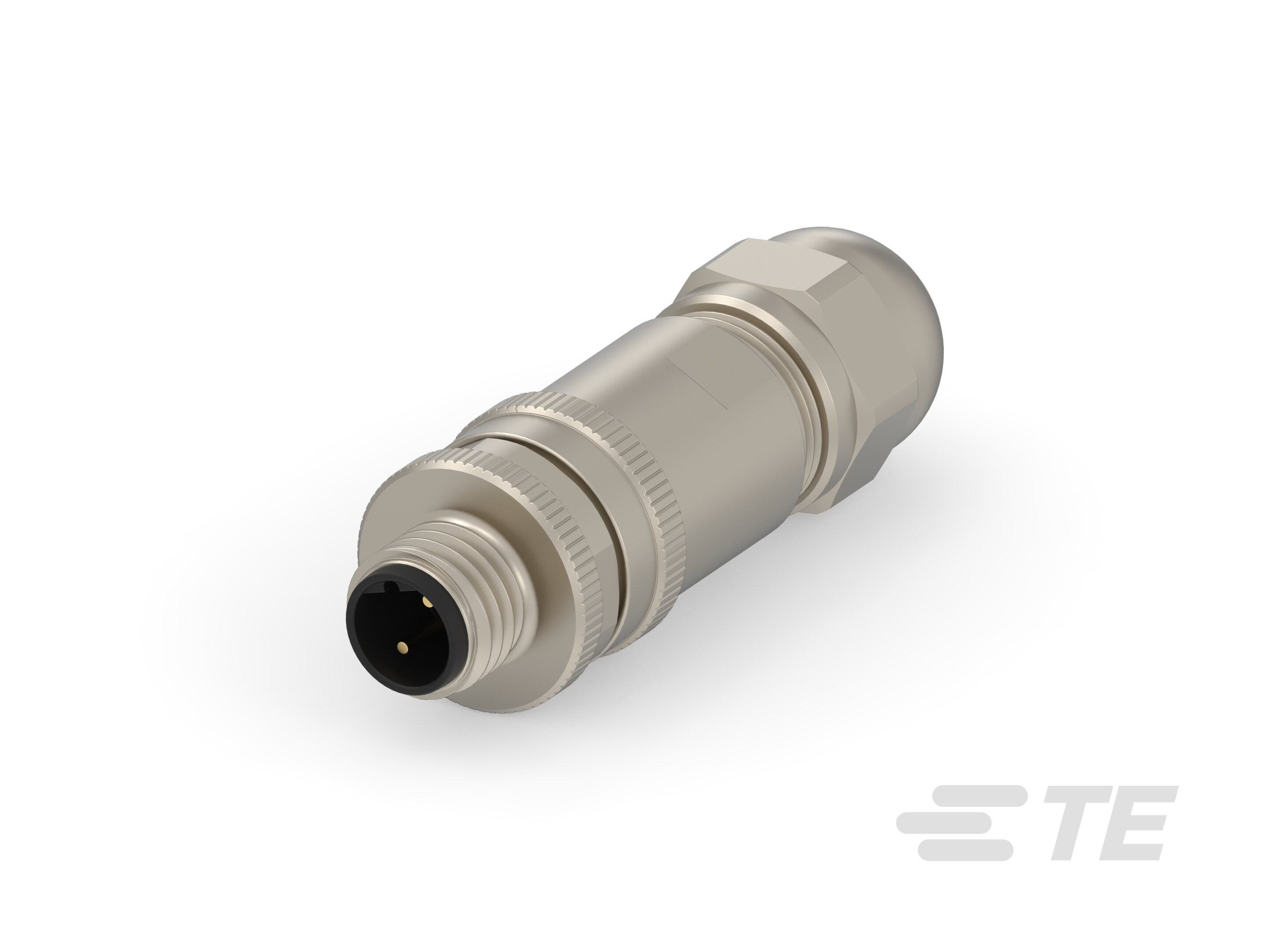

TE Connectivity AMP Connectors T4111412021-000	Shielded	250 V	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Gold	Brass	2	Nickel	85 °C	-40 C	0.236 in	0.315 in	8 mm	6 mm	M12-2	Receptacle Male Pins	0.076 µm	3 µin	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Silver	Metal	Brass Nickel	Brass	4 A	B	Threaded
TE Connectivity AMP Connectors T4111411022-000	Shielded	250 V	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Silver	Brass	2	Nickel	85 °C	-40 C	0.157 in	0.236 in	6 mm	4 mm	M12-2	Receptacle Male Pins			Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Silver	Metal	Brass Nickel	Brass	4 A	B	Threaded	2.03 µm	80 µin

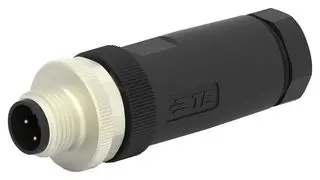

TE Connectivity AMP Connectors T4111402041-000	Unshielded	250 V	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Gold	Brass	4	Nickel	85 °C	-40 C	0.236 in	0.315 in	8 mm	6 mm	M12-4	Receptacle Male Pins	0.076 µm	3 µin	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Black Silver	Metal	Polybutylene Terephthalate (PBT) Glass Filled	Zinc Alloy	4 A	B	Threaded
TE Connectivity AMP Connectors T4111411032-000	Shielded	250 V	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Silver	Brass		Nickel	85 °C	-40 C	0.157 in	0.236 in	6 mm	4 mm	M12-3	Receptacle Male Pins			Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Silver	Metal	Brass Nickel	Brass	4 A	B	Threaded	2.03 µm	80 µin

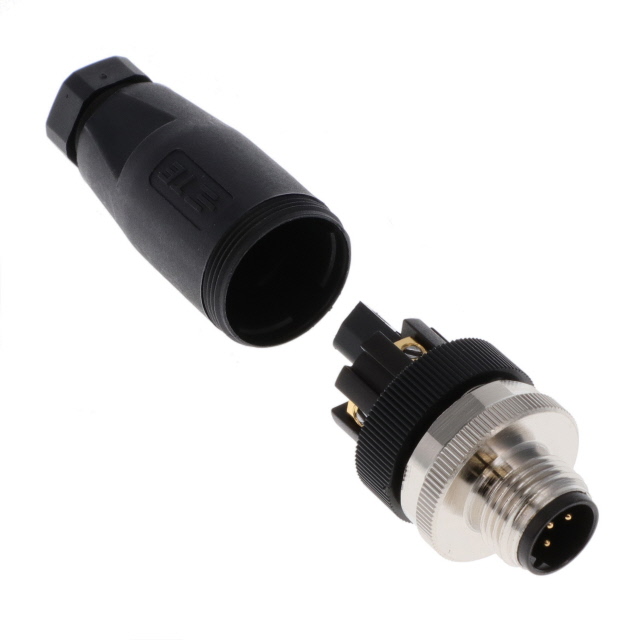

TE Connectivity AMP Connectors T4111401051-000	Unshielded	60 VDC	Backshell	Nylon	Polyamide (PA)	Industrial	Screw	Gold	Brass	5	Nickel	85 °C	-40 C	0.157 in	0.236 in	6 mm	4 mm	M12-5	Receptacle Male Pins	0.076 µm	3 µin	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Black Silver	Metal	Polybutylene Terephthalate (PBT) Glass Filled	Zinc Alloy	4 A	B	Threaded
