LB15WKG Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Type	Illumination Type, Color	Voltage Rating - DC	Termination Style	Ingress Protection	Color - Actuator/Cap	Switch Function	Voltage Rating - AC	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Circuit	Illumination Voltage (Nominal)
NKK Switches LB15WKG01-6F-JB	100000 Cycles	1000000 Cycles	Illuminated Standard	Green LED	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	3.3 VDC
NKK Switches LB15WKG01-5F24-JB	100000 Cycles	1000000 Cycles	Illuminated Standard	Green LED	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	24 V
NKK Switches LB15WKG01-5D24-JD	100000 Cycles	1000000 Cycles	Illuminated Standard	Amber LED	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	24 V
NKK Switches LB15WKG01-5F05-JB	100000 Cycles	1000000 Cycles	Illuminated Standard	Green LED	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	5 VDC
NKK Switches LB15WKG01-5D-JB	100000 Cycles	1000000 Cycles	Illuminated Standard	Amber LED	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	2 VDC

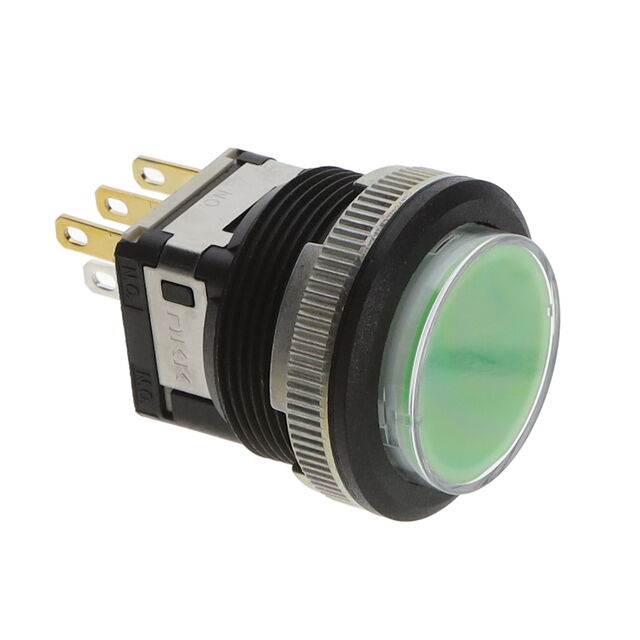

NKK Switches LB15WKG01-5F24-JF	100000 Cycles	1000000 Cycles	Illuminated Standard	Green LED	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	24 V
NKK Switches LB15WKG01-5C24-JC	100000 Cycles	1000000 Cycles	Illuminated Standard	LED Red	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	24 V

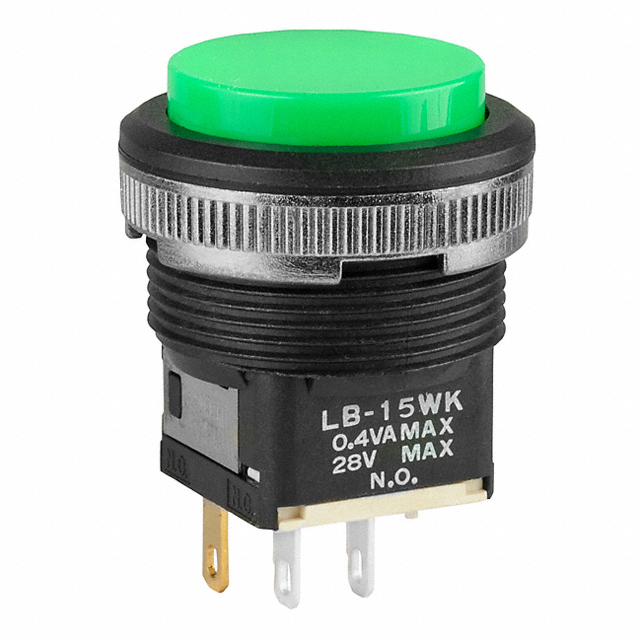

NKK Switches LB15WKG01-FJ	100000 Cycles	1000000 Cycles	Standard		28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Green	On-Mom	28 V	0.4 VA	70 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT

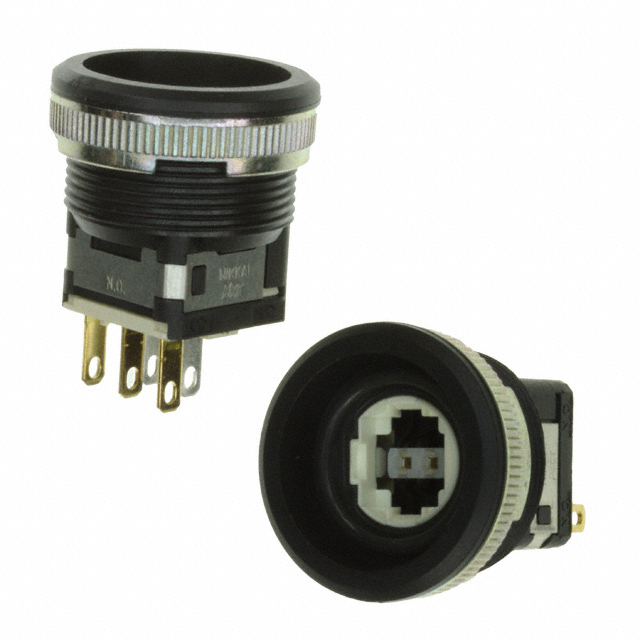

NKK Switches LB15WKG01	100000 Cycles	1000000 Cycles	Standard		28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant		On-Mom	28 V	0.4 VA	70 °C	-25 °C	Plunger for Cap	Panel Mount Front	No Marking	22 mm	SPDT

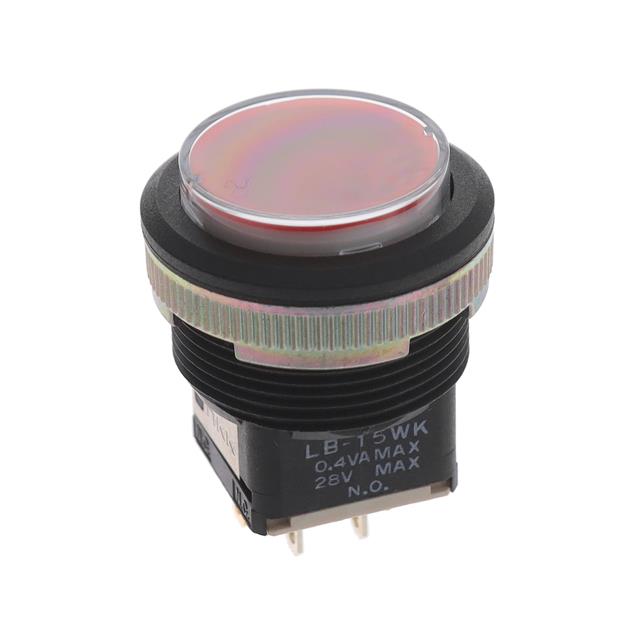

NKK Switches LB15WKG01-5C12-JC	100000 Cycles	1000000 Cycles	Illuminated Standard	LED Red	28 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Clear	On-Mom	28 V	0.4 VA	50 °C	-25 °C	Button Round	Panel Mount Front	No Marking	22 mm	SPDT	12 VDC
