PTN78020W Series

4 A, Wide Input, Non-Isolated, Wide Negative Output Adjust Module

Catalog

4 A, Wide Input, Non-Isolated, Wide Negative Output Adjust Module

Part	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Applications	Efficiency	Features	Current - Output (Max) [Max]	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
Texas Instruments PTN78020WAS	Surface Mount	7 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	1	7-SMD Module	36 V	ITE (Commercial)	94 %	OCP OTP Remote On/Off UVLO	6 A	Non-Isolated PoL Module	12.6 V	2.5 V

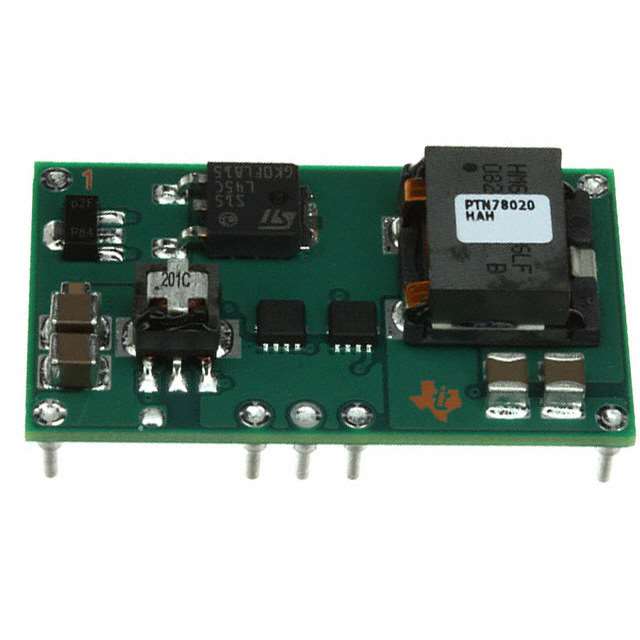

Texas Instruments PTN78020HAH	Through Hole	15 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	8.9 mm	0.87 in	0.35 "	1	7-DIP Module	36 V	ITE (Commercial)	96 %	UVLO	6 A	Non-Isolated PoL Module	22 V	11.85 V

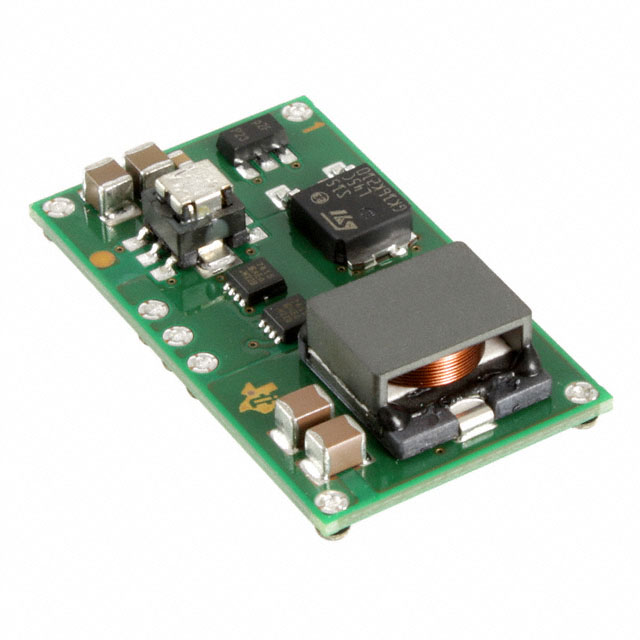

Texas Instruments PTN78020AAS	Surface Mount	9 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	1	7-SMD Module	29 V	ITE (Commercial)	87 %	OCP OTP UVLO	4 A	Non-Isolated PoL Module	-3 V	-15 V
Texas Instruments PTN78020WAD	Through Hole	7 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	8.9 mm	0.87 in	0.35 "	1	7-DIP Module	36 V	ITE (Commercial)	94 %		6 A	Non-Isolated PoL Module	12.6 V	2.5 V

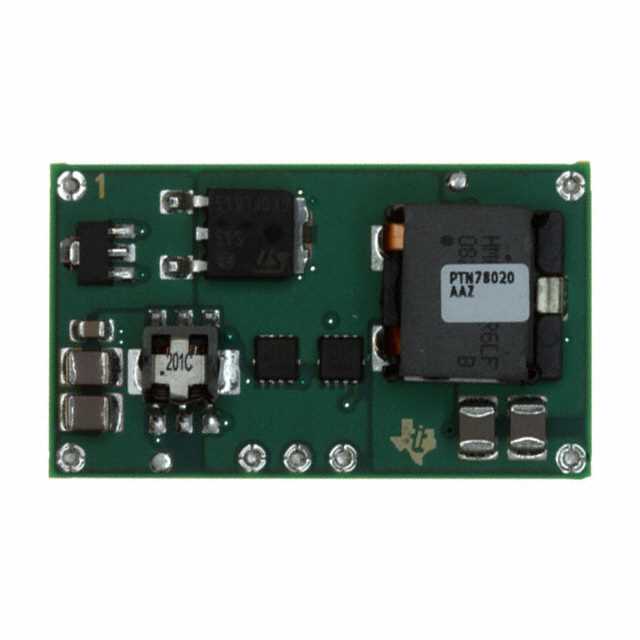

Texas Instruments PTN78020AAZ	Surface Mount	9 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	1	7-SMD Module	29 V	ITE (Commercial)	87 %	OCP OTP UVLO	4 A	Non-Isolated PoL Module	-3 V	-15 V

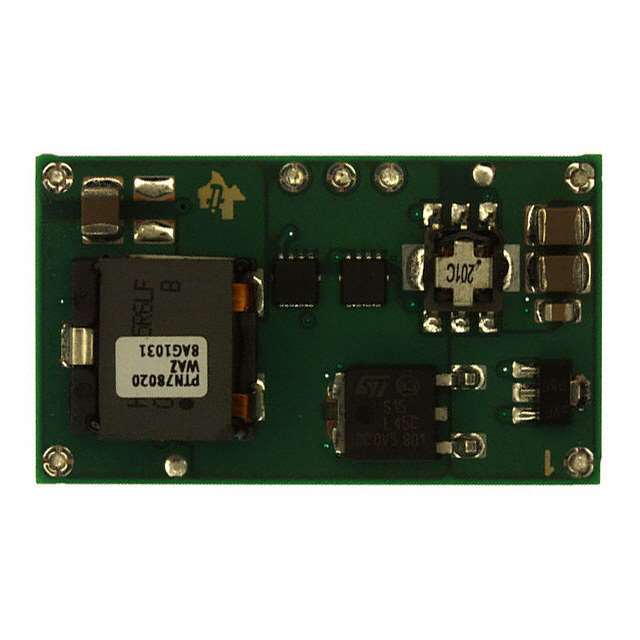

Texas Instruments PTN78020WAZ	Surface Mount	7 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	1	7-SMD Module	36 V	ITE (Commercial)	94 %	OCP OTP Remote On/Off UVLO	6 A	Non-Isolated PoL Module	12.6 V	2.5 V
Texas Instruments PTN78020HAZ	Surface Mount	15 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	1	7-SMD Module	36 V	ITE (Commercial)	96 %	OCP OTP Remote On/Off UVLO	6 A	Non-Isolated PoL Module	22 V	11.85 V

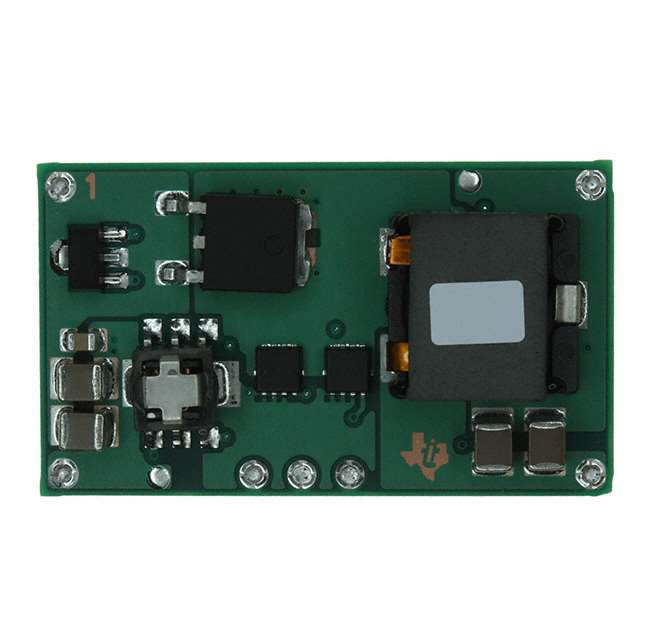

Texas Instruments PTN78020AAH	Through Hole	9 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	9.1 mm	0.87 in	0.36 in	1	7-DIP Module	29 V	ITE (Commercial)	87 %	OCP OTP UVLO	4 A	Non-Isolated PoL Module	-3 V	-15 V

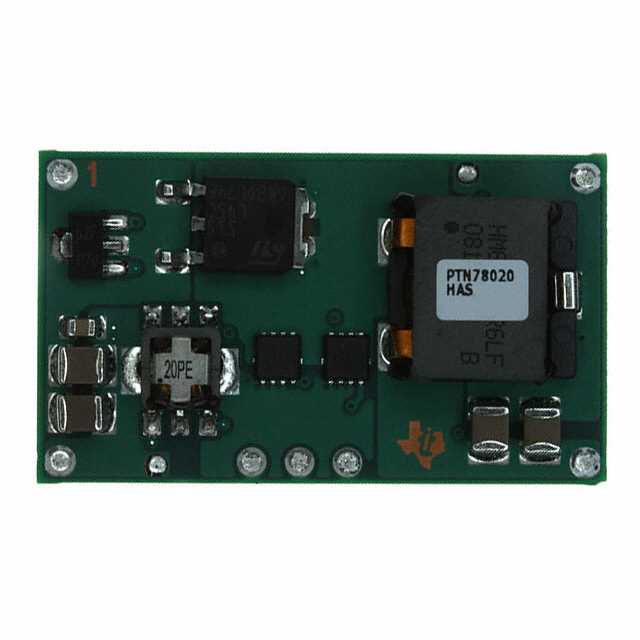

Texas Instruments PTN78020HAS	Surface Mount	15 V	85 °C	-40 °C	1.5 in	22.1 mm	38.1 mm	9.7 mm	0.87 in	0.38 in	1	7-SMD Module	36 V	ITE (Commercial)	96 %	OCP OTP Remote On/Off UVLO	6 A	Non-Isolated PoL Module	22 V	11.85 V

Catalog

4 A, Wide Input, Non-Isolated, Wide Negative Output Adjust Module

Key Features

• 6-A Output CurrentWide-Input Voltage(7 V to 36 V) / (15 V to 36 V)Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V)High Efficiency (Up to 96%)On/Off InhibitUndervoltage LockoutOutput Current LimitOvertemperature ShutdownOperating Temperature: -40°C to 85°CSurface Mount Package AvailableAPPLICATIONSGeneral-Purpose, Industrial Controls,HVAC Systems, Test and Measurement,Medical Instrumentation, AC/DC Adaptors,Vehicles, Marine, and Avionics6-A Output CurrentWide-Input Voltage(7 V to 36 V) / (15 V to 36 V)Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V)High Efficiency (Up to 96%)On/Off InhibitUndervoltage LockoutOutput Current LimitOvertemperature ShutdownOperating Temperature: -40°C to 85°CSurface Mount Package AvailableAPPLICATIONSGeneral-Purpose, Industrial Controls,HVAC Systems, Test and Measurement,Medical Instrumentation, AC/DC Adaptors,Vehicles, Marine, and Avionics

Description

The PTN78020 is a series of high-efficiency, step-down integrated switching regulators (ISRs), that represent the third generation in the evolution of high-performance power modules designed for industrial use. The wide-input voltage range makes these modules suitable for a variety of applications that operate off 12-V, 24-V, and 28-V dc power. In new designs they should be considered in place of the PT6620, PT6650, PT6680, and PT6880 series of single in-line pin (SIP) products. The PTN78020 is smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics. The caseless, double-sided package has excellent thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance. Operating from a wide-input voltage range, the PTN78020 provides high-efficiency, step-down voltage conversion for loads of up to 6 A. The output voltage is set using a single, external resistor. The PTN78020W may be set to any value within the range, 2.5 V to 12.6 V, and the PTN78020H from 11.85 V to 22 V. The output voltage of the PTN78020W can be as little as 2 V lower than the input, allowing operation down to 7 V, with an output voltage of 5 V. The output voltage of the PTN78020H can be as little as 3 V lower than the input, allowing operation down to 15 V, with an output voltage of 12 V. The PTN78020 has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection. The PTN78020 is a series of high-efficiency, step-down integrated switching regulators (ISRs), that represent the third generation in the evolution of high-performance power modules designed for industrial use. The wide-input voltage range makes these modules suitable for a variety of applications that operate off 12-V, 24-V, and 28-V dc power. In new designs they should be considered in place of the PT6620, PT6650, PT6680, and PT6880 series of single in-line pin (SIP) products. The PTN78020 is smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics. The caseless, double-sided package has excellent thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance. Operating from a wide-input voltage range, the PTN78020 provides high-efficiency, step-down voltage conversion for loads of up to 6 A. The output voltage is set using a single, external resistor. The PTN78020W may be set to any value within the range, 2.5 V to 12.6 V, and the PTN78020H from 11.85 V to 22 V. The output voltage of the PTN78020W can be as little as 2 V lower than the input, allowing operation down to 7 V, with an output voltage of 5 V. The output voltage of the PTN78020H can be as little as 3 V lower than the input, allowing operation down to 15 V, with an output voltage of 12 V. The PTN78020 has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection.
