WTB2S Series

Catalog

SENSOR PROXIMITY 36MM PNP

Part	Sensing Method	Ingress Protection	Cable Length	Cable Length	Response Time	Connection Method	Light Source	Output Configuration	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Adjustment Type
SICK, Inc. 1064576	Proximity	IP67	0.2 m	7.87 in	400 µs	Cable with Connector	Red (640nm)	PNP	0.039 "	36 mm	1 mm	1.417 "	10 VDC	30 VDC
SICK, Inc. 1064620	Proximity	IP67	0.2 m	7.87 in	500 µs	Cable with Connector	Red (640nm)	PNP	0.157 "	90 mm	4 mm	3.543 in	10 VDC	30 VDC	Adjustable

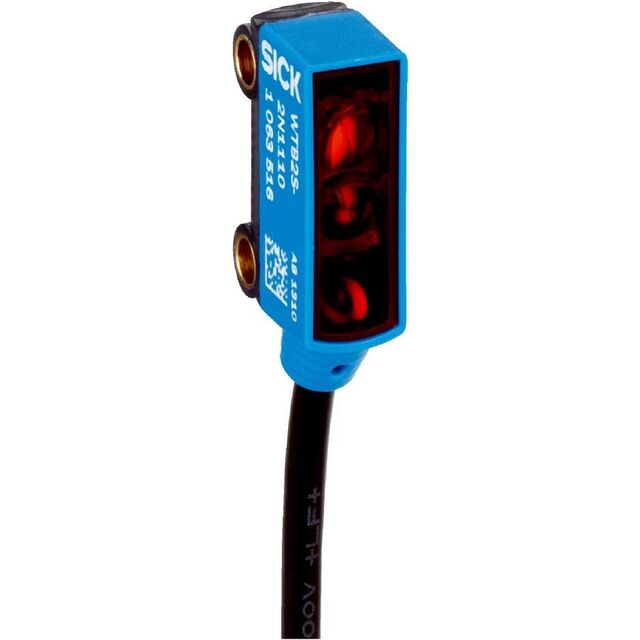

SICK, Inc. 1064578	Proximity	IP67	2 m	78.74 "	400 µs	Cable	Red (640nm)	NPN	0.039 "	36 mm	1 mm	1.417 "	10 VDC	30 VDC
SICK, Inc. 1064606	Proximity	IP67	2 m	78.74 "	500 µs	Cable	Red (640nm)	PNP	0.039 "	66 mm	1 mm	2.598 in	10 VDC	30 VDC
SICK, Inc. 1063516	Proximity	IP67	2 m	78.74 "	400 µs	Cable	Red (640nm)	NPN	0.039 "	18 mm	1 mm	0.709 "	10 VDC	30 VDC
SICK, Inc. 1064249	Proximity	IP67	2 m	78.74 "	400 µs	Cable	Red (640nm)	NPN	0.039 "	18 mm	1 mm	0.709 "	10 VDC	30 VDC
SICK, Inc. WTB2S-2N1151	Proximity	IP67	2 m	78.74 "	500 µs	Cable	Red (640nm)	NPN	0.039 "	15 cm	1 mm	5.906 in	10 VDC	30 VDC	3-Turn Potentiometer Adjustable
SICK, Inc. 1066110	Proximity	IP67	2 m	78.74 "	500 µs	Cable	Red (640nm)	PNP	0.039 "	15 cm	1 mm	5.906 in	10 VDC	30 VDC	3-Turn Potentiometer Adjustable
SICK, Inc. 1064608	Proximity	IP67	0.2 m	7.87 in	500 µs	Cable with Connector	Red (640nm)	PNP	0.039 "	66 mm	1 mm	2.598 in	10 VDC	30 VDC
SICK, Inc. 1064615	Proximity	IP67	0.2 m	7.87 in	500 µs	Cable with Connector	Red (640nm)	PNP	0.157 "	110 mm	4 mm	4.331 "	10 VDC	30 VDC	Adjustable
