150572 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

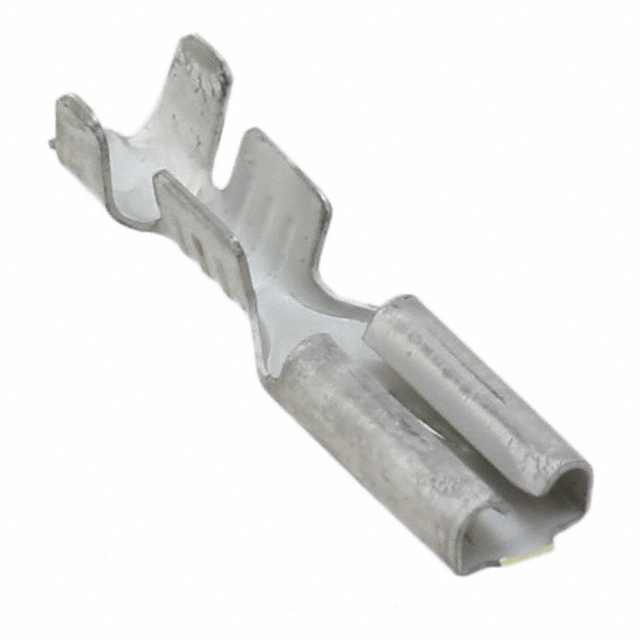

CONN QC RCPT 16-20AWG 0.110
| Part | Mounting Type | Length - Overall [x] | Length - Overall [x] | Gender | Contact Finish | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Wire Gauge [Min] | Wire Gauge [Max] | Tab Length | Tab Length | Terminal Type | Tab Thickness | Tab Thickness | Contact Material | Tab Width | Tab Width | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 15.37 mm | 0.605 " | Female | Tin | Crimp | 0.08 in | 3.05 mm | 0.12 in | 2.03 mm | 16 AWG | 20 AWG | 6.35 mm | 0.25 in | Standard | 0.032 in | 0.81 mm | Brass | 2.79 mm | 0.11 " | Non-Insulated |
