R14157 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

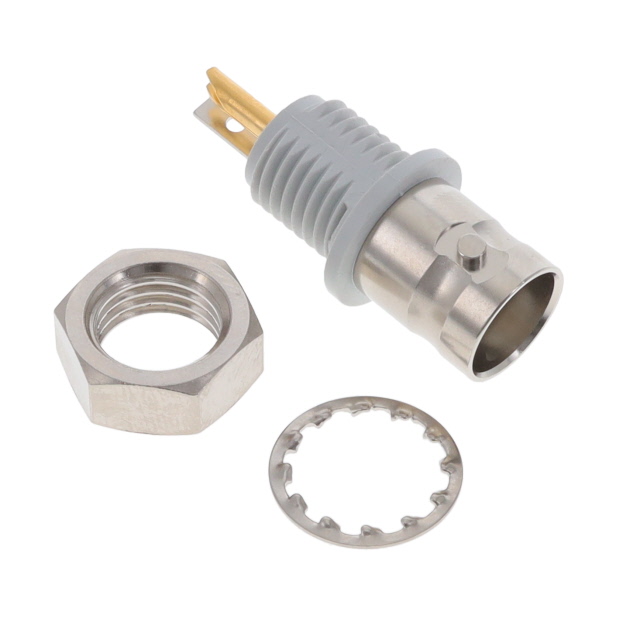

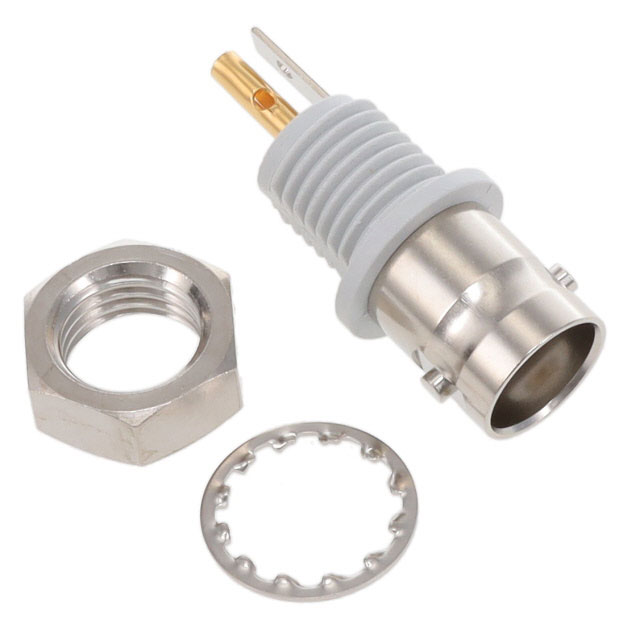

BNC / INSULATED BULKHEAD JACK
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Center Contact Plating | Body Material | Impedance | Mounting Type | Number of Ports | Connector Type | Frequency - Max [Max] | Connector Style | Contact Termination | Shield Termination | Mounting Feature | Center Contact Material | Housing Color | Fastening Type | Includes | Body Finish | Mating Cycles | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -35 °C | 70 °C | Polyphenylene Ether Modified (mPPE) | 500 V | Gold | Polyphenylene Ether Modified (mPPE) | 50 Ohms | Panel Mount | 1 | Female Socket Jack | 1.5 GHz | BNC | Solder Cup | Solder Tag | Bulkhead - Rear Side Nut | Brass | Silver | Bayonet Lock | ||||
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Gold | Brass | 50 Ohms | Panel Mount | 1 | Female Socket Jack | 4 GHz | BNC | Solder Cup | Solder Tag | Bulkhead - Rear Side Nut | Beryllium Copper | Silver | Bayonet Lock | 1 Connector 1 Lockwasher 1 Nut | Nickel | 500 | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Gold | Brass | 50 Ohms | Panel Mount | 1 | Female Socket Jack | 4 GHz | BNC | Solder Cup | Solder | Bulkhead - Rear Side Nut | Beryllium Copper | Silver | Bayonet Lock | Nickel | 500 | ||
 Radiall USA, Inc. | -65 ░C | 165 °C | Polyphenylene Ether Modified (mPPE) | 500 V | Gold | Polyphenylene Ether Modified (mPPE) | 50 Ohms | Panel Mount | 1 | Female Socket Jack | 4 GHz | BNC | Solder Cup | Solder Tag | Bulkhead - Rear Side Nut | Beryllium Copper | Silver | Bayonet Lock | 500 | |||
Radiall USA, Inc. | ||||||||||||||||||||||
Radiall USA, Inc. | -65 ░C | 165 °C | Polyphenylene Ether Modified (mPPE) | 500 V | Gold | Polyphenylene Ether Modified (mPPE) | 50 Ohms | Panel Mount | 1 | Female Socket Jack | 4 GHz | BNC | Solder Cup | Solder Tag | Bulkhead - Rear Side Nut | Beryllium Copper | Silver | Bayonet Lock | 500 | |||
Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Gold | Brass | 50 Ohms | Panel Mount | 1 | Female Socket Jack | 4 GHz | BNC | Solder Cup | Solder Tag | Bulkhead - Rear Side Nut | Beryllium Copper | Silver | Bayonet Lock | Nickel | Extended Insulation |
