67997 Series

Catalog

CONN HEADER VERT 4POS 2.54MM

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Insulation Height	Insulation Height	Contact Type	Current Rating (Amps)	Shrouding	Number of Rows	Contact Finish - Post	Contact Material	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Contact Finish - Mating	Number of Positions

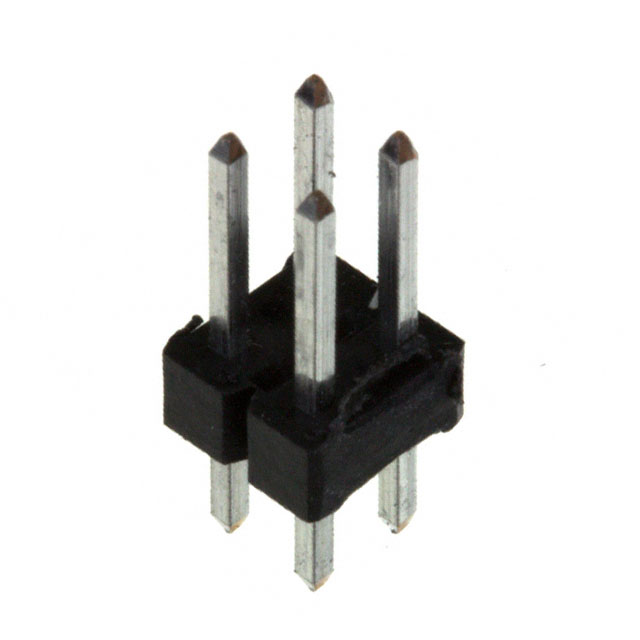

Amphenol ICC (FCI) 67997-404HLF	2.54 çm	100 çin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2	Tin	Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm	4
Amphenol ICC (FCI) 67997-436HLF	2.54 çm	100 çin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2	Tin	Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm	36
Amphenol ICC (FCI) 67997-260H	0.38 µm	15 µin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2		Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm	60	Gold or Gold GXT™
Amphenol ICC (FCI) 67997-438HLF	2.54 çm	100 çin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2	Tin	Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm	38
Amphenol ICC (FCI) 67997-218	0.38 µm	15 µin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin		Unshrouded	2		Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull			Solder	0.23 in	5.84 mm	18	Gold or Gold GXT™

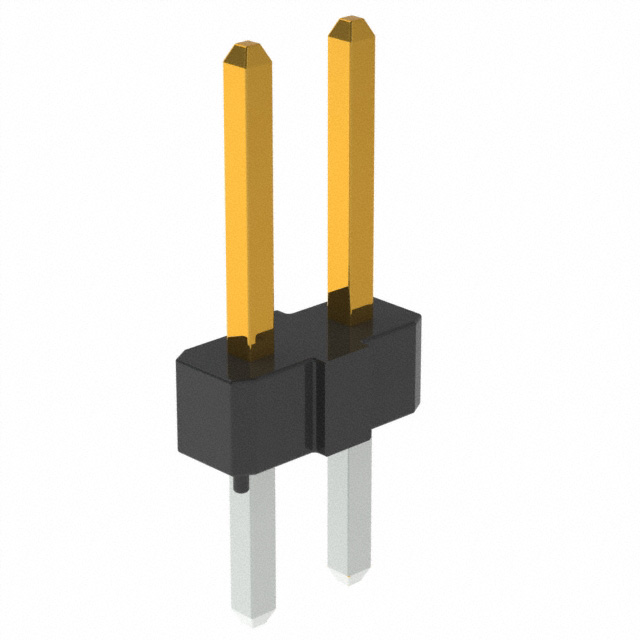

Amphenol ICC (FCI) 67997-500H	0.38 µm	15 µin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2		Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm		Gold or Gold GXT™	Cuttable
Amphenol ICC (FCI) 67997-432HLF	2.54 çm	100 çin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2	Tin	Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm
Amphenol ICC (FCI) 67997-372HLF	1.27 µm	50 µin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2		Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm	72	Gold or Gold GXT™
Amphenol ICC (FCI) 67997-110HTLF	0.76 Ám	30 Áin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2		Phosphor Bronze	Header	0.12 in	3.05 mm	All	0.1 in	2.54 mm	0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm	10	Gold or Gold GXT™

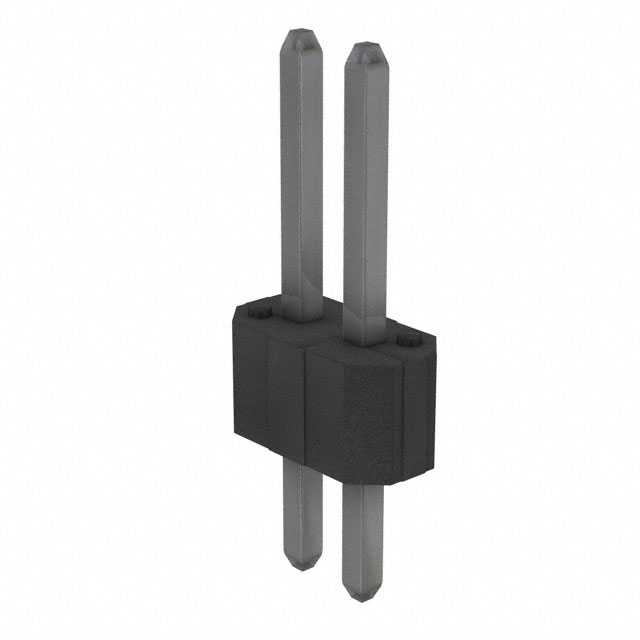

Amphenol ICC (FCI) 67997-402H	2.54 çm	100 çin	Through Hole	2.54 mm	0.1 in	Square	0.1 in	2.54 mm	Male Pin	3 A	Unshrouded	2		Phosphor Bronze	Header	0.12 in	3.05 mm	All			0.45 "	11.43 mm	UL94 V-0	Black	Push-Pull	-65 ░C	130 °C	Solder	0.23 in	5.84 mm	2
