438-041 Series
Manufacturer: EDAC Inc.
Beta
⌘K

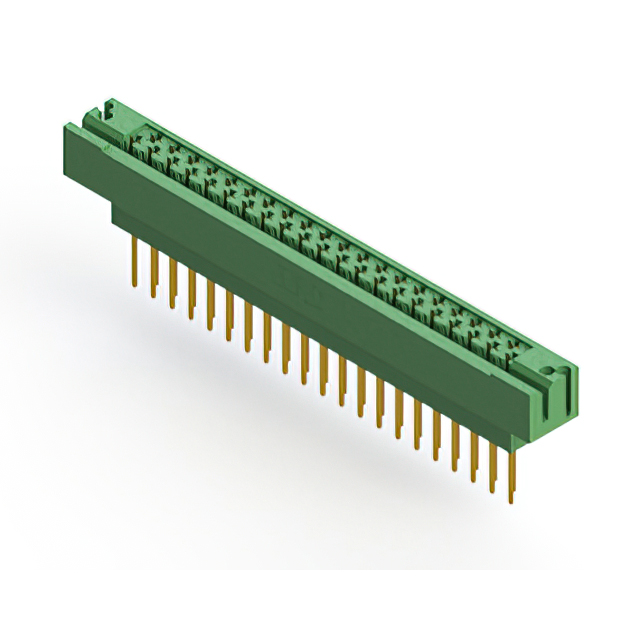

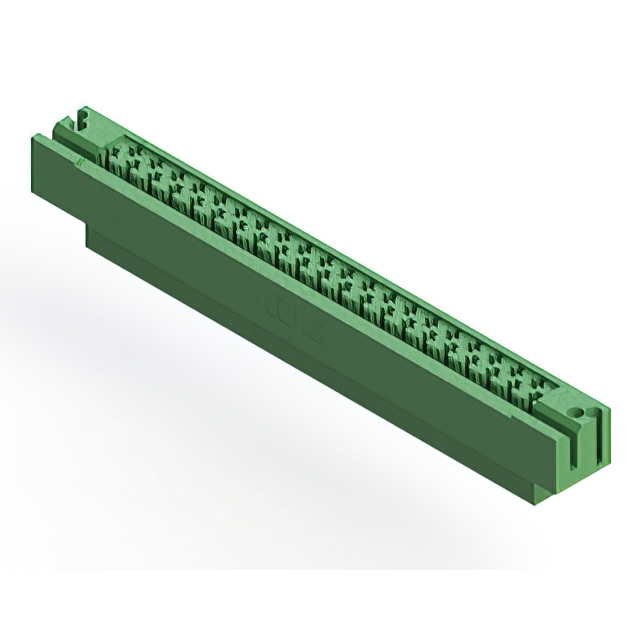

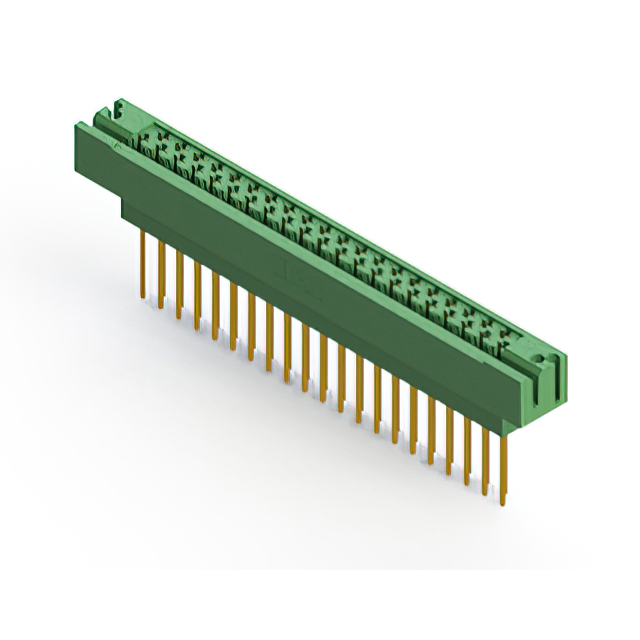

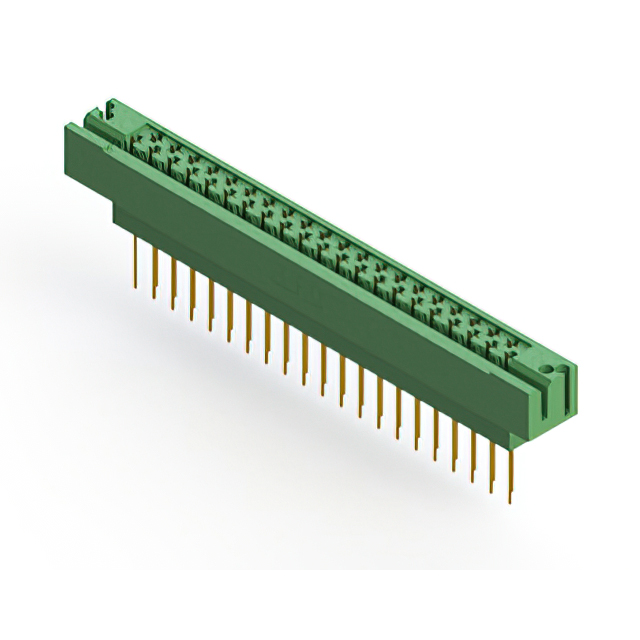

CONN CARDEDGE HSG 41POS .200 2PC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Note | Material - Insulation | Pitch | Pitch | Color | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness | Card Thickness | Number of Positions | Card Type | Termination Rows [custom] | Termination | Gender | Contact Material | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -65 ░C | 125 °C | UL94 V-0 | Contacts Not Included | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 2.36 mm | 0.093 " | 41 | Non Specified - Dual Edge | |||||||||
 EDAC Inc. | -65 ░C | 125 °C | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 1.57 mm | 0.062 in | 41 | Non Specified - Dual Edge | 2 | Solder | Female | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Gold | ||
 EDAC Inc. | -65 ░C | 125 °C | UL94 V-0 | Contacts Not Included | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 1.57 mm | 0.062 in | 41 | Non Specified - Dual Edge | |||||||||
 EDAC Inc. | -65 ░C | 125 °C | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 2.36 mm | 0.093 " | 41 | Non Specified - Dual Edge | 2 | Solder | Female | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Gold | ||
 EDAC Inc. | -65 ░C | 125 °C | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 2.36 mm | 0.093 " | 41 | Non Specified - Dual Edge | 2 | Solder Eyelet(s) | Female | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Gold | ||
 EDAC Inc. | -65 ░C | 125 °C | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 1.57 mm | 0.062 in | 41 | Non Specified - Dual Edge | 2 | Solder Eyelet(s) | Female | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Gold | ||
 EDAC Inc. | -65 ░C | 125 °C | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 2.36 mm | 0.093 " | 41 | Non Specified - Dual Edge | 2 | Wire Wrap | Female | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Gold | ||
 EDAC Inc. | -65 ░C | 125 °C | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 1.57 mm | 0.062 in | 41 | Non Specified - Dual Edge | 2 | Wire Wrap | Female | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Gold | ||
 EDAC Inc. | -65 ░C | 125 °C | Diallyl Phthalate (DAP) | 5.08 mm | 0.2 in | Green | 3.25 mm | 0.128 " | 1.57 mm | 0.062 in | 41 | Non Specified - Dual Edge | 2 | Wire Wrap | Female | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Panel Mount Through Hole | Gold |
