PEC15 Series

Manufacturer: Sullins Connector Solutions

Catalog

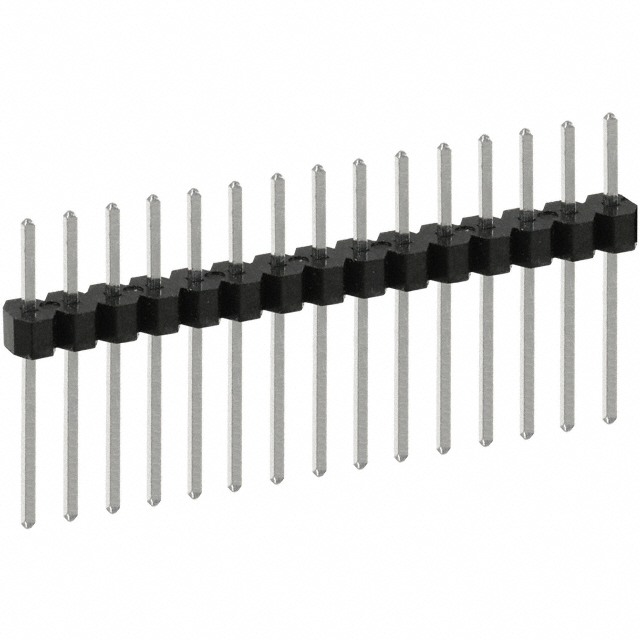

CONN HEADER VERT 15POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Fastening Type	Connector Type	Insulation Height	Insulation Height	Contact Finish - Post	Shrouding	Contact Shape	Insulation Color	Number of Positions Loaded	Contact Material	Current Rating (Amps)	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Termination	Style	Mounting Type	Number of Rows	Contact Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PEC15SAHN	2.54 µm	100 µin	0.1 "	2.54 mm	15	-65 ░C	125 °C	UL94 V-0	0.82 in	20.83 mm	Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Through Hole	1	Male Pin	29.21 mm	1.15 in
Sullins Connector Solutions PEC15SACN	2.54 µm	100 µin	0.1 "	2.54 mm	15	-65 ░C	125 °C	UL94 V-0	0.32 in	8.13 mm	Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Through Hole	1	Male Pin	16.51 mm	0.65 in
Sullins Connector Solutions PEC15SAFN	2.54 µm	100 µin	0.1 "	2.54 mm	15	-65 ░C	125 °C	UL94 V-0			Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Through Hole	1	Male Pin	24.13 mm	0.95 in	15.75 mm	0.62 "
Sullins Connector Solutions PEC15SADN	2.54 µm	100 µin	0.1 "	2.54 mm	15	-65 ░C	125 °C	UL94 V-0	0.42 in	10.67 mm	Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Through Hole	1	Male Pin					19.05 mm	0.75 in
Sullins Connector Solutions PEC15SBAN	2.54 µm	100 µin	0.1 "	2.54 mm	15	-65 ░C	125 °C	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Header Breakaway	0.14 in	3.56 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Right Angle Through Hole	1	Male Pin
Sullins Connector Solutions PEC15DFAN	2.54 µm	100 µin	0.1 "	2.54 mm	30	-65 ░C	125 °C	UL94 V-0	0.12 in	3.05 mm	Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.318 in	8.08 mm	Solder	Board to Board Cable	Through Hole		Male Pin					13.67 mm	0.538 in	0.1 in	2.54 mm	2
Sullins Connector Solutions PEC15DAGN	2.54 µm	100 µin	0.1 "	2.54 mm	30	-65 ░C	125 °C	UL94 V-0	0.72 "	18.29 mm	Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Through Hole		Male Pin	26.67 mm	1.05 in					0.1 in	2.54 mm	2
Sullins Connector Solutions PEC15DBBN	2.54 µm	100 µin	0.1 "	2.54 mm	30	-65 ░C	125 °C	UL94 V-0			Push-Pull	Header Breakaway			Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Right Angle Through Hole		Male Pin			5.08 mm	0.2 "			0.1 in	2.54 mm	2	6.1 mm	0.24 in
Sullins Connector Solutions PEC15SFAN	2.54 µm	100 µin	0.1 "	2.54 mm	15	-65 ░C	125 °C	UL94 V-0	0.12 in	3.05 mm	Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.318 in	8.08 mm	Solder	Board to Board Cable	Through Hole	1	Male Pin					13.67 mm	0.538 in
Sullins Connector Solutions PEC15SAGN	2.54 µm	100 µin	0.1 "	2.54 mm	15	-65 ░C	125 °C	UL94 V-0	0.72 "	18.29 mm	Push-Pull	Header Breakaway	0.1 in	2.54 mm	Tin	Unshrouded	Square	Black	All	Phosphor Bronze	3 A	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	0.23 in	5.84 mm	Solder	Board to Board Cable	Through Hole	1	Male Pin	26.67 mm	1.05 in
