XI3030 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED ROYAL BLUE 460NM 1212

Part	Wavelength [Max]	Wavelength	Wavelength [Min]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Mounting Type	Color	Viewing Angle	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Temperature - Test	Current - Test	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]

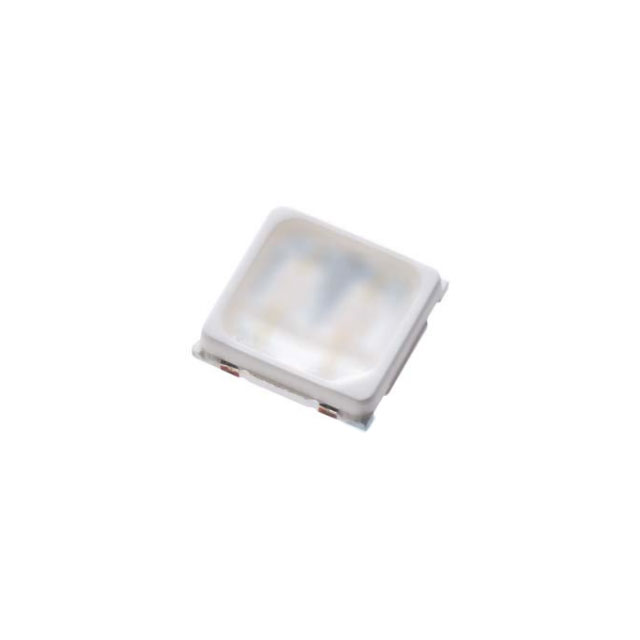

Everlight Electronics Co Ltd XI3030P/B3C-D5565L6M360681Z15/2N	465 nm	460 nm	455 nm	200 mA	6.4 V	0.026 in	0.66 mm	Surface Mount	Royal Blue	120 °	19 lm/W	3030 Metric	1212	25 °C	150 mA	1212	3 mm	0.118 in	3 mm	0.118 "
Everlight Electronics Co Ltd XI3030P/RK3C-D1025PAR160681Z15/2N	625 nm	618 nm	610 nm	200 mA	6.4 V	0.026 in	0.66 mm	Surface Mount	Red	120 °	48 lm/W	3030 Metric	1212	25 °C	150 mA	1212	3 mm	0.118 in	3 mm	0.118 "	46 lm	36 lm	55 lm
Everlight Electronics Co Ltd XI3030P/D3C-P4575S1S621271Z15/2N		660 nm		200 mA	2.4 V	0.026 in	0.66 mm	Surface Mount	Red			3030 Metric	1212		150 mA	1212	3 mm	0.118 in	3 mm	0.118 "	100 mW

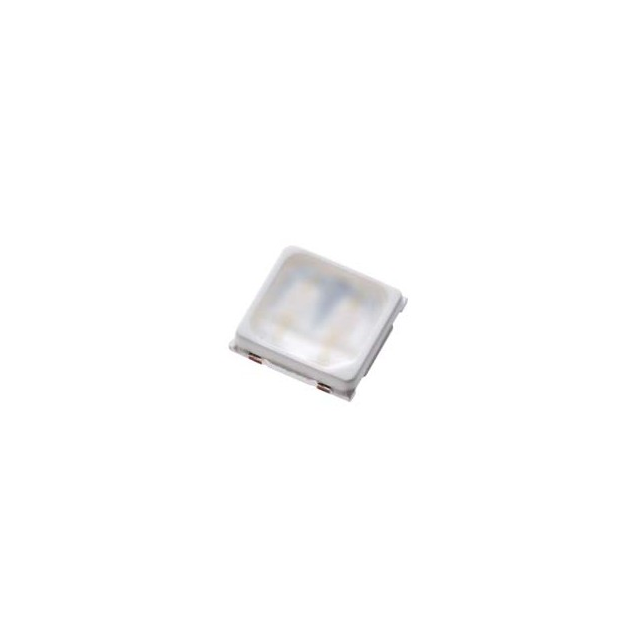

Everlight Electronics Co Ltd XI3030P/F3C-P1545R5S115251Z15/2N	745 nm	730 nm	715 nm	200 mA	1.95 V	0.026 in	0.66 mm	Surface Mount	Red			3030 Metric	1212		150 mA	1212	3 mm	0.118 in	3 mm	0.118 "	70 mW
Everlight Electronics Co Ltd XI3030P/GK3C-D4055S7T260681Z15/2N	555 nm	548 nm	540 nm	200 mA	6.4 V	0.026 in	0.66 mm	Surface Mount	Green	120 °		3030 Metric	1212	25 °C	150 mA	1212	3 mm	0.118 in	3 mm	0.118 "		160 lm	200 lm
Everlight Electronics Co Ltd XI3030P/B3C-D5060T2T625312Z15/2N	460 nm	455 nm	450 nm		2.8 V	0.026 in	0.66 mm	Surface Mount	Royal Blue			3030 Metric	1212		150 mA	1212	3 mm	0.118 in	3 mm	0.118 "	190 mW
