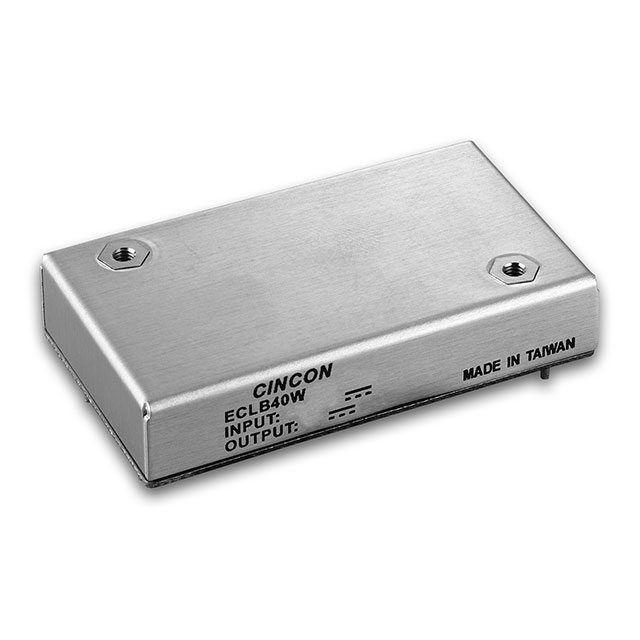

ECLB40 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER +/-24V 40W

Part	Control Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Voltage - Output 2	Voltage - Input (Min) [Min]	Standard Number	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Package / Case	Approval Agency	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Efficiency	Mounting Type	Current - Output (Max) [Max]
Cincon Electronics Co. LTD ECLB40W-110D24N	Active Low Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	833 mA	833 mA	2	-24 V	43 V	50155 60950-1	24 V	3000 V	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE cURus	ITE (Commercial) Railway	160 V	40 W	89 %	Through Hole
Cincon Electronics Co. LTD ECLB40W-48D15	Active High Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	1.333 A	1.333 A	2	-15 V	18 V	60950-1	15 V	1.5 kV	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE	ITE (Commercial)	75 V	40 W	90 %	Through Hole
Cincon Electronics Co. LTD ECLB40W-48S15	Active High Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm			1		18 V	60950-1	15 V	1.5 kV	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE	ITE (Commercial)	75 V	40 W	90.5 %	Through Hole	2.666 A

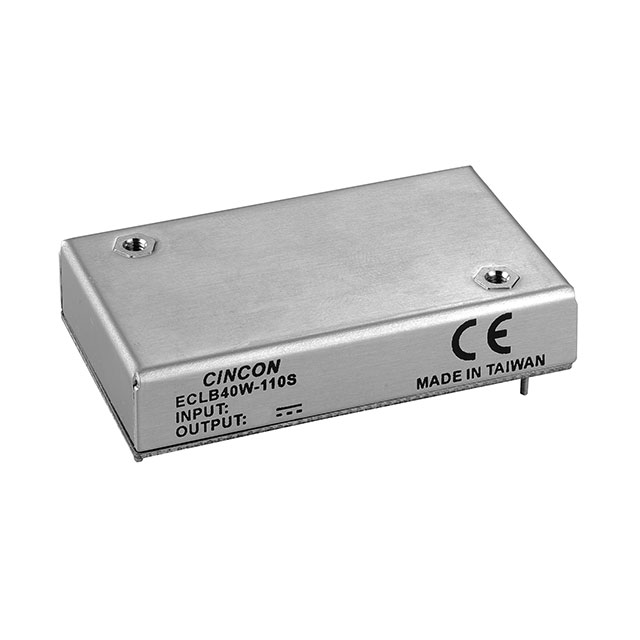

Cincon Electronics Co. LTD ECLB40W-110S15N	Active Low Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm			1		43 V	50155 60950-1	15 V	3000 V	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE cURus	ITE (Commercial) Railway	160 V	40 W	91 %	Through Hole	2.666 A
Cincon Electronics Co. LTD ECLB40W-110S05	Active High Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm			1		43 V	50155 60950-1	5 V	3000 V	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE cURus	ITE (Commercial) Railway	160 V	40 W	88.5 %	Through Hole	8 A
Cincon Electronics Co. LTD ECLB40W-48S33	Active High Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm			1		18 V	60950-1	3.3 V	1.5 kV	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE	ITE (Commercial)	75 V	33 W	90 %	Through Hole	10 A
Cincon Electronics Co. LTD ECLB40W-24S15	Active High Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm			1		9 V	60950-1	15 V	1.5 kV	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE	ITE (Commercial)	36 V	40 W	90.5 %	Through Hole	2.666 A
Cincon Electronics Co. LTD ECLB40W-24S12	Active High Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm			1		9 V	60950-1	12 V	1.5 kV	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE	ITE (Commercial)	36 V	40 W	91 %	Through Hole	3.333 A
Cincon Electronics Co. LTD ECLB40W-48S12	Active High Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm			1		18 V	60950-1	12 V	1.5 kV	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE	ITE (Commercial)	75 V	40 W	90.5 %	Through Hole	3.333 A
Cincon Electronics Co. LTD ECLB40W-110D15N	Active Low Enable	1.2 in	30.5 mm	0.4 "	2.05 in	52 mm	10.2 mm	1.333 A	1.333 A	2	-15 V	43 V	50155 60950-1	15 V	3000 V	-40 °C	85 °C	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	6-DIP Module	CE cURus	ITE (Commercial) Railway	160 V	40 W	88.5 %	Through Hole
