M2019BB Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Features	Mounting Type	Voltage Rating - AC	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Circuit	Illumination	Ingress Protection

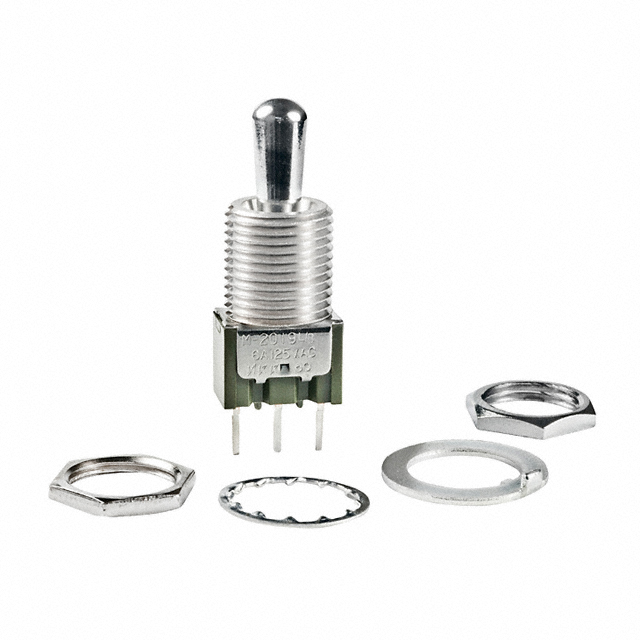

NKK Switches M2019BB1W03	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	Panel Mount	125 V	11.5 mm	12.5 mm	M12 x 1	3 A 6 A	Standard Round	30 V	85 °C	-30 ░C	On-Off-Mom	PC Pin	SPDT	Non-Illuminated
NKK Switches M2019BB3A01	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	Panel Mount	125 V	11.5 mm	12.5 mm	M12 x 1	3 A 6 A	Standard Round	30 V	85 °C	-30 ░C	On-Off-Mom	Solder Lug	SPDT	Non-Illuminated	IP67 - Dust Tight Waterproof
NKK Switches M2019BB1G03	Brass Chrome Plated	50000 Cycles	Epoxy Sealed Terminals	Panel Mount	28 V	11.5 mm	12.5 mm	M12 x 1	0.4 VA	Standard Round	28 V	85 °C	-30 ░C	On-Off-Mom	PC Pin	SPDT	Non-Illuminated
NKK Switches M2019BB1W03-AT402S	Brass Chrome Plated	25000 Steps		Panel Mount	125 V	11.5 mm	12.5 mm	M12 x 1	3 A 6 A	Standard Round	30 V	85 °C	-30 ░C	On-Off-Mom	PC Pin	SPDT	Non-Illuminated

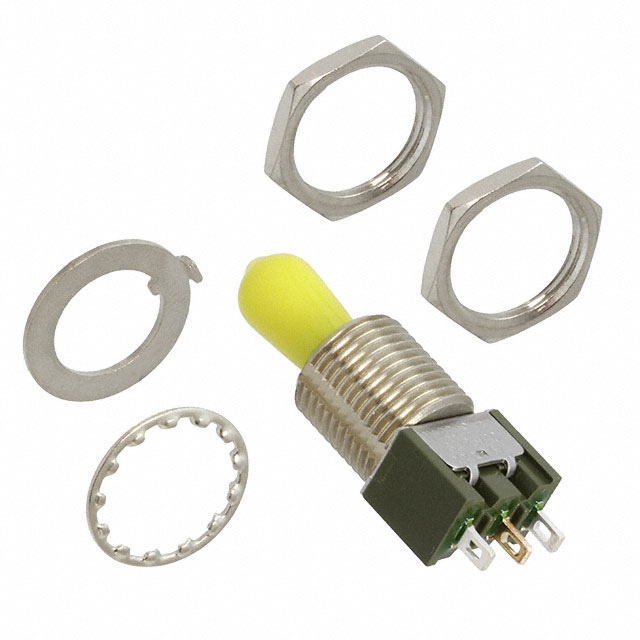

NKK Switches M2019BB1W01-RE	Brass Chrome Plated	25000 Steps	Yellow Cap	Panel Mount	125 V	11.5 mm	12.5 mm	M12 x 1	3 A 6 A	Standard Round	30 V	85 °C	-30 ░C	On-Off-Mom	Solder Lug	SPDT	Non-Illuminated

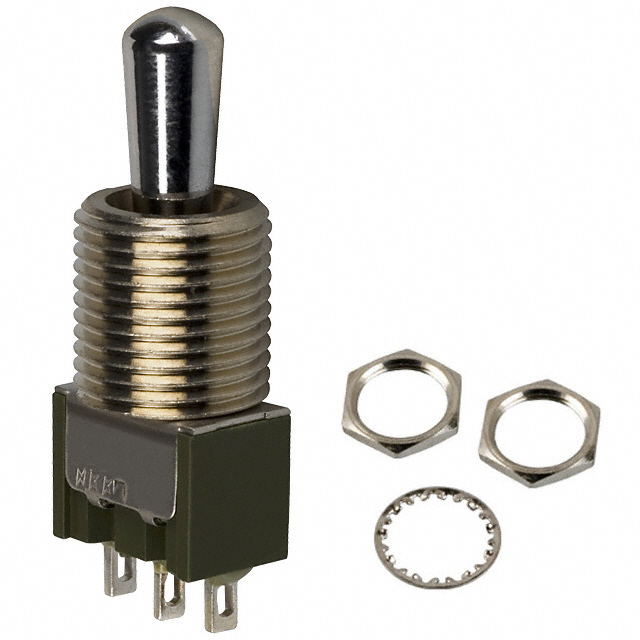

NKK Switches M2019BB1W01	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	Panel Mount	125 V	11.5 mm	12.5 mm	M12 x 1	3 A 6 A	Standard Round	30 V	85 °C	-30 ░C	On-Off-Mom	Solder Lug	SPDT	Non-Illuminated
