MF-SM Series

Catalog

PTC RESETTABLE FUSE 0.5A(HOLD) 1A(TRIP) 60V 40A 1.7W 4S 0.35OHM SMD SOLDER PAD 7.98 X 5.44 X 3.18MM T/R AUTOMOTIVE AEC-Q200

Part	Approval Agency	Resistance - Post Trip (R1) (Max) [Max] [custom]	Resistance - Initial (Ri) (Min) [Min]	Type	Time to Trip	Operating Temperature [Max]	Operating Temperature [Min]	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Qualification	Current - Hold (Ih) (Max) [Max]	Package / Case	Grade	Current - Max [Max]	Voltage - Max [Max]	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max)	Resistance - Initial (Ri) (Min)

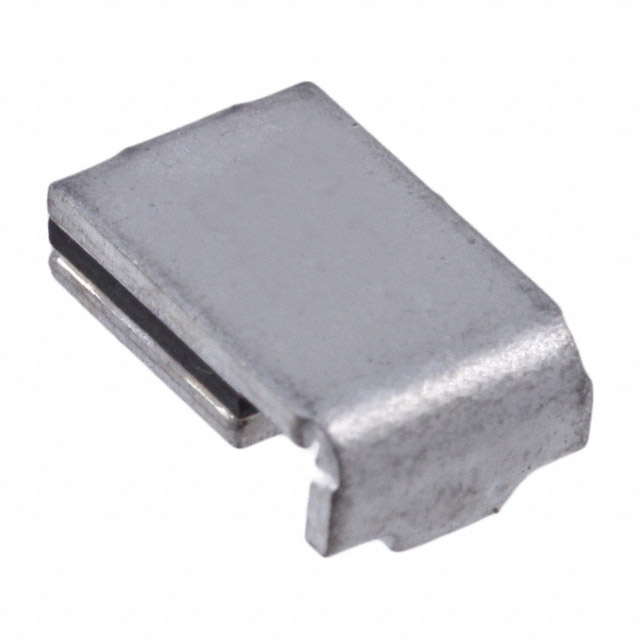

Bourns Inc. MF-SM050-2	cURus TUV	1.4 Ohms	350 mOhms	Polymeric	4 s	85 °C	-40 C	0.125 in	3.18 mm	0.287 "	5.44 mm	0.214 "	7.31 mm	Surface Mount	AEC-Q200	500 mA	2-SMD	Automotive	40 A	60 V	1 A

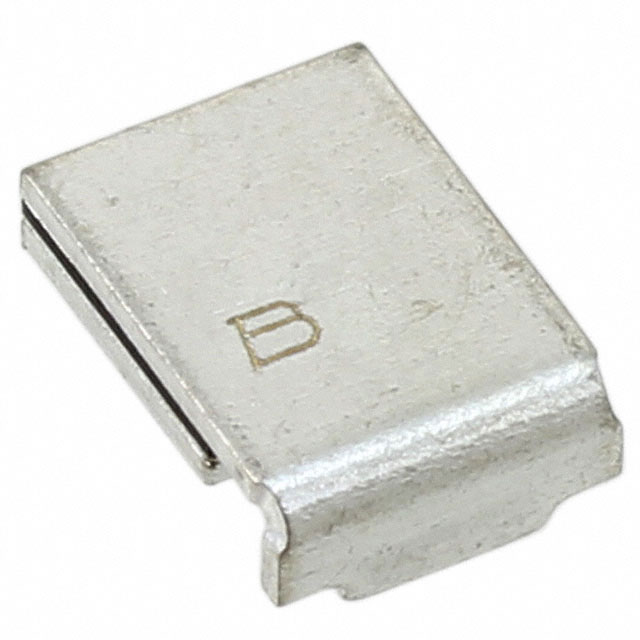

Bourns Inc. MF-SM185/33-2	cURus TUV		40 mOhms	Polymeric	5 s	85 °C	-40 C	0.118 in	3 mm	0.344 in	6.71 mm	0.264 "	8.75 mm	Surface Mount	AEC-Q200	1.8 A	2-SMD	Automotive	40 A	33 V	3.6 A	150 mOhms
Bourns Inc. MF-SM100-2-006	cURus TUV		0.12 Ohms	Polymeric	500 ms	85 °C	-40 C	0.118 in	3 mm	0.287 "	5.44 mm	0.214 "	7.31 mm	Surface Mount	AEC-Q200	1.1 A	2-SMD	Automotive	80 A	30 V	2.2 A	480 mOhms
Bourns Inc. MF-SM260-2	cURus TUV		25 mOhms	Polymeric	20 s	85 °C	-40 C	0.118 in	3 mm	0.287 "	5.44 mm	0.214 "	7.31 mm	Surface Mount	AEC-Q200	2.6 A	2-SMD	Automotive	100 A	6 V	5.2 A	75 mOhms
Bourns Inc. MF-SM300-2	cURus TUV		15 mOhms	Polymeric	35 s	85 °C	-40 C	0.118 in	3 mm	0.287 "	5.44 mm	0.214 "	7.31 mm	Surface Mount	AEC-Q200	3 A	2-SMD	Automotive	100 A	6 V	6 A	48 mOhms
Bourns Inc. MF-SM030-2-99	cURus TUV		900 mOhms	Polymeric	3 s	85 °C	-40 C	0.125 in	3.18 mm					Surface Mount	AEC-Q200	300 mA	2-SMD	Automotive	40 A	60 V	600 mA	4.8 Ohms
Bourns Inc. MF-SM125-2	cURus TUV		70 mOhms	Polymeric	2 s	85 °C	-40 C	0.118 in	3 mm	0.287 "	5.44 mm	0.214 "	7.31 mm	Surface Mount	AEC-Q200		2-SMD	Automotive	100 A	15 V	2.5 A	250 mOhms	1.25 A
Bourns Inc. MF-SM075/60-2-99	cURus TUV		230 mOhms	Polymeric	0.3 s	85 °C	-40 C	0.125 in	3.18 mm	0.287 "	5.44 mm	0.214 "	7.31 mm	Surface Mount	AEC-Q200	750 mA	2-SMD	Automotive	10 A	60 V	1.5 A	1 Ohms

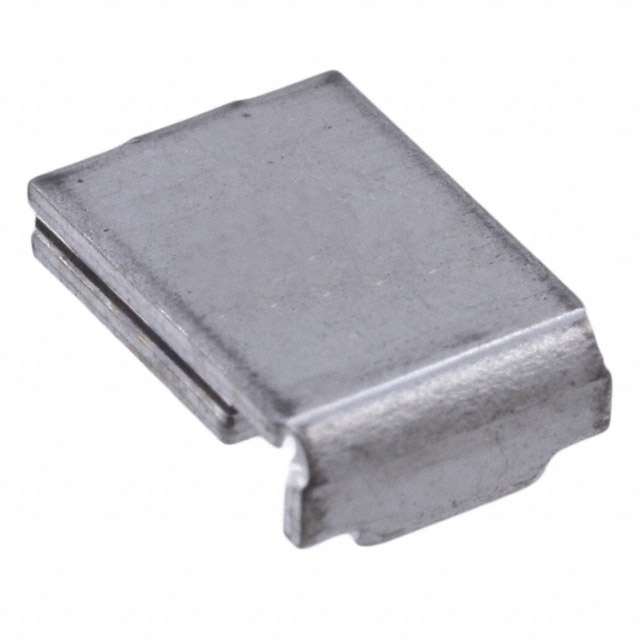

Bourns Inc. MF-SM250-2	cURus TUV		24 mOhms	Polymeric	25 s	85 °C	-40 C	0.118 in	3 mm	0.344 in	6.71 mm	0.264 "	8.75 mm	Surface Mount	AEC-Q200		2-SMD	Automotive	100 A	15 V	5 A	85 mOhms	2.5 A

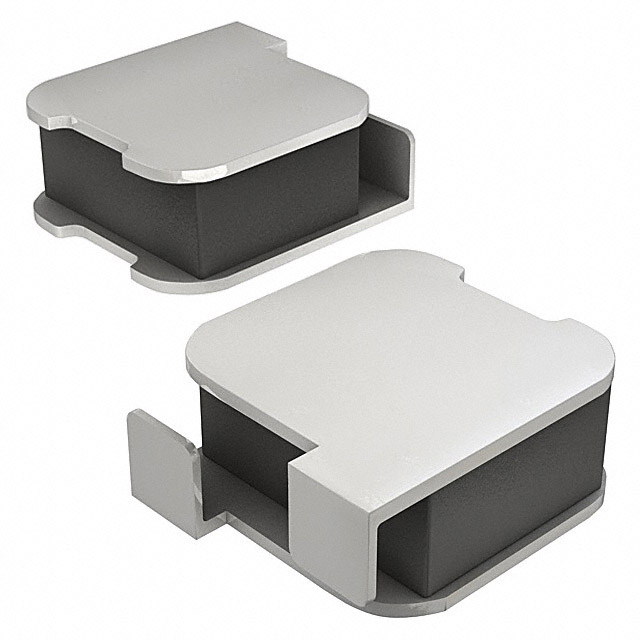

Bourns Inc. MF-SM013/250V-2	cURus TUV			Polymeric		85 °C	-40 C	0.402 "	10.2 mm	0.35 in	7.2 mm	0.283 in	8.9 mm	Surface Mount		130 mA	2-SMD		3 A	60 V		16 Ohms		4 Ohms
