HLMP-1600 Series

Catalog

LED CBI 3MM RED RA HSG

Part	Lens Type	Configuration	Color	Voltage Rating	Current	Viewing Angle	Mounting Type	Lens Style	Wavelength - Peak	Millicandela Rating	Lens Size	Lens Size	Lens Color	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height (Max) [Max] [z]	Package / Case	Lens Transparency	Wavelength - Dominant	Current - Test
Broadcom Limited HLMP-1600-D00A1	Diffused Tinted	Single	Red	5 V	10 mA	60 °	Through Hole Right Angle	Round with Domed Top	635 nm	2.1 mcd	3 mm	T-1

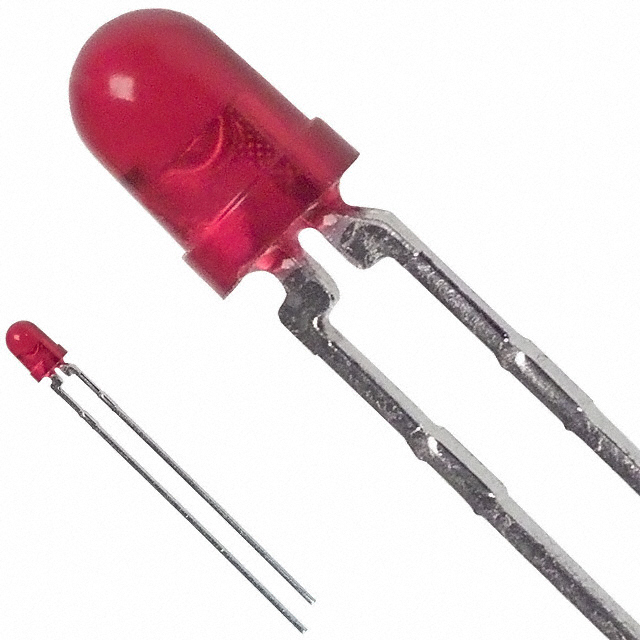

Broadcom Limited HLMP-1600		Standard	Red			60 °	Through Hole	Round with Domed Top	635 nm	2.1 mcd	3 mm	T-1	Red	5 V	T-1	6.35 mm	Radial	Diffused	626 nm	10 mA

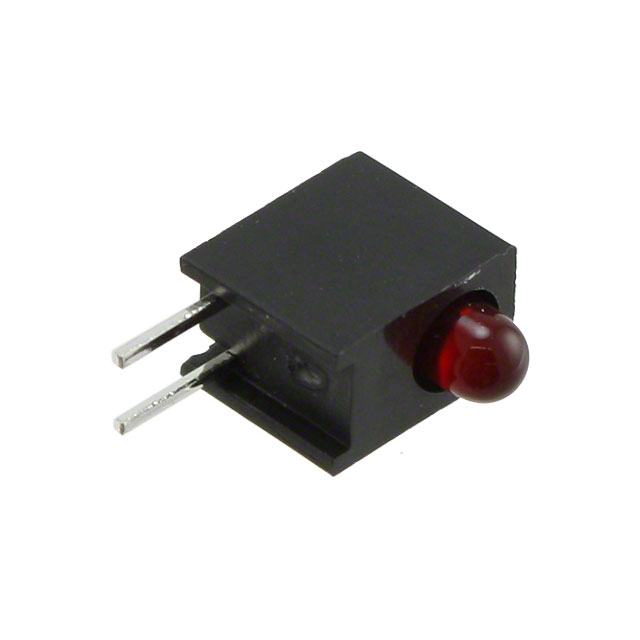

Broadcom Limited HLMP-1600-D00A2	Diffused Tinted	Single	Red	5 V	10 mA	60 °	Through Hole Right Angle	Round with Domed Top	635 nm	2.1 mcd	3 mm	T-1
