NCP120 Series

LDO Regulator, 150 mA, Ultra-Low Dropout, High PSRR, with Bias Rail

Catalog

LDO Regulator, 150 mA, Ultra-Low Dropout, High PSRR, with Bias Rail

Part	Voltage - Output (Min/Fixed)	Mounting Type	Protection Features	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Voltage - Input (Max) [Max]	Package / Case	PSRR [Max]	PSRR [Min]	Number of Regulators	Output Type	Supplier Device Package	Output Configuration	Voltage Dropout (Max) [Max]
ON Semiconductor NCP120BMX110TCG	1.1 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120BMX150TCG	1.5 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120BMX180TCG	1.8 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120AMX210TCG	2.1 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120AMX150TCG	1.5 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120AMX080TCG	0.8 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120AMX120TCG	1.2 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120BMX105TCG	1.05 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120AMX105TCG	1.05 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V
ON Semiconductor NCP120BMX115TCG	1.15 V	Surface Mount	Over Current Over Temperature Under Voltage Lockout (UVLO)	Enable	85 °C	-40 °C	150 mA	5.5 V	6-XFDFN Exposed Pad	80 dB	70 dB	1	1.81 mOhm	6-XDFN (1.2x1.2)	Positive	0.075 V

Catalog

LDO Regulator, 150 mA, Ultra-Low Dropout, High PSRR, with Bias Rail

Key Features

• Ultra-Low Dropout of Typ. 37mV

• Fixed Output Voltage options from 0.8V to 2.1V

• 37 mV typical dropout at the full 150 mA load.

• Guaranteed Output Current from 0mA to 150mA

• 0.5% Typical Output Voltage Accuracy

• Output Current in Excess of 150mA

• Output Active Discharge option available

Description

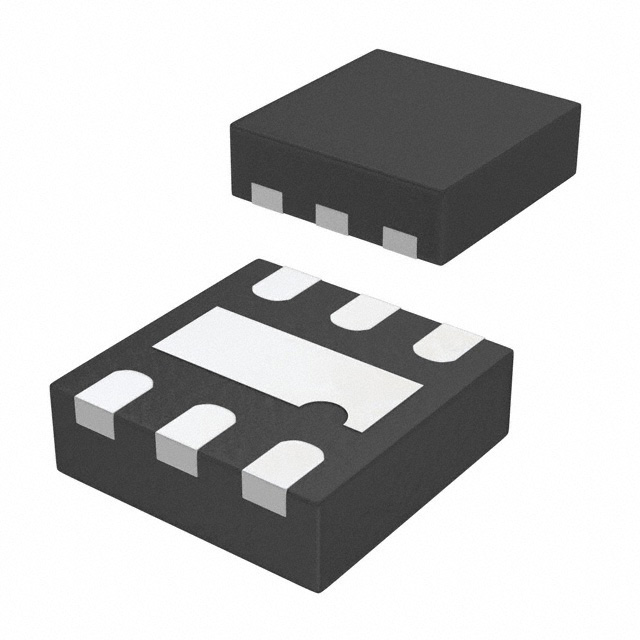

NCP120 is a 150 mA VLDO equipped with NMOS passtransistor and a separate bias supply voltage (VBIAS). The deviceprovides very stable, accurate output voltage with low noise suitablefor space constrained, noise sensitive applications. In order tooptimize performance for battery operated portable applications, theNCP120 features low IQ consumption. The XDFN6 1.2 mm x 1.2 mmpackage is optimized for use in space constrained applications
