PSAA06A Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 6W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Form	Current - Output (Max) [Max]	Input Type	No Load Power Consumption	Applications	Voltage - Output	Cord Length	Cord Length	Approval Agency	Output Connector	Output Connector [diameter]	Output Connector [x]	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Polarization	Input Connector	Power (Watts)	Standard Number

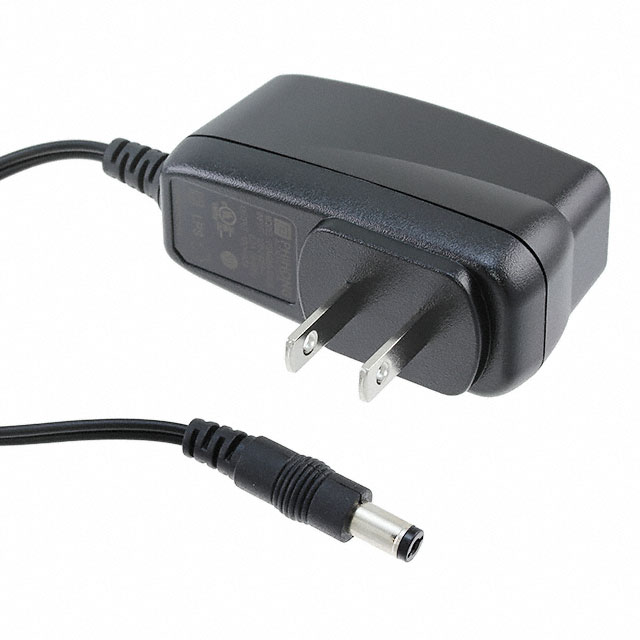

Phihong USA PSAA06A-120L6	264 VAC	90 VAC	Wall Mount	500 mA	Fixed Blade	30 mW	ITE (Commercial)	12 V	1.2 m	47.2 in	cULus	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	North America	40 °C	0 °C	Level VI	66.5 mm	2.62 "	28 mm	39 mm	1.1 in	1.54 in	Positive Center	NEMA 1-15P	6 W
Phihong USA PSAA06A-120L6-R-CR1	264 VAC	90 VAC	Wall Mount	500 mA	Fixed Blade	30 mW	ITE (Commercial)	12 V	1.2 m	47.2 in	cULus	Barrel Plug R/A	2.1 mm 5.5 mm	10 mm	North America	40 °C	0 °C	Level VI	66.5 mm	2.62 "	28 mm	39 mm	1.1 in	1.54 in	Positive Center	NEMA 1-15P	6 W	60950-1
