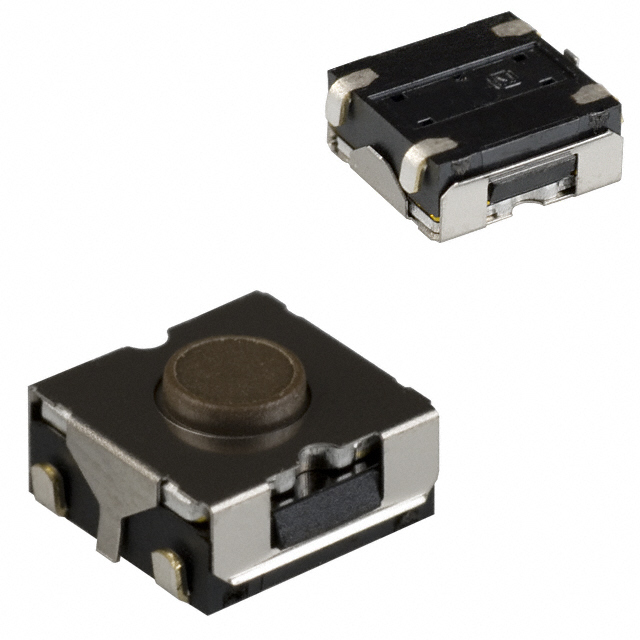

EVQ-PH Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Contact Rating @ Voltage [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Operating Force	Actuator Type	Outline [x]	Outline [y]	Circuit	Switch Travel	Termination Style	Illumination	Switch Function	Actuator Height off PCB, Vertical [z]	Mechanical Life	Features
Panasonic Industrial Automation Sales EVQ-PHP03T	0.02 A 15 VDC	Surface Mount	-20 C	70 °C	Top Actuated	130 gf	Standard	6.5 mm	6.4 mm	SPST-NO	0.25 mm	J Lead	Non-Illuminated	Off-Mom	3.1 mm	100000 Cycles
Panasonic Industrial Automation Sales EVQ-PHN03T	0.02 A 15 VDC	Surface Mount	-20 C	70 °C	Top Actuated		Standard	6.5 mm	6.4 mm	SPST-NO	0.25 mm	J Lead	Non-Illuminated	Off-Mom	3.1 mm	100000 Cycles	Grounding Pin
Panasonic Industrial Automation Sales EVQ-PHK03T	0.02 A 15 VDC	Surface Mount	-20 C	70 °C	Top Actuated	260 gf	Standard	6.5 mm	6.4 mm	SPST-NO	0.25 mm	J Lead	Non-Illuminated	Off-Mom	3.1 mm		Grounding Pin
Panasonic Industrial Automation Sales EVQ-PHL03T	0.02 A 15 VDC	Surface Mount	-20 C	70 °C	Top Actuated	130 gf	Standard	6.5 mm	6.4 mm	SPST-NO	0.25 mm	J Lead	Non-Illuminated	Off-Mom	3.1 mm	100000 Cycles	Grounding Pin
