887-070 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 70POS 0.156

...

Part	Pitch [x]	Pitch [x]	Contact Material	Termination	Number of Rows	Contact Finish	Gender	Number of Positions/Bay/Row [custom]	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Number of Positions	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Mounting Type	Termination Rows	Flange Feature	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 887-070-542-201	0.156 in	3.96 mm	Copper Alloy	Wire Wrap	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2

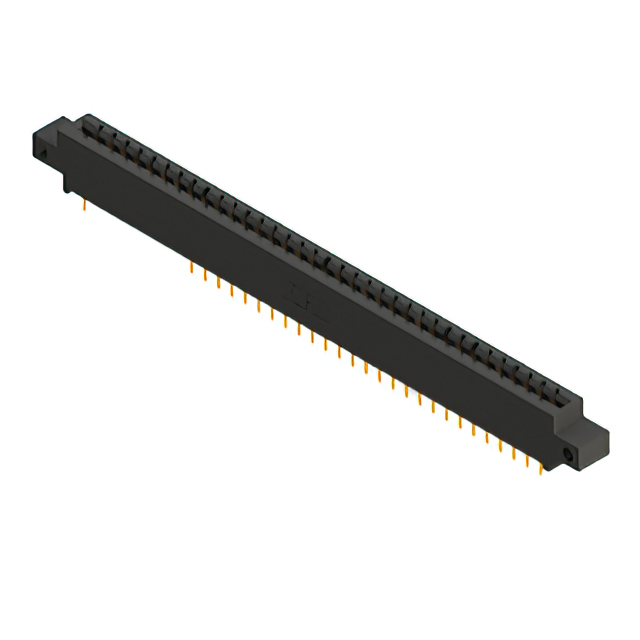

EDAC Inc. 887-070-540-812	0.156 in	3.96 mm	Copper Alloy	Wire Wrap	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 887-070-523-812	0.156 in	3.96 mm	Copper Alloy	Solder	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 887-070-524-203	0.156 in	3.96 mm	Copper Alloy	Solder	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	Floating Bobbin Flush Mount			0.116 in	2.95 mm
EDAC Inc. 887-070-560-204	0.156 in	3.96 mm	Copper Alloy	Solder	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	2	Flush Mount Top Opening Unthreaded			0.156 in	3.96 mm	Card Extender
EDAC Inc. 887-070-544-212	0.156 in	3.96 mm	Copper Alloy	Wire Wrap	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	Flush Mount Side Opening Unthreaded			0.128 "	3.25 mm
EDAC Inc. 887-070-541-208	0.156 in	3.96 mm	Copper Alloy	Wire Wrap	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 887-070-521-202	0.156 in	3.96 mm	Copper Alloy	Solder	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	Flush Mount Top Opening Unthreaded			0.128 "	3.25 mm
EDAC Inc. 887-070-544-204	0.156 in	3.96 mm	Copper Alloy	Wire Wrap	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	Flush Mount Top Opening Unthreaded			0.156 in	3.96 mm
EDAC Inc. 887-070-544-812	0.156 in	3.96 mm	Copper Alloy	Wire Wrap	2	Gold	Female	35	Dual	125 °C	-40 °C	Non Specified - Dual Edge	70	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	10 Áin	0.25 Ám	Polyphenylene Sulfide (PPS)	Through Hole	2	Side Mount Opening Unthreaded	3.25 mm	0.128 in
