WL4S Series

Catalog

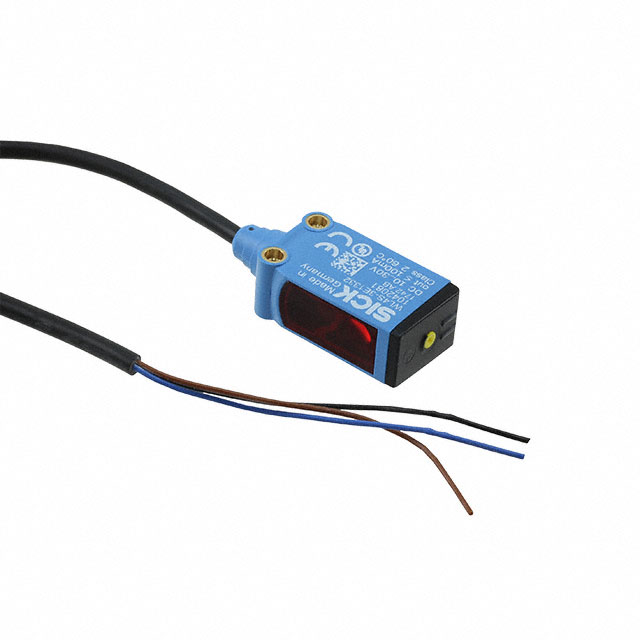

SENSOR RETROREFLECTIVE 4M PNP

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Sensing Distance	Sensing Distance	Sensing Method	Light Source	Connection Method	Output Configuration	Ingress Protection	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Cable Length	Cable Length	Adjustment Type
SICK, Inc. 1042069	10 VDC	30 VDC	-40 °C	60 °C	500 µs	157.48 in	4 m	Retroreflective	RED (650nm)	Connector M8	PNP	IP67
SICK, Inc. 1042081	10 VDC	30 VDC	-40 C	60 °C	500 µs			Retroreflective	Red LED	Cable		IP66 IP67	0 "	3 m	0 m	118.11 "
SICK, Inc. 1048044	10 VDC	30 VDC	-30 °C	70 °C	500 µs	157.48 in	4 m	Retroreflective	RED (650nm)	Cable	PNP	IP66 IP67 IP68 IP69K					78.74 "	2 m
SICK, Inc. WL4S-3F1330V	10 VDC	30 VDC	-30 °C	70 °C	500 µs	157.48 in	4 m	Retroreflective	RED (650nm)	Cable	PNP	IP66 IP67 IP68 IP69K					78.74 "	2 m
SICK, Inc. WL4S-3P3232H	10 VDC	30 VDC	-30 °C	70 °C	500 µs		5 m 196.85 in	Retroreflective	RED (650nm)	Cable with Connector	PNP						5.906 in	150 mm	Adjustable
SICK, Inc. 1046432	10 VDC	30 VDC	-30 °C	70 °C	500 µs		5 m 196.85 in	Retroreflective	RED (650nm)	Connector M8	NPN	IP66 IP67 IP68 IP69K							Adjustable
SICK, Inc. 1046413	10 VDC	30 VDC	-30 °C	70 °C	500 µs	157.48 in	4 m	Retroreflective	RED (650nm)	Connector M8	PNP	IP66 IP67 IP68 IP69K
SICK, Inc. WL4S-3P3132V	10 VDC	30 VDC	-30 °C	70 °C	500 µs		5 m 196.85 in	Retroreflective	RED (650nm)	Cable with Connector	PNP	IP66 IP67 IP68 IP69K					5.906 in	150 mm	Adjustable
SICK, Inc. 1046430	10 VDC	30 VDC	-30 °C	70 °C	500 µs		5 m 196.85 in	Retroreflective	RED (650nm)	Cable	PNP	IP66 IP67 IP68 IP69K					78.74 "	2 m	Adjustable
SICK, Inc. 1054695	10 VDC	30 VDC	-40 °C	60 °C	500 µs	157.48 in	4 m	Retroreflective	RED (650nm)	Connector M8	PNP	IP67
