147102 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 10POS 0.1 GOLD SMD

Part	Features	Contact Finish - Post	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Mounting Type	Insulation Material	Number of Rows	Contact Shape	Insulation Height	Insulation Height	Insulation Color	Termination	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Number of Positions	Fastening Type	Material Flammability Rating

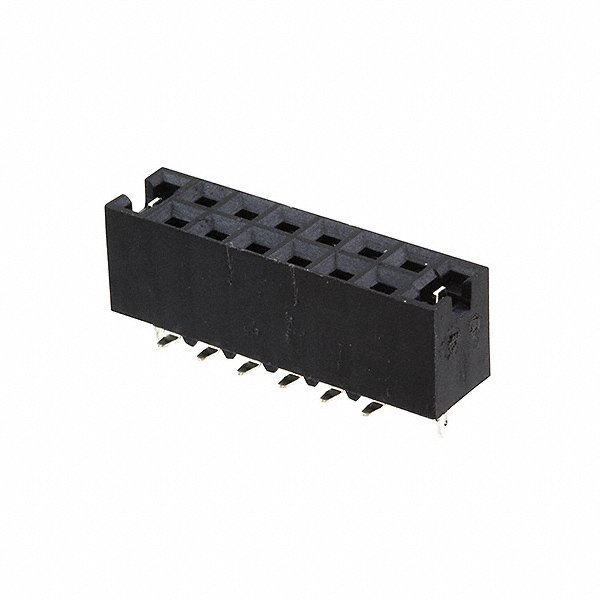

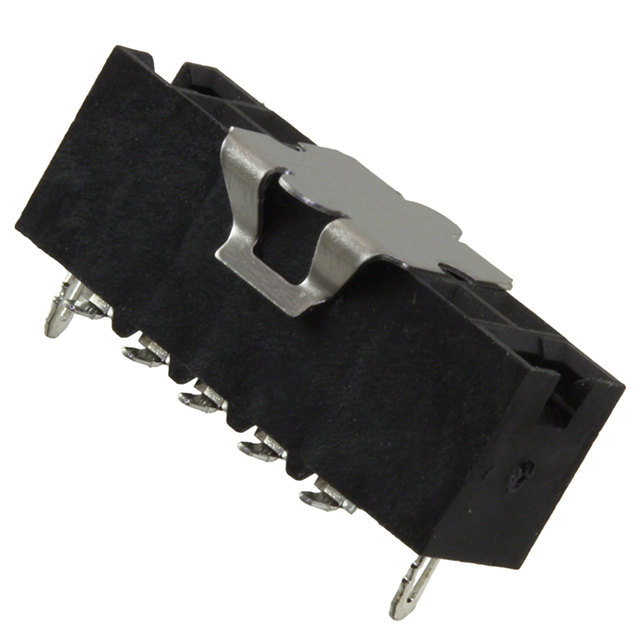

TE Connectivity Raychem Cable Protection 147102-5	Board Lock Pick and Place	Tin-Lead	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	10	Push-Pull
TE Connectivity Raychem Cable Protection 147102-6	Board Lock Pick and Place	Tin-Lead	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	12	Push-Pull

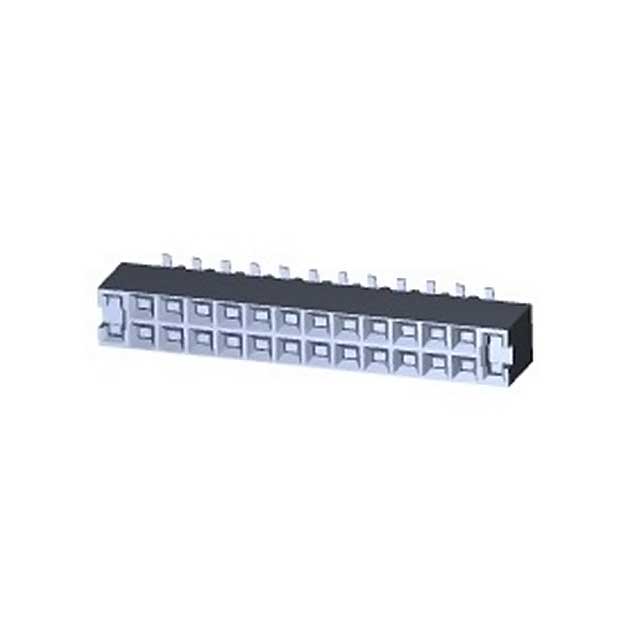

TE Connectivity Raychem Cable Protection 6-147102-2	Board Lock Pick and Place	Tin	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	24	Push-Pull	UL94 V-0
TE Connectivity Raychem Cable Protection 5-147102-6	Board Lock Pick and Place	Tin	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	12	Push-Pull	UL94 V-0
TE Connectivity Raychem Cable Protection 5-147102-5	Board Lock Pick and Place	Tin	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	10	Push-Pull	UL94 V-0

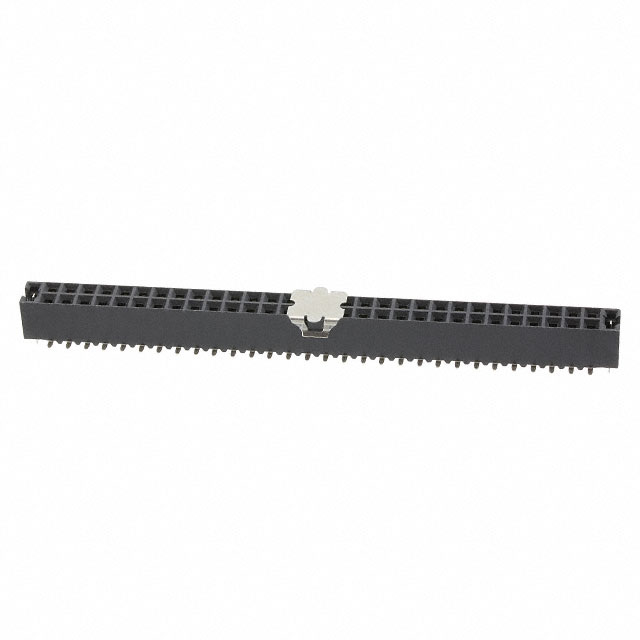

TE Connectivity Raychem Cable Protection 1-147102-0	Board Lock Pick and Place	Tin-Lead	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	20	Push-Pull

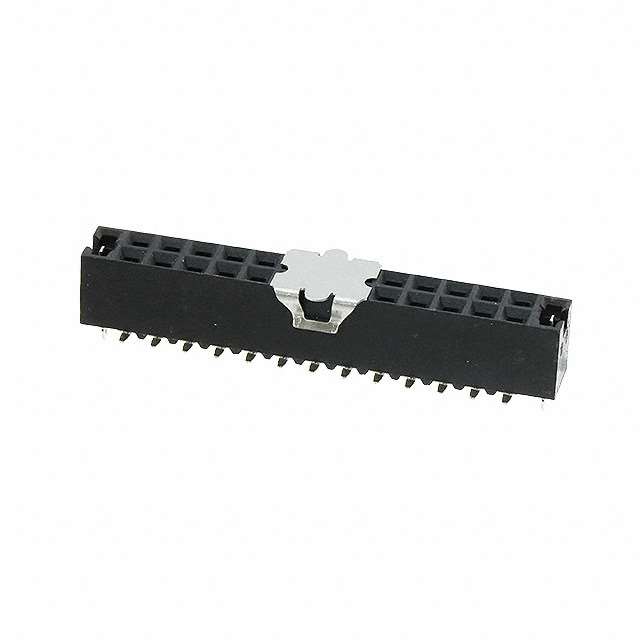

TE Connectivity Raychem Cable Protection 3-147102-0	Board Lock Pick and Place	Tin-Lead	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	60	Push-Pull
TE Connectivity Raychem Cable Protection 6-147102-7	Board Lock Pick and Place	Tin	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	34	Push-Pull	UL94 V-0
TE Connectivity Raychem Cable Protection 6-147102-3	Board Lock Pick and Place	Tin	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	26	Push-Pull	UL94 V-0
TE Connectivity Raychem Cable Protection 2-147102-5	Board Lock Pick and Place	Tin-Lead	Female Socket	125 °C	-65 ░C	Gold	0.1 in	2.54 mm	Receptacle Bottom or Top Entry	Surface Mount	Polyester Glass Filled	2	Square	6.73 mm	0.265 in	Black	Solder	All	150 Áin	3.81 Ám	2 A	30 Áin	0.76 Ám	Phosphor Bronze	2.54 mm	0.1 in	Board to Board Cable	50	Push-Pull
