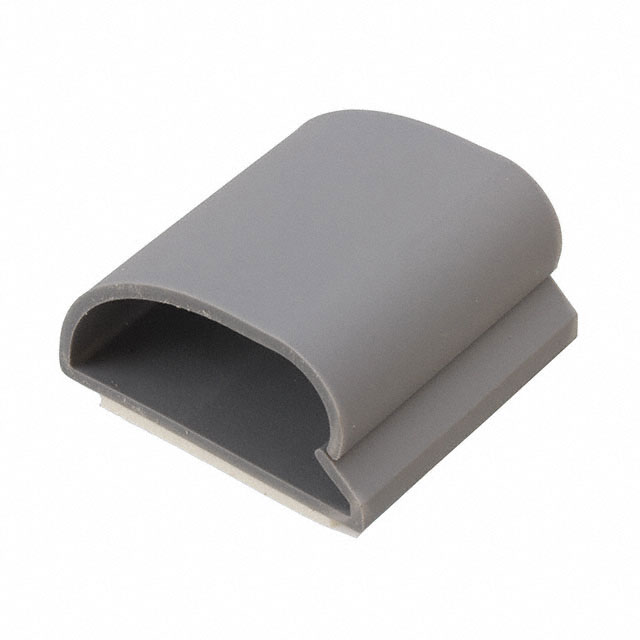

KKD Series

Catalog

CBL CLIP C-TYPE GRAY ADHESIVE

Part	Features	Mounting Type	Material	Opening Size	Opening Size	Length	Length	Height [z]	Height [z]	Material Flammability Rating	Width [x]	Width [x]	Adhesive	Type	Color	Height	Height	Width	Width
Essentra Components KKD-16-RT	Flame Retardant	Adhesive	Polyvinyl Chloride (PVC)	25.4 mm	1 in	1.5 in	38.1 mm	33.02 mm	33.02 mm	UL94 V-0	1.25 in	31.75 mm	Acrylic Based (RMS-15)	Clip C-Type	Gray

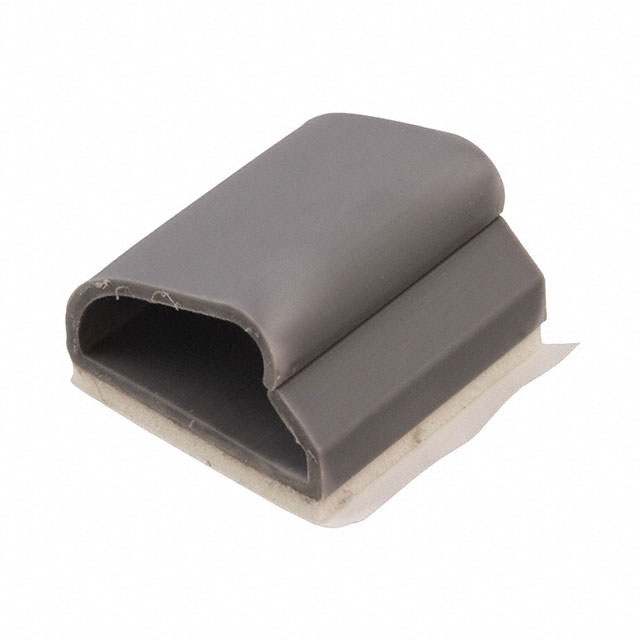

Essentra Components KKD-8-RT	Flame Retardant	Adhesive	Polyvinyl Chloride (PVC)	12.7 mm	0.5 in	0.75 in	19.05 mm			UL94 V-0	0.75 in	19.05 mm	Acrylic Based (RMS-15)	Clip C-Type	Gray	0.73 in	18.54 mm

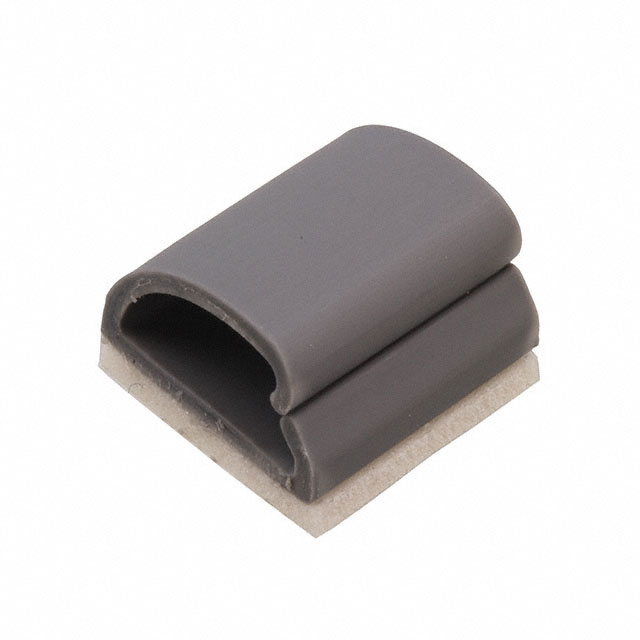

Essentra Components KKD-4-RT	Flame Retardant	Adhesive	Polyvinyl Chloride (PVC)	6.35 mm	0.25 "	0.5 in	12.7 mm			UL94 V-0			Acrylic Based (RMS-15)	Clip C-Type	Gray			12.7 mm	0.5 in
