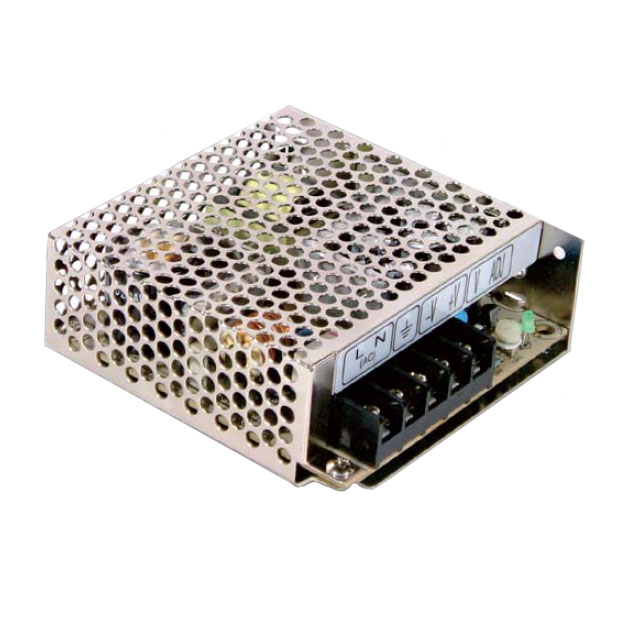

RS-50 Series

Catalog

AC/DC CONVERTER 3.3V 33W

Part	Voltage - Output 1	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Type	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)	Voltage - Isolation	Applications	Current - Output 1
MEAN WELL USA Inc. RS-50-3.3	3.3 V	Adjustable Output Universal Input	97 mm	3.9 "	99 mm	3.82 in	1.42 "	36 mm	88 VAC 125 VDC	264 VAC 373 VDC	CB CCC CE cURus EAC TUV	Enclosed	78 %	1	70 °C	-25 °C	Chassis Mount	33 W	3000 V	ITE (Commercial)	10 A
MEAN WELL USA Inc. RS-50-24	24 V	Adjustable Output Universal Input	97 mm	3.9 "	99 mm	3.82 in	1.42 "	36 mm	88 VAC 125 VDC	264 VAC 373 VDC	CB CCC CE cURus EAC TUV	Enclosed	88 %	1	70 °C	-25 °C	Chassis Mount	53 W	3000 V	ITE (Commercial)	2.2 A
MEAN WELL USA Inc. RS-50-5	5 V	Adjustable Output Universal Input	97 mm	3.9 "	99 mm	3.82 in	1.42 "	36 mm	88 VAC 125 VDC	264 VAC 373 VDC	CB CCC CE cURus EAC TUV	Enclosed	83 %	1	70 °C	-25 °C	Chassis Mount	50 W	3000 V	ITE (Commercial)	10 A
MEAN WELL USA Inc. RS-50-48	48 V	Adjustable Output Universal Input	97 mm	3.9 "	99 mm	3.82 in	1.42 "	36 mm	88 VAC 125 VDC	264 VAC 373 VDC	CB CCC CE cURus EAC TUV	Enclosed	89 %	1	70 °C	-25 °C	Chassis Mount	53 W	3000 V	ITE (Commercial)	1.1 A
