R24B Series

Catalog

WIRE, WRAPPING WIRE, PVDF, BLUE, 24 AWG, 100 FT

Part	Operating Temperature	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Length	Length	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Diameter	Conductor Diameter	Ratings	Conductor Plating	Wire Gauge
Jonard Tools R24B-0100	105 C	0.005 in	0.13 mm	Polyvinylidene Fluoride (PVDF)	30.5 m	100 '	Blue	0.03 in	0.76 mm	Copper Bare	0.5 mm	0.019 in	UL Style 1422	Silver	24 AWG

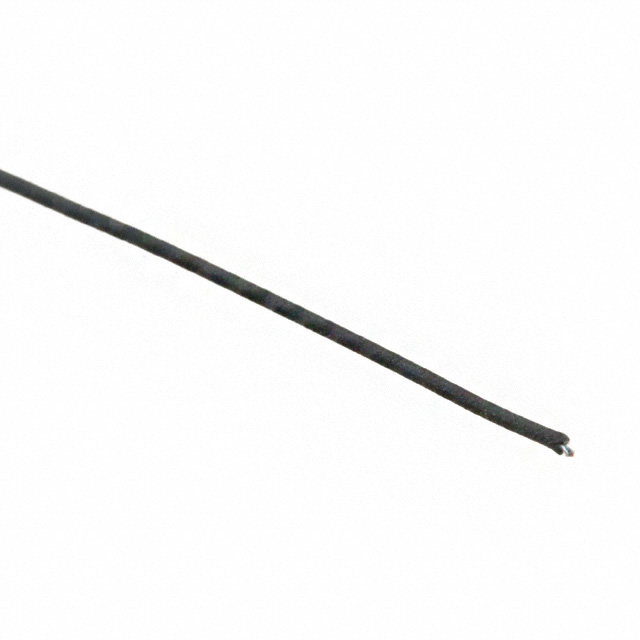

Jonard Tools R24BLK-0100	105 C	0.005 in	0.13 mm	Polyvinylidene Fluoride (PVDF)	30.5 m	100 '	Black	0.03 in	0.76 mm	Copper Bare	0.5 mm	0.019 in	UL Style 1422	Silver	24 AWG
