322451 Series

Catalog

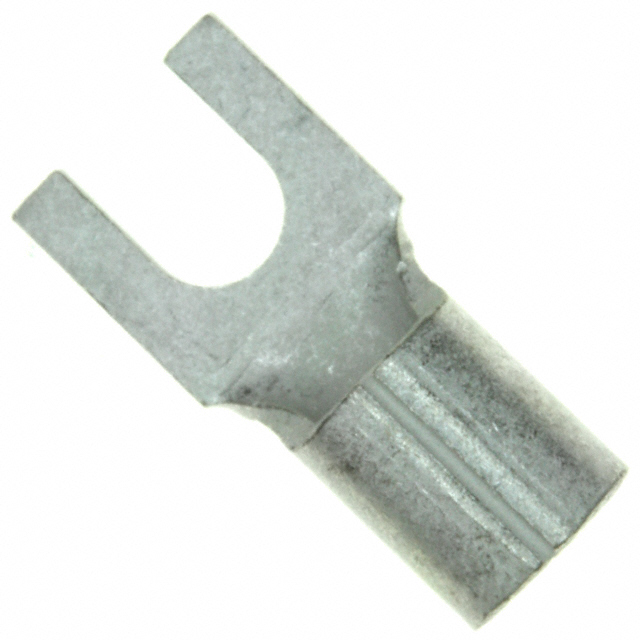

CONN SPADE TERM 10-12AWG #6

Part	Stud/Tab Size	Contact Material	Length - Termination	Length - Termination	Mounting Type	Contact Finish	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Length - Overall [x]	Length - Overall [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type
TE Connectivity Raychem Cable Protection 8-322451-2	6 Stud	Copper	0.268 in	6.81 mm	Free Hanging (In-Line)	Tin	Crimp	12 AWG	10 AWG	0.218 in	5.54 mm	Brazed Seam Serrated Termination	16.03 mm	0.631 in	3.68 mm	0.145 in	Non-Insulated	0.282 in	7.16 mm	Standard
