HL1 Series
Manufacturer: Panduit Corp
Beta
⌘K

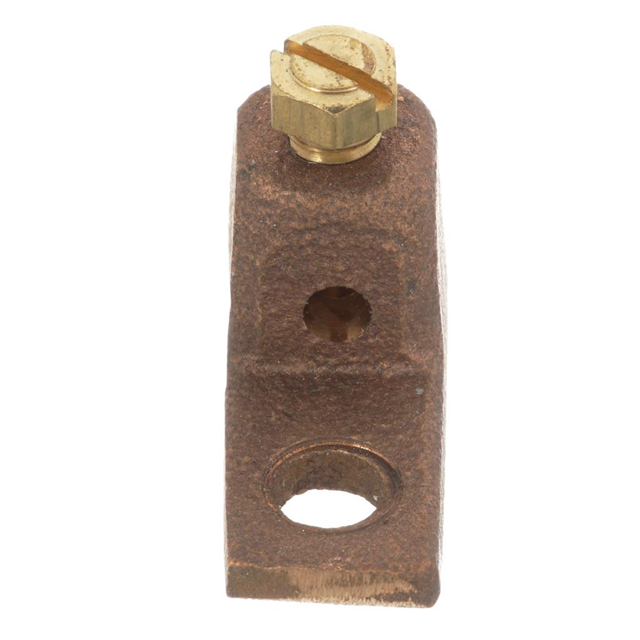

CONN TERM RECT LUG 3-14 AWG #1/4
| Part | Insulation | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Stud/Tab Size | Features | Tab Thickness | Tab Thickness | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Mounting Type | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Non-Insulated | 0.28 " | 7.11 mm | 0.25 Stud | With Screw | 0.19 in | 4.83 mm | 14.22 mm | 0.56 in | Grounding Lug | Free Hanging (In-Line) | Copper | 14 AWG | 3 AWG | 1.38 in | 35.05 mm | Screw | Single Stud Hole |
