C146 10N010 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN BASE SIDE ENTRY SZE10 M32

Part	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Connector Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size	Housing Material	Thread Size

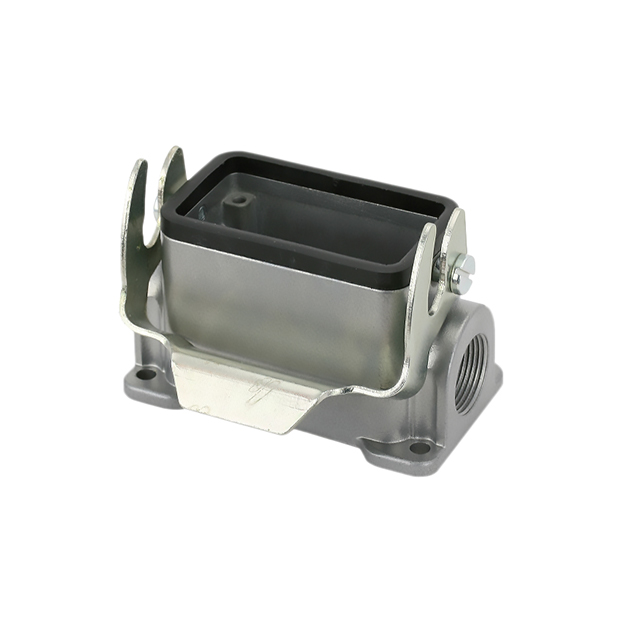

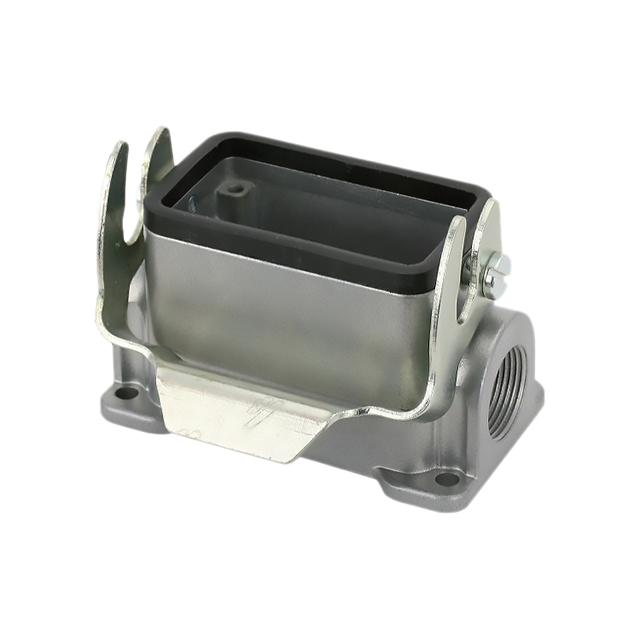

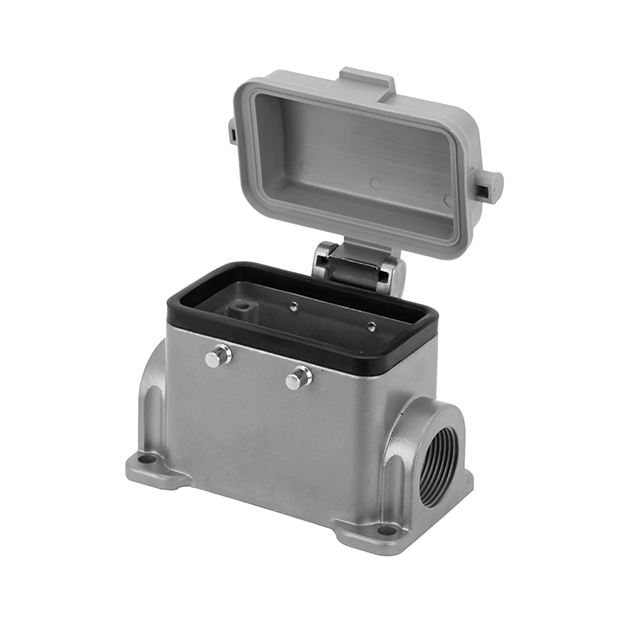

Amphenol Tuchel Industrial C146 10N010 806 2	Locking Clip (1) on Base Bottom	54 mm	3.701 in	2.913 in	94 mm	74 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C	Cover	E10	Aluminum Alloy Die Cast	M32
Amphenol Tuchel Industrial C146 10N010 802 2	Locking Clip (1) on Base Bottom	54 mm	3.701 in	2.913 in	94 mm	74 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C		E10	Aluminum Alloy Die Cast	M32
Amphenol Tuchel Industrial C146 10N010 803 1	Locking Clip (1) on Base Bottom	54 mm	3.701 in	2.244 "	94 mm	57 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C		E10	Aluminum Alloy Die Cast	M20
Amphenol Tuchel Industrial C146 10N010 609 1	Locking Clip (2) on Hood	54 mm	3.701 in	2.244 "	94 mm	57 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C	Feed Through	E10	Aluminum Alloy Die Cast	M20
Amphenol Tuchel Industrial C146 10N010 604 1	Locking Clip (2) on Hood	54 mm	3.701 in	2.244 "	94 mm	57 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C		E10	Aluminum Alloy Die Cast	M25

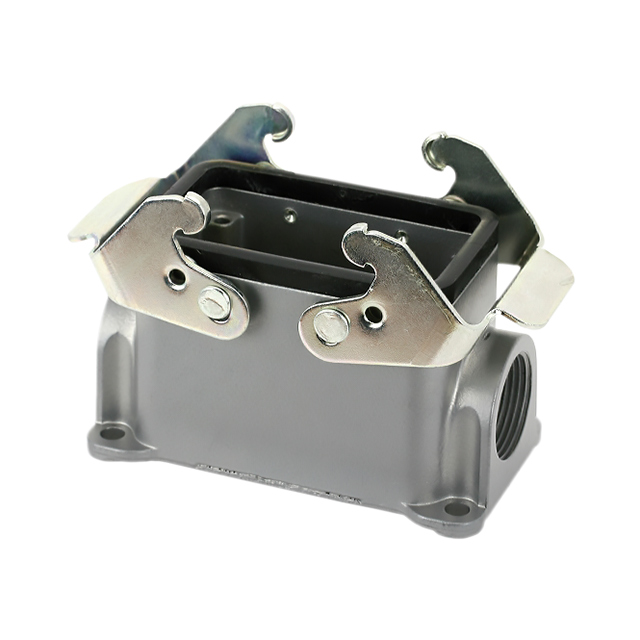

Amphenol Tuchel Industrial C146 10N010 508 2	Locking Clip (2) on Hood	54 mm	3.701 in	2.913 in	94 mm	74 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C		E10	Aluminum Alloy Die Cast	M32
Amphenol Tuchel Industrial C146 10N010 802 1	Locking Clip (1) on Base Bottom	54 mm	3.701 in	2.244 "	94 mm	57 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C		E10	Aluminum Alloy Die Cast	M25
Amphenol Tuchel Industrial C146 10N010 600 2	Locking Clip (2) on Base Bottom	54 mm	3.701 in	2.913 in	94 mm	74 mm	2.126 in	IP65 - Dust Tight Water Resistant	Base - Box Mount	Side Entry	-40 C	100 °C	Feed Through	E10	Aluminum Alloy Die Cast	M32
