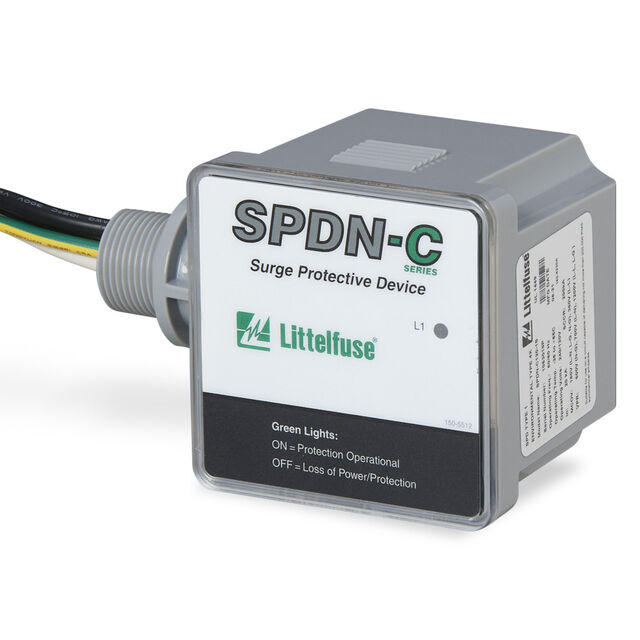

SPDN-C240-1P Series

SPD, NEMA, 50KA, 240V, Single

Catalog

SPD, NEMA, 50KA, 240V, Single

Part	Form	Number of Poles	Mounting Type	Approval Agency	Type	Current - Discharge (Max) (8/20µS) [Max]	Voltage - Protection Rating (VPR)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current - Discharge (Nom) (8/20µS)	Current - Short Circuit Rating (SCCR)
LITTELFUSE SPDN-C240-1P	Module Only	1	Panel Mount	cULus	Type 1	50 kA	2.5 kV	350 VDC	85 °C	-35 °C	Thermally Protected Visual Life Indicator	20 kA	200 kA

Catalog

SPD, NEMA, 50KA, 240V, Single

Description

Surge protective devices (SPDs) provide equipment protection from transient overvoltage events lasting microseconds. By limiting the overvoltage to the equipment during these events, costly damage and downtime can be mitigated. The NEMA-style SPDN series for external panel mount is available for 120 V to 480 V nominal voltage sub-distribution board applications.
