PEN.FF Series
Manufacturer: LEMO
Beta
⌘K

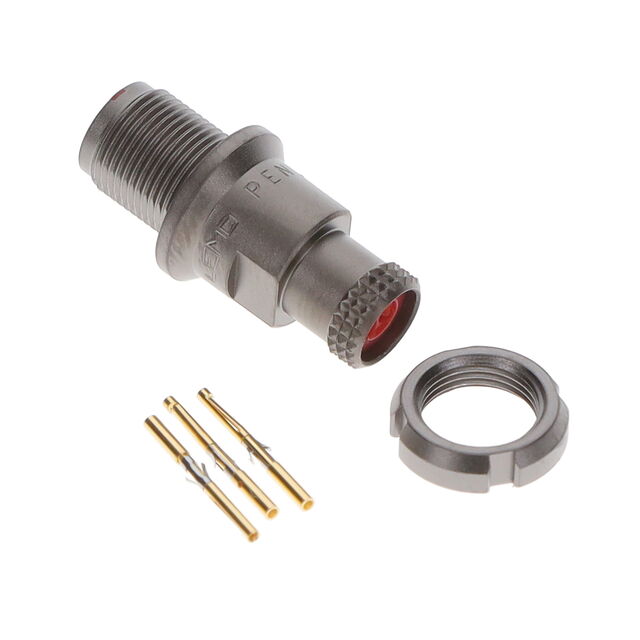

CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Termination | Mounting Type | Shell Size - Insert | Color | Insert Material | Shell Material | Shielding | Applications | Mounting Feature | Primary Material | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Fastening Type | Cable Opening | Cable Opening | Current Rating (Amps) | Contact Material | Ingress Protection | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | N (Normal) | -15 °C | 200 °C | Nickel | Crimp | Panel Mount | 303 | Gray | Polyetheretherketone (PEEK) | Aluminum Alloy | Shielded | Aerospace | Bulkhead - Front Side Nut | Metal | UL94 V-0 | 1.5 Ám | 59 Áin | Gold | Push-Pull | 6.3 mm | 0.248 in | 3 A | Bronze | IP67 - Dust Tight Waterproof | Receptacle Female Sockets |
