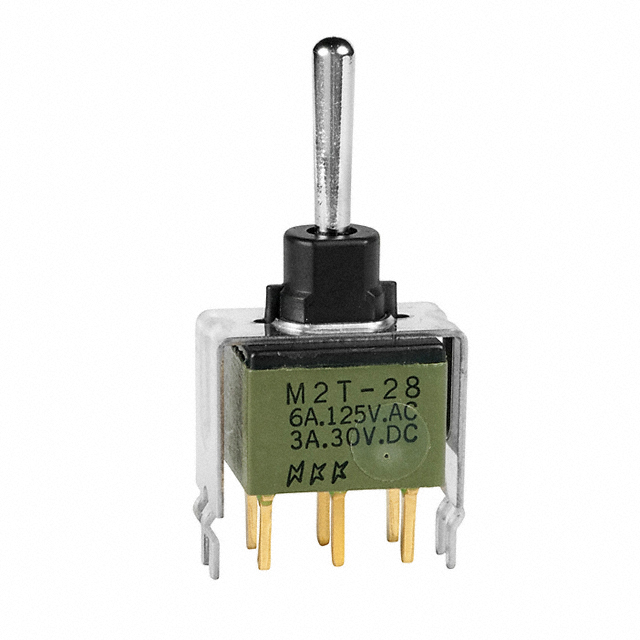

M2T28SA Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Actuator Material | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Mounting Type | Actuator Length [x] | Switch Function | Voltage Rating - DC | Illumination | Termination Style | Features | Actuator Type | Circuit | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Nickel Plated | 3 A 6 A | 85 °C | -30 ░C | 125 V | Through Hole | 0.5 in | Mom-Off-Mom | 30 V | Non-Illuminated | PC Pin | Process Sealed | Standard Round | DPDT | Unthreaded |
