EPM9320 Series

Manufacturer: Altera

Catalog

IC CPLD 320MC 10NS 84PLCC

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Number of Macrocells	Number of Logic Elements/Blocks	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Supplier Device Package	Programmable Type	Delay Time tpd(1) Max [Max]	Package / Case	Number of Gates

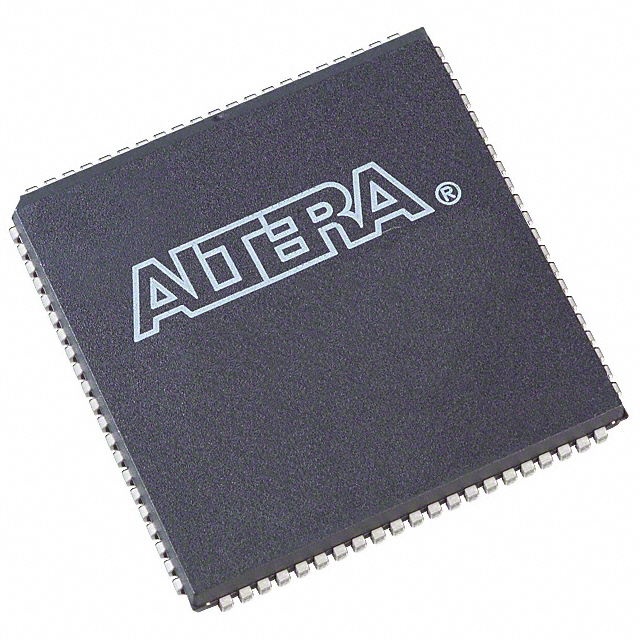

Altera EPM9320ALC84-10	Surface Mount	0 °C	70 °C	60	320	20	4.75 V	5.25 V	84-PLCC (29.31x29.31)	In System Programmable	10 ns	84-LCC (J-Lead)	6000
Altera EPM9320ALC84-10	Surface Mount	0 °C	70 °C	60	320	20	4.75 V	5.25 V	84-PLCC (29.31x29.31)	In System Programmable	10 ns	84-LCC (J-Lead)	6000

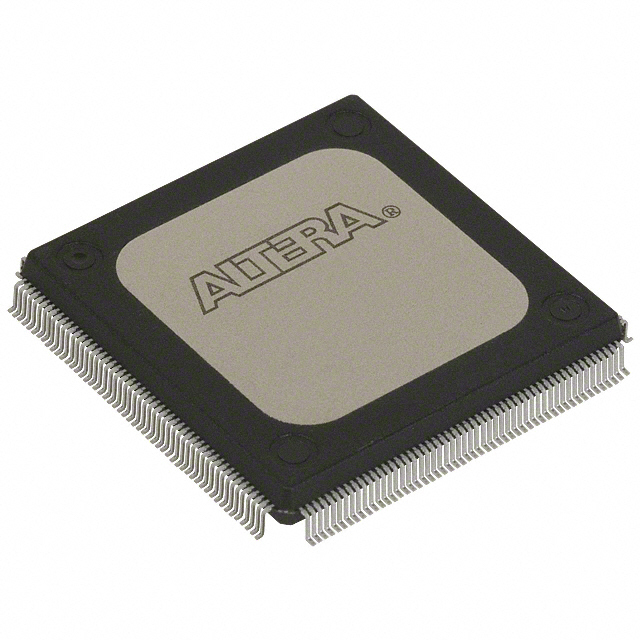

Altera EPM9320RC208-15	Surface Mount	0 °C	70 °C	132	320	20	4.75 V	5.25 V	208-RQFP (28x28)	In System Programmable	15 ns	208-BFQFP Exposed Pad	6000
Altera EPM9320RC208-20	Surface Mount	0 °C	70 °C	132	320	20	4.75 V	5.25 V	208-RQFP (28x28)	In System Programmable	20 ns	208-BFQFP Exposed Pad	6000
Altera EPM9320RC208-20	Surface Mount	0 °C	70 °C	132	320	20	4.75 V	5.25 V	208-RQFP (28x28)	In System Programmable	20 ns	208-BFQFP Exposed Pad	6000
Altera EPM9320RI208-20	Surface Mount	-40 ¯C	85 C	132	320	20	4.5 V	5.5 V	208-RQFP (28x28)	In System Programmable	20 ns	208-BFQFP Exposed Pad	6000
Altera EPM9320RC208-15	Surface Mount	0 °C	70 °C	132	320	20	4.75 V	5.25 V	208-RQFP (28x28)	In System Programmable	15 ns	208-BFQFP Exposed Pad	6000
Altera EPM9320ARC208-10N	Surface Mount	0 °C	70 °C	132	320	20	4.75 V	5.25 V	208-RQFP (28x28)	In System Programmable	10 ns	208-BFQFP Exposed Pad	6000
Altera EPM9320RI208-20	Surface Mount	-40 ¯C	85 C	132	320	20	4.5 V	5.5 V	208-RQFP (28x28)	In System Programmable	20 ns	208-BFQFP Exposed Pad	6000
