087333 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 50POS 2MM

Part	Number of Positions Loaded	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Style	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Applications	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Features	Termination	Shrouding	Contact Material	Connector Type	Fastening Type	Mounting Type	Number of Positions

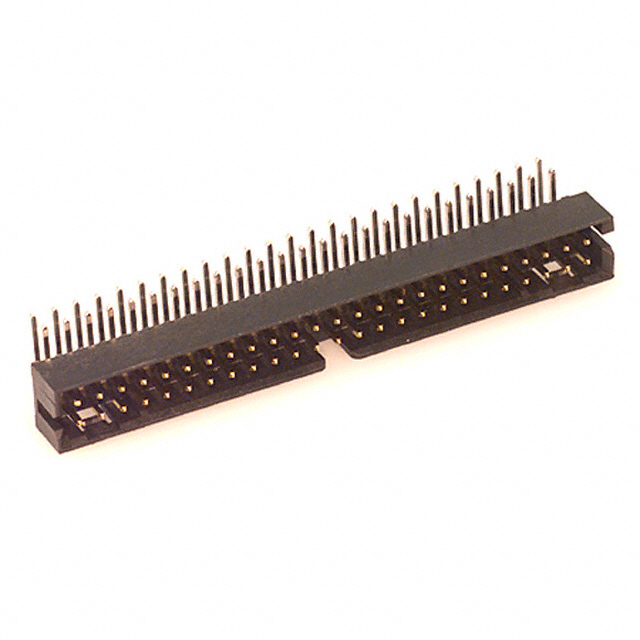

Molex 0873335020	All	Male Pin	Square	15 µin	0.38 µm	Tin-Lead	Black	Board to Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2.16 mm	0.085 in	0.141 in	3.6 mm	Automotive General Purpose Telecommunications	50	UL94 V-0	74.8 Áin	1.9 Ám	2	Gold	0.079 in	2 mm	Keying Slot	Solder	Shrouded - 4 Wall	Phosphor Bronze	Header	Latch Holder	Through Hole Right Angle

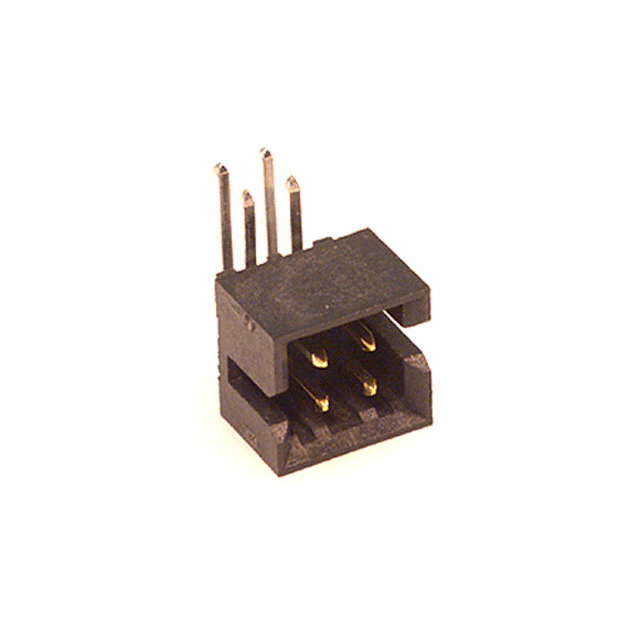

Molex 0873330420	All	Male Pin	Square	15 µin	0.38 µm	Tin-Lead	Black	Board to Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2.16 mm	0.085 in	0.141 in	3.6 mm	Automotive General Purpose Telecommunications	4	UL94 V-0	74.8 Áin	1.9 Ám	2	Gold	0.079 in	2 mm	Keying Slot	Solder	Shrouded - 4 Wall	Phosphor Bronze	Header	Latch Holder	Through Hole Right Angle

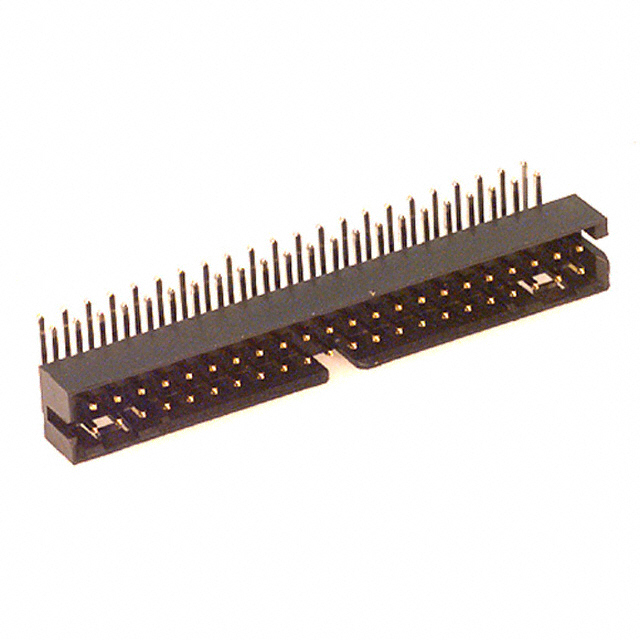

Molex 0873334420	All	Male Pin	Square	15 µin	0.38 µm	Tin-Lead	Black	Board to Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2.16 mm	0.085 in	0.141 in	3.6 mm	Automotive General Purpose Telecommunications	44	UL94 V-0	74.8 Áin	1.9 Ám	2	Gold	0.079 in	2 mm	Keying Slot	Solder	Shrouded - 4 Wall	Phosphor Bronze	Header	Latch Holder	Through Hole Right Angle

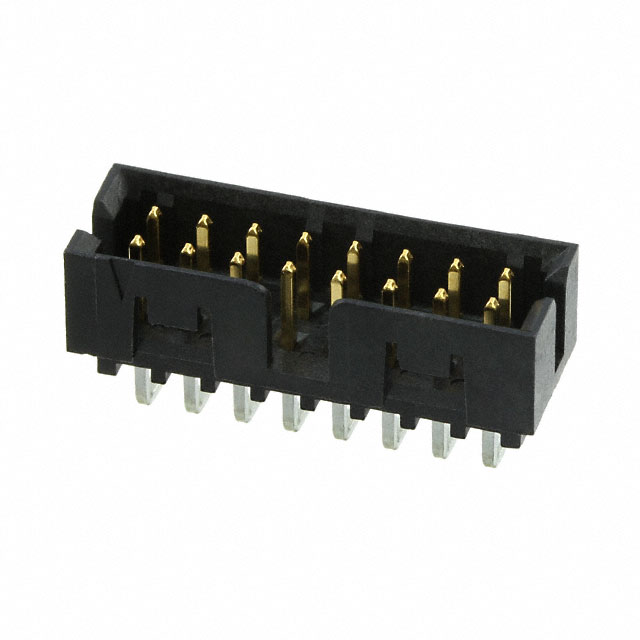

Molex 0873331620	All	Male Pin	Square	15 µin	0.38 µm	Tin-Lead	Black	Board to Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2.16 mm	0.085 in	0.141 in	3.6 mm	Automotive General Purpose Telecommunications		UL94 V-0	74.8 Áin	1.9 Ám	2	Gold	0.079 in	2 mm	Keying Slot	Solder	Shrouded - 4 Wall	Phosphor Bronze	Header	Latch Holder	Through Hole Right Angle	16
Molex 0873333420

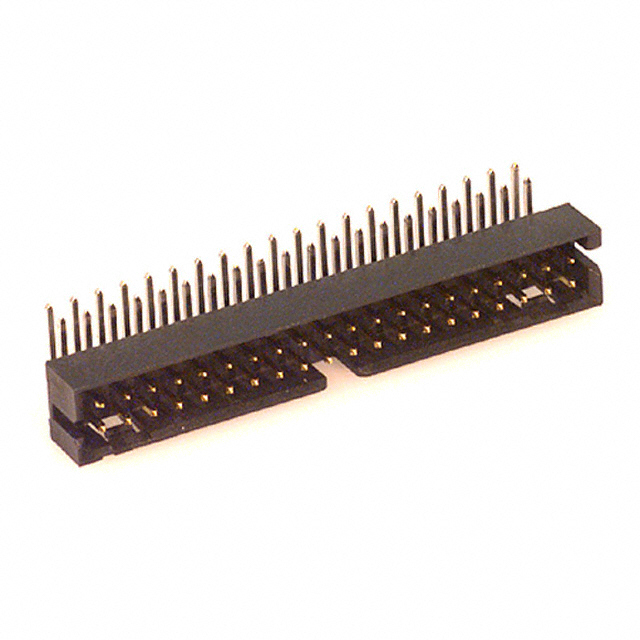

Molex 0873334020	All	Male Pin	Square	15 µin	0.38 µm	Tin-Lead	Black	Board to Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2.16 mm	0.085 in	0.141 in	3.6 mm	Automotive General Purpose Telecommunications	40	UL94 V-0	74.8 Áin	1.9 Ám	2	Gold	0.079 in	2 mm	Keying Slot	Solder	Shrouded - 4 Wall	Phosphor Bronze	Header	Latch Holder	Through Hole Right Angle
Molex 0873337000
Molex 0873330431

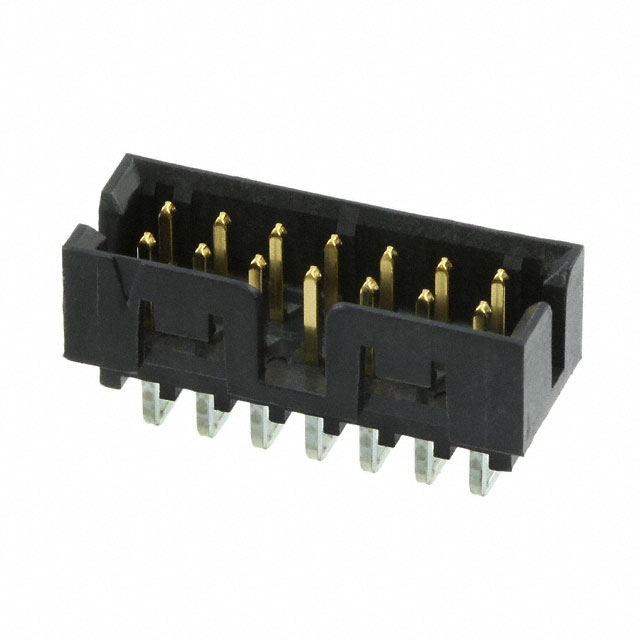

Molex 0873331420	All	Male Pin	Square	15 µin	0.38 µm	Tin-Lead	Black	Board to Cable/Wire	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 in	2 mm	2.16 mm	0.085 in	0.141 in	3.6 mm	Automotive General Purpose Telecommunications	14	UL94 V-0	74.8 Áin	1.9 Ám	2	Gold	0.079 in	2 mm	Keying Slot	Solder	Shrouded - 4 Wall	Phosphor Bronze	Header	Latch Holder	Through Hole Right Angle
