MOP-AL202 Series

Catalog

LCD CHARACTER DISPLAY MODULES & ACCESSORIES 20X2 BLK TXT Y/GR B/G

Part	Text Color	Dot Size [custom]	Dot Size [custom]	Display Format [x]	Display Format [y]	Background Color	Character Size [y]	Character Size [z]	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Display Mode	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Character Format [x]	Character Format [y]	Viewing Area [x]	Viewing Area [y]	Interface

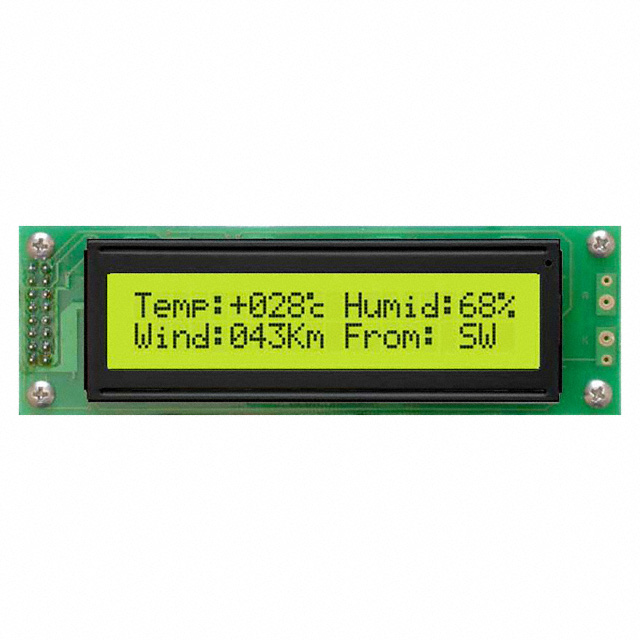

Matrix Orbital MOP-AL202C-BYFY-25E-3IN	Gray	0.65 mm	0.6 mm	20	2	Green	3.2 mm	5.55 mm	40	-20 ░C	70 °C	5.5 V	4.5 V	STN - Super-Twisted Nematic	Transflective	116 mm	37 mm	14.5 mm	5 Dots	8 Dots	83 mm	18.6 mm	Parallel
Matrix Orbital MOP-AL202C-BFTG-25E-3IN	Green			20	2	Black	3.2 mm	5.55 mm	40	-20 ░C	70 °C			Alphanumeric		116 mm	37 mm	14.5 mm	5 Dots	8 Dots	73.5 mm	11.5 mm	I2C RS-232 TTL
Matrix Orbital MOP-AL202C-BTTY-25E-3IN	Yellow/Green			20	2	Black	3.2 mm	5.55 mm	40	-20 ░C	70 °C			Alphanumeric		116 mm	37 mm	14.5 mm	5 Dots	8 Dots	73.5 mm	11.5 mm	I2C RS-232 TTL
Matrix Orbital MOP-AL202C-BFTW-25E-3IN	White			20	2	Black	3.2 mm	5.55 mm	40	-20 ░C	70 °C			Alphanumeric		116 mm	37 mm	14.5 mm	5 Dots	8 Dots	73.5 mm	11.5 mm	I2C RS-232 TTL
Matrix Orbital MOP-AL202C-BBTR-25E-3IN	Red			20	2	Black	3.2 mm	5.55 mm	40	-20 ░C	70 °C			Alphanumeric		116 mm	37 mm	14.5 mm	5 Dots	8 Dots	73.5 mm	11.5 mm	I2C RS-232 TTL
Matrix Orbital MOP-AL202C-BBTW-25E-3IN	White			20	2	Blue	3.2 mm	5.55 mm	40	-20 ░C	70 °C			Alphanumeric		116 mm	37 mm	14.5 mm	5 Dots	8 Dots	73.5 mm	11.5 mm	I2C RS-232 TTL
Matrix Orbital MOP-AL202C-BFTA-25E-3IN	Amber			20	2	Black	3.2 mm	5.55 mm	40	-20 ░C	70 °C			Alphanumeric		116 mm	37 mm	14.5 mm	5 Dots	8 Dots	73.5 mm	11.5 mm	I2C RS-232 TTL
