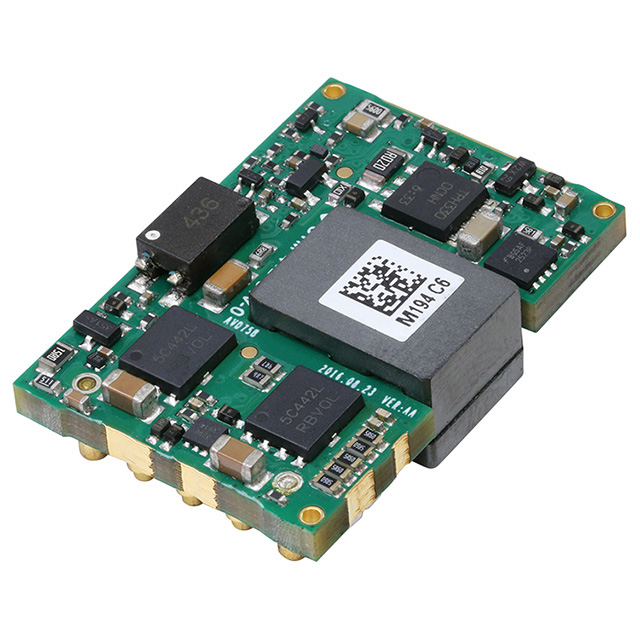

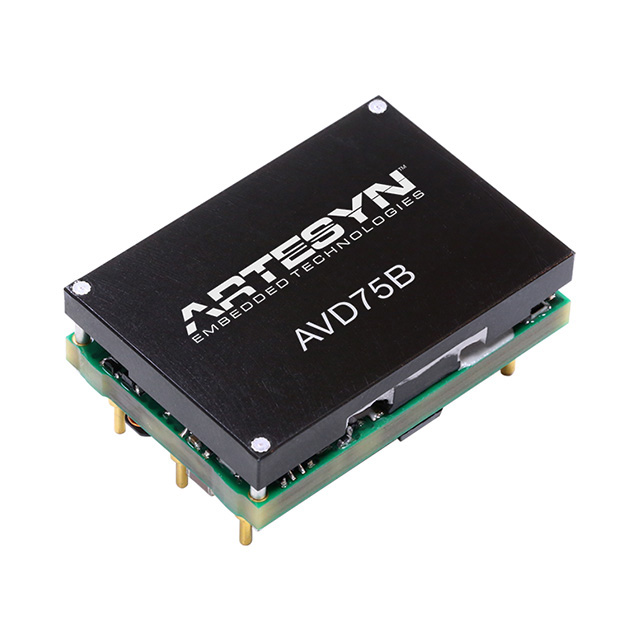

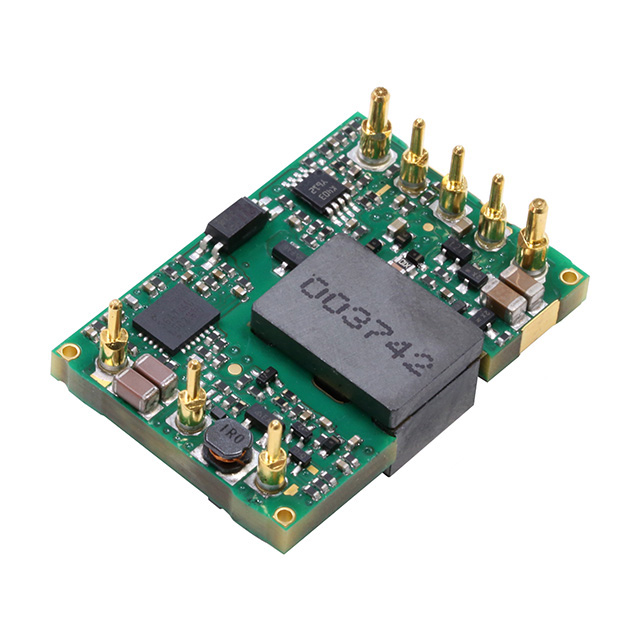

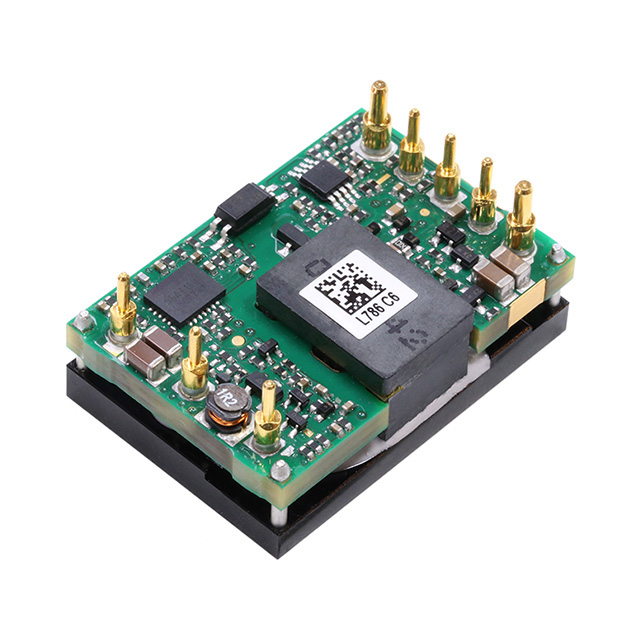

AVD75 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
30W, 36 - 75VIN, SINGLE, 1.2V@25A, 84% EFF, SIXTEETH BRICK BASEPLATE, NEGATIVE LOGIC/PIN LENGTH:3.8MM
| Part | Number of Outputs | Efficiency | Voltage - Input (Max) [Max] | Control Features | Applications | Voltage - Input (Min) [Min] | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 | Features | Current - Output (Max) [Max] | Type | Mounting Type | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Size / Dimension | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1 | 84 % | 75 V | Active Low Enable | ITE (Commercial) | 36 V | 8-DIP Module 1/16 Brick | 12.7 mm | 22.86 mm | 1.3 in | 12.7 mm | 33 mm | 22.9 mm | 1.2 V | Remote On/Off | 25 A | Isolated Module | Through Hole | 75 W | |||||||||
 ARTESYN / Advanced Energy | 1 | 91.5 % | 75 V | ITE (Commercial) | 36 V | Sixteenth Brick | 9.4 mm | 22.9 mm | 33 mm | 5 V | OCP OTP OVP Remote On/Off | 15 A | Isolated Module | Surface Mount | 75 W | 1.3 in | 0.9 in | 0.37 in | Sixteenth Brick | 85 °C | -40 C | 1.5 kV | ||||||
 ARTESYN / Advanced Energy | 1 | 93.3 % | 75 V | ITE (Commercial) | 36 V | Sixteenth Brick | 12 V | OCP OTP OVP Remote On/Off | 6.25 A | Isolated Module | Through Hole | 75 W | 1.3 in | 0.9 in | 0.47 " | Sixteenth Brick | 85 °C | -40 C | 1.5 kV | 12 mm 22.9 mm 33 mm | ||||||||
 ARTESYN / Advanced Energy | 1 | 92 % | 75 V | Active Low Enable | ITE (Commercial) | 36 V | 8-DIP Module 1/16 Brick | 10.5 mm | 22.9 mm | 33 mm | 3.3 V | Remote On/Off | 20 A | Isolated Module | Through Hole | 75 W | 1.3 in | 0.9 in | 0.41 in | |||||||||
 ARTESYN / Advanced Energy | 1 | 93.3 % | 75 V | ITE (Commercial) | 36 V | Sixteenth Brick | 9.2 mm | 22.9 mm | 33 mm | 12 V | OCP OTP OVP Remote On/Off | 6.25 A | Isolated Module | Through Hole | 75 W | 1.3 in | 0.9 in | 0.36 in | Sixteenth Brick | 85 °C | -40 C | 1.5 kV | ||||||
ARTESYN / Advanced Energy | 1 | 92 % | 75 V | Active High Enable | ITE (Commercial) | 36 V | 8-DIP Module 1/16 Brick | 10.5 mm | 22.9 mm | 33 mm | 3.3 V | Remote On/Off | 20 A | Isolated Module | Through Hole | 75 W | 1.3 in | 0.9 in | 0.41 in | |||||||||
ARTESYN / Advanced Energy | 1 | 92 % | 75 V | Active Low Enable | ITE (Commercial) | 36 V | 8-DIP Module 1/16 Brick | 12.7 mm | 22.86 mm | 1.3 in | 12.7 mm | 33 mm | 22.9 mm | 3.3 V | Remote On/Off | 20 A | Isolated Module | Through Hole | 75 W | |||||||||
ARTESYN / Advanced Energy | 1 | 84 % | 75 V | Active Low Enable | ITE (Commercial) | 36 V | 8-DIP Module 1/16 Brick | 33 mm | 22.9 mm | 1.2 V | Remote On/Off | 25 A | Isolated Module | Through Hole | 75 W | 1.3 in | 0.9 in | 0.34 in | 8.6 mm | |||||||||
ARTESYN / Advanced Energy | 1 | 92 % | 75 V | Active High Enable | ITE (Commercial) | 36 V | 8-DIP Module 1/16 Brick | 12.7 mm | 22.86 mm | 1.3 in | 12.7 mm | 33 mm | 22.9 mm | 3.3 V | Remote On/Off | 20 A | Isolated Module | Through Hole | 75 W | |||||||||
ARTESYN / Advanced Energy | 1 | 93.3 % | 75 V | ITE (Commercial) | 36 V | Sixteenth Brick | 9.4 mm | 22.9 mm | 33 mm | 12 V | OCP OTP OVP Remote On/Off | 6.25 A | Isolated Module | Surface Mount | 75 W | 1.3 in | 0.9 in | 0.37 in | Sixteenth Brick | 85 °C | -40 C | 1.5 kV |
