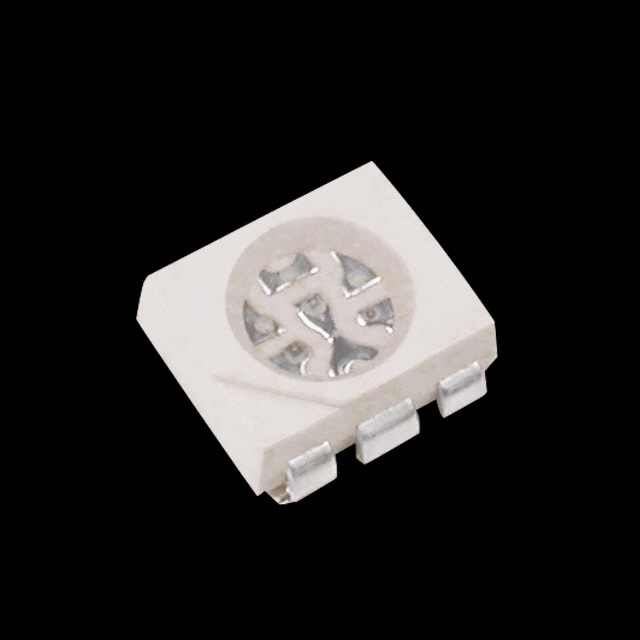

AAAF5060 Series

Catalog

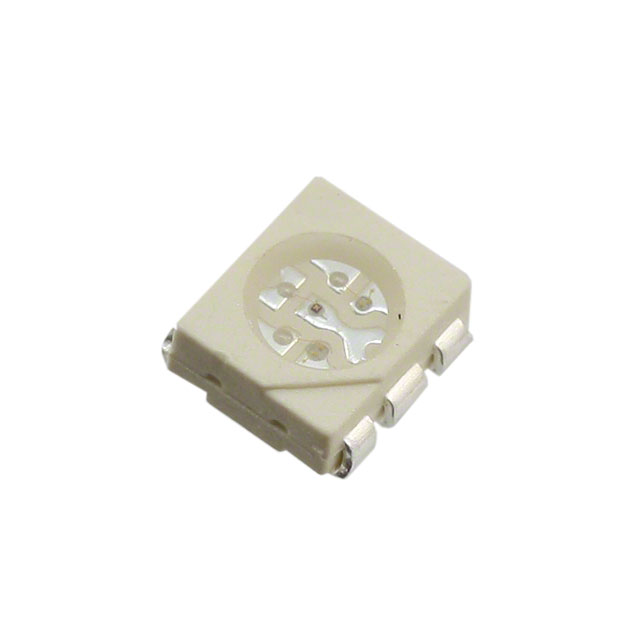

LED RGB CLEAR SMD

Part	Height (Max) [Max] [z]	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Mounting Type	Wavelength - Dominant	Supplier Device Package	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Size [diameter]	Lens Transparency	Package / Case	Color	Lens Style	Current - Test	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating
Kingbright AAAF5060QBFSURZGC	2.3 mm	Independent	350 mcd	650 mcd	500 mcd	30 mA	30 mA	50 mA	Surface Mount	465 nm 525 nm 630 nm	SMD	461 nm 515 nm 650 nm	6 mm	5 mm	Colorless	1.9 V 3.3 V 3.3 V	100 °	4 mm Dia	Clear	6-SMD J-Lead	Blue Green Red	Round with Flat Top
Kingbright AAAF5060BRGS-11	2.3 mm	Independent	180 mcd	650 mcd	300 mcd				Surface Mount	470 nm 525 nm 621 nm	SMD		5 mm	6 mm	Colorless	2 V 3.3 V 3.3 V	100 °	4 mm Dia	Clear	6-SMD J-Lead	Blue Green Red	Round with Flat Top	20mA Blue 20mA Green 20mA Red	630 nm	515 nm	468 nm
Kingbright AAAF5060QBFSURZGS	2.3 mm	Independent				30 mA	30 mA	50 mA	Surface Mount	465 nm 525 nm 630 nm	SMD	461 nm 515 nm 650 nm	6 mm	5 mm	Colorless	1.9 V 3.3 V 3.3 V	100 °	4 mm Dia	Clear	6-SMD J-Lead	Blue Green Red	Round with Flat Top					400 mcd 800 mcd 1000 mcd
Kingbright AAAF5060QBDZGSEEC	2.3 mm	Independent	250 mcd	650 mcd	1000 mcd	30 mA	30 mA	50 mA	Surface Mount	470 nm 525 nm 621 nm	SMD		6 mm	5 mm	Colorless	2 V 3.3 V 3.3 V	100 °	4 mm Dia	Clear	6-SMD J-Lead	Blue Green Red	Round with Flat Top		630 nm	515 nm	468 nm
