178305 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

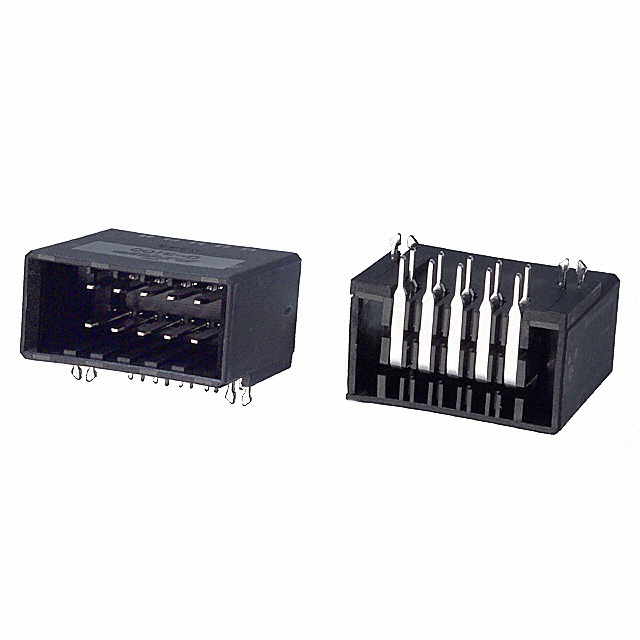

CONN HEADER R/A 10POS 3.81MM
| Part | Number of Rows | Style | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Voltage Rating | Material Flammability Rating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Shrouding | Applications | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Color | Contact Type | Number of Positions | Fastening Type | Insulation Material | Contact Finish - Post | Insulation Height | Insulation Height | Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | Board to Board Cable | 0.15 in | 3.81 mm | Rectangular | 250 VDC | UL94 V-0 | Through Hole Right Angle | 78.7 µin | 2 µm | All | Shrouded - 4 Wall | General Purpose Industrial | 3.81 mm | 0.15 in | 5.08 mm | 0.2 " | 105 ░C | -55 °C | Header | Black | Tab | 10 | Detent Lock | Glass Filled Polyester Thermoplastic | Tin | 14.43 mm | 0.568 in | Solder | Copper Alloy |
