1747/4C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

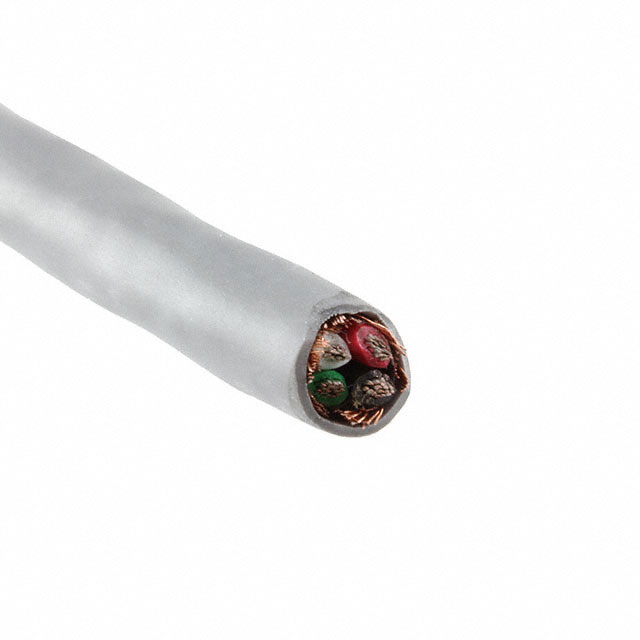

CABLE 4CON 18AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Length [x] | Length [x] | Voltage | Cable Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Wire Gauge | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Jacket (Insulation) Material | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 75 % | Copper Bare | 100 ft | 30.5 m | 300 VDC | Multi-Conductor | Slate | 0.256 in | 6.5 mm | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 4 | 18 AWG | Braid | 16 | 30 AWG | 80 °C | -20 ░C | Communication Control | Poly-Vinyl Chloride (PVC) | Copper Tinned | ||
ALPHA WIRE | 75 % | Copper Bare | 300 VDC | Multi-Conductor | Slate | 0.256 in | 6.5 mm | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 4 | 18 AWG | Braid | 16 | 30 AWG | 80 °C | -20 ░C | Communication Control | Poly-Vinyl Chloride (PVC) | Copper Tinned | 152.4 m | 500 ft | ||
 ALPHA WIRE | 75 % | Copper Bare | 300 VDC | Multi-Conductor | Slate | 0.256 in | 6.5 mm | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 4 | 18 AWG | Braid | 16 | 30 AWG | 80 °C | -20 ░C | Communication Control | Poly-Vinyl Chloride (PVC) | Copper Tinned | 304.8 m | 1000 ft |
