R12847 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

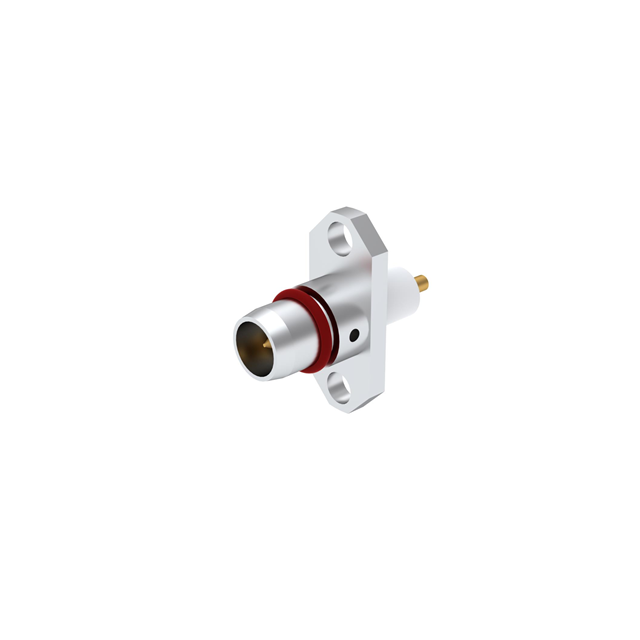

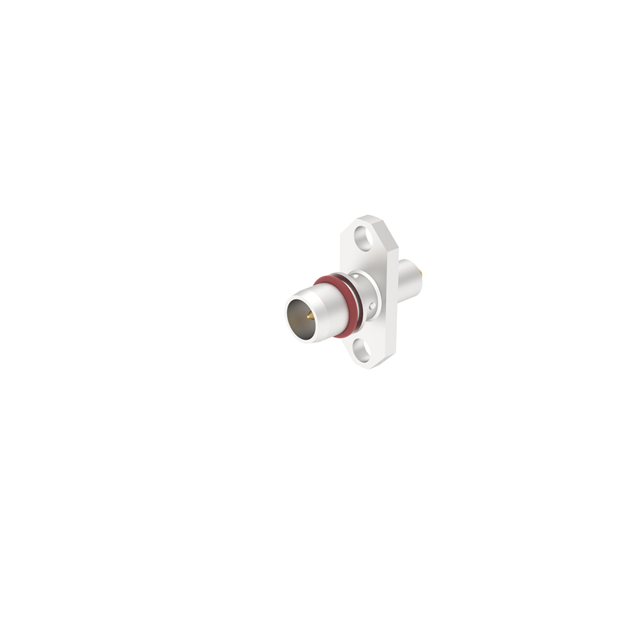

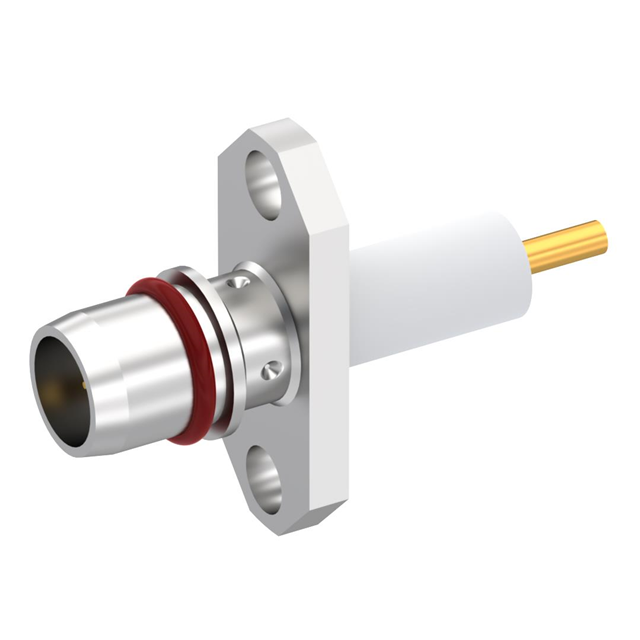

BMA / 2 HOLE FLANGE PLUG RECEPTA
| Part | Center Contact Plating | Body Finish | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Center Contact Material | Mounting Feature | Mounting Type | Shield Termination | Connector Type | Housing Color | Frequency - Max [Max] | Impedance | Features | Contact Termination | Connector Style | Number of Ports | Fastening Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | White Bronze | Brass | 500 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 500 V | Brass | Flange | Panel Mount Through Hole | Solder | Plug Male Pin | Silver | 18 GHz | 50 Ohms | Extended Insulation | Solder | BMA | 1 | Snap-On | |
 Radiall USA, Inc. | Gold | Stainless Steel | 1000 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 500 V | Brass | Flange | Panel Mount Through Hole | Solder | Plug Male Pin | Silver | 22 GHz | 50 Ohms | Extended Insulation | Solder | BMA | 1 | Snap-On | IP54 - Dust Protected | |
Radiall USA, Inc. | Gold | Stainless Steel | 1000 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 500 V | Brass | Flange | Panel Mount Through Hole | Solder | Receptacle Male Pin | Silver | 22 GHz | 50 Ohms | Extended Insulation | Solder | BMA | 1 | Snap-On | ||
 Radiall USA, Inc. | Gold | Stainless Steel | 1000 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 500 V | Brass | Flange | Panel Mount Through Hole | Solder | Plug Male Pin | Silver | 22 GHz | 50 Ohms | Extended Insulation | Solder | BMA | 1 | Snap-On | ||
 Radiall USA, Inc. | Gold | White Bronze | Brass | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 350 VDC | Brass | Flange | Panel Mount Through Hole | Solder | Receptacle Male Pin | Silver | 18 GHz | 50 Ohms | Extended Insulation | Solder | BMA | 1 | Snap-On | |
Radiall USA, Inc. | Gold | White Bronze | Brass | 500 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 500 V | Brass | Flange | Panel Mount Through Hole | Solder | Plug Male Pin | Silver | 18 GHz | 50 Ohms | Extended Insulation | Solder | BMA | 1 | Snap-On |
