750913 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

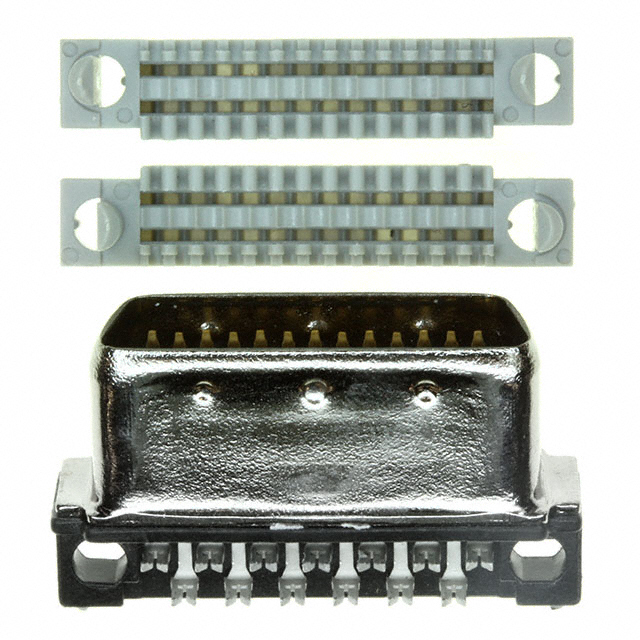

CONN D-TYPE PLUG 50POS IDC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Voltage Rating | Shell Material, Finish | Number of Positions | Material Flammability Rating | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Mounting Type | Connector Type | Termination | Number of Rows [custom] | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Polyester | Phosphor Bronze | Black | 30 VDC | Steel Tin-Nickel Plated | 50 | UL94 V-0 | Signal | 0.1 | 0.05 | D-Type | Free Hanging (In-Line) | Plug Male Pins | Discrete Wire IDC | 2 | Gold | Shielded Terminating Cover |
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Polyester | Phosphor Bronze | Gray | 30 VDC | Steel Tin-Nickel Plated | 26 | UL94 V-0 | Signal | 0.1 | 0.05 | D-Type | Free Hanging (In-Line) | Plug Male Pins | Discrete Wire IDC | 2 | Gold | Shielded Terminating Cover |
