171500 Series
Manufacturer: Molex
Beta
⌘K

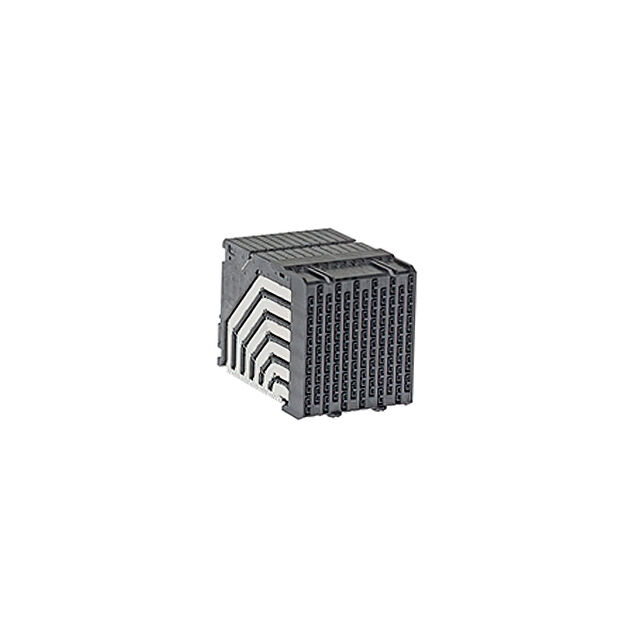

IMPEL 6PX12C ORTHO DC ASSY - UNG
| Part | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Type | Connector Style | Number of Rows | Mounting Type | Contact Layout, Typical | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Columns | Connector Usage | Contact Finish | Color | Pitch | Pitch | Number of Positions Loaded | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.75 A | UL94 V-0 | -55 C | 85 °C | 29.9 VAC/DC | Blade Sockets Female Sockets Receptacle | Impel™ | 12 | Right Angle Through Hole | 72 Differential Pairs | Press-Fit | 30 Áin | 0.76 Ám | 12 | Daughtercard Orthogonal | Gold | Black | 0.092 in | 2.35 mm | All | 144 |
