NOIP1SF0480 Series

CMOS Image Sensor, Global Shutter, 0.48 MP, SVGA

Catalog

CMOS Image Sensor, Global Shutter, 0.48 MP, SVGA

Part	Voltage - Supply	Frames per Second	Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplied Contents	Sensor Type	Utilized IC / Part	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]
ON Semiconductor NOIP1SN0480A-STI	1.8 V 3.3 V	120	CMOS	85 °C	-40 °C
ON Semiconductor NOIP1SN0480A-STI-A-GEVK						Board(s)	Image Sensor	PYTHON
ON Semiconductor NOIP1SE0480A-STI-A-GEVK						Board(s)	Image Sensor	PYTHON
ON Semiconductor NOIP1SE0480A-STI1			CMOS	85 °C	-40 °C				6	4.2	54-ODCSP	54-WFBGA CSPBGA	3.2 V	3.4 V

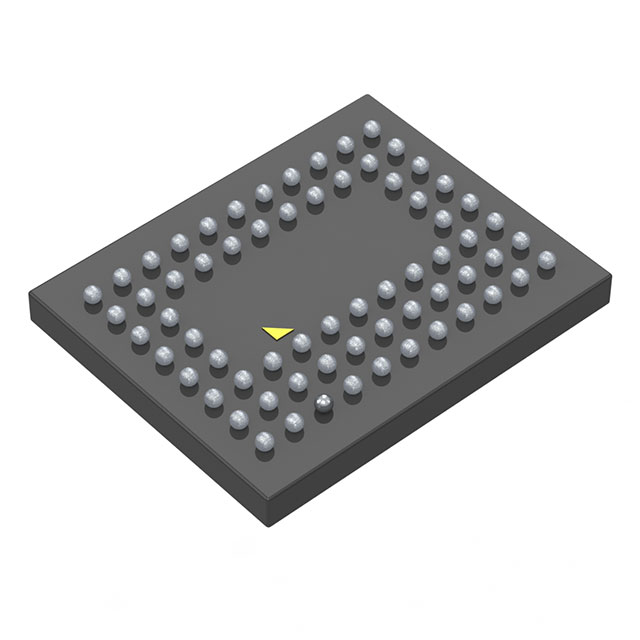

ON Semiconductor NOIP1SP0480A-STI		120	CMOS	85 °C	-40 °C				4.93	6.13	67-ODCSP	67-WFBGA CSPBGA
ON Semiconductor NOIP1SF0480A-STI1		120	CMOS	85 °C	-40 °C				4.93	6.13	67-ODCSP	67-WFBGA CSPBGA

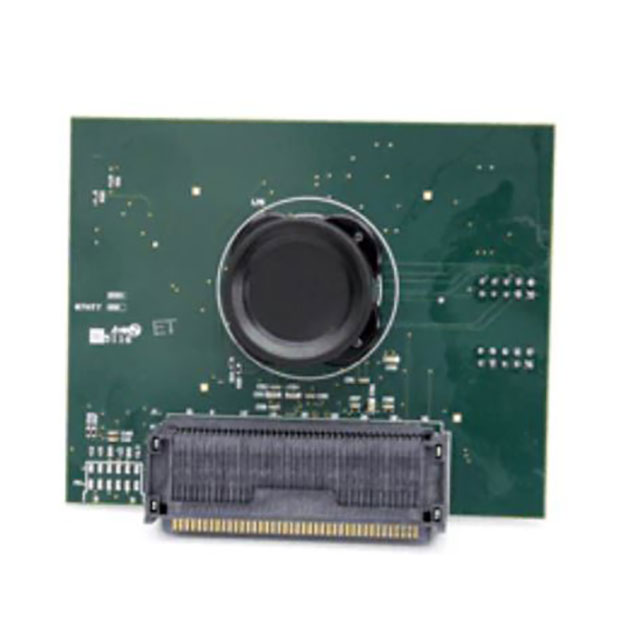

ON Semiconductor NOIP1SN0480A-HEAD-BD-A-GEVK						Board(s)	Image Sensor	PYTHON
ON Semiconductor NOIP1SP0480A-STI1		120	CMOS	85 °C	-40 °C				4.93	6.13	67-ODCSP	67-WFBGA CSPBGA

CMOS Image Sensor, Global Shutter, 0.48 MP, SVGA

• Global Shutter technology with Correlated Double Sampling

• SVGA resolution with 120 fps

• Compact CSP package

• 4.8 µm pixel size

• Significant power savings vs PYTHON 500 (same resolution)

The PYTHON 480 is a 1/3.6 inch SVGA CMOS image sensor with a pixel array of 800 by 600 pixels.
