BAS70 Series

Manufacturer: Micro Commercial Components

Catalog

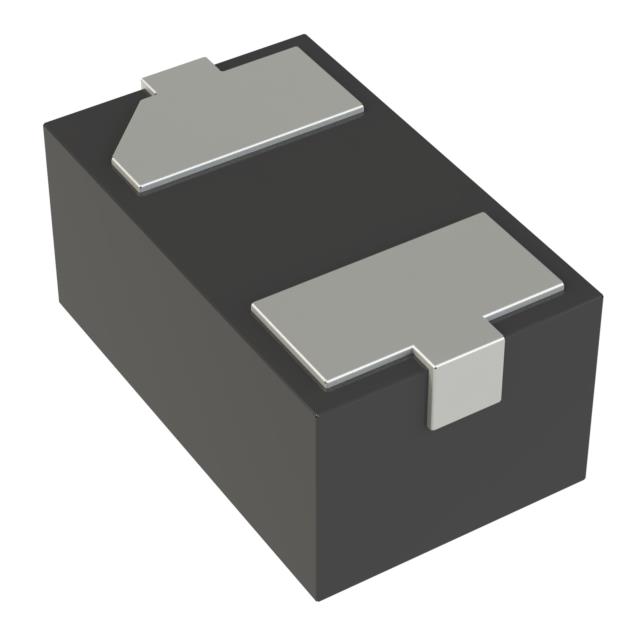

DIODE SCHOTT 70V 70MA DFN1006-2L

Part	Current - Reverse Leakage @ Vr	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Package / Case	Reverse Recovery Time (trr)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Supplier Device Package	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Operating Temperature - Junction
Micro Commercial Components BAS70L2-TP	200 nA	Schottky	70 V	Any Speed	200 mA	0402 (1006 Metric)	5 ns	-55 °C	125 °C	Surface Mount	DFN1006-2L	70 mA	2 pF	1 V

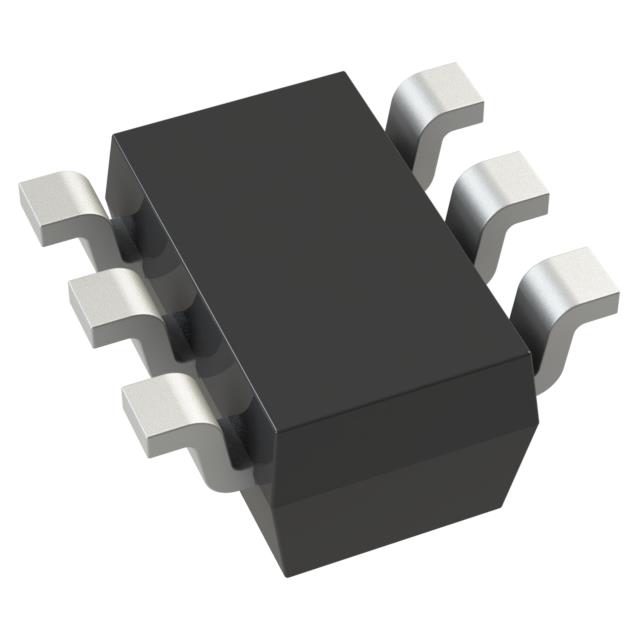

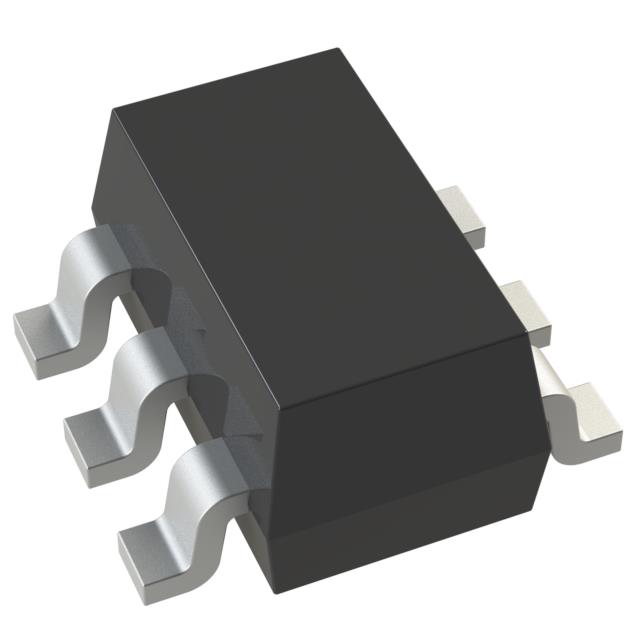

Micro Commercial Components BAS70DW-05-TP	100 nA	Schottky	70 V	Any Speed	200 mA	6-TSSOP SC-88 SOT-363	5 ns	-55 °C	125 °C	Surface Mount	SOT-363			1 V	70 mA	2 Pair Common Cathode
Micro Commercial Components BAS70WT-06-TP	100 nA	Schottky	70 V	Any Speed	200 mA	SC-70 SOT-323	5 ns	-55 °C	125 °C	Surface Mount	SOT-323			1 V		1 Pair Common Anode
Micro Commercial Components BAS70-04T-TP	100 nA	Schottky	70 V	Any Speed	200 mA	SOT-523	5 ns	-55 °C	125 °C	Surface Mount	SOT-523			1 V		1 Pair Series Connection
Micro Commercial Components BAS70DW-04-TP	100 nA	Schottky	70 V	Any Speed	200 mA	6-TSSOP SC-88 SOT-363	5 ns	-55 °C	125 °C	Surface Mount	SOT-363			1 V	70 mA	2 Pair Series Connection
Micro Commercial Components BAS70DW-06-TP	100 nA	Schottky	70 V	Any Speed	200 mA	6-TSSOP SC-88 SOT-363	5 ns	-55 °C	125 °C	Surface Mount	SOT-363			1 V	70 mA	2 Pair Common Anode
Micro Commercial Components BAS70T-TP	100 nA	Schottky	70 V	Any Speed	200 mA	SOT-523	5 ns	-55 °C	125 °C	Surface Mount	SOT-523	70 mA	2 pF	1 V
Micro Commercial Components BAS70TW-TP	100 nA	Schottky	70 V	Any Speed	200 mA	6-TSSOP SC-88 SOT-363	5 ns	-55 °C	125 °C	Surface Mount	SOT-363			1 V	70 mA	3 Independent
Micro Commercial Components BAS70WT-05-TP	100 nA	Schottky	70 V	Any Speed	200 mA	SC-70 SOT-323	5 ns	-55 °C	125 °C	Surface Mount	SOT-323			1 V		1 Pair Common Cathode
Micro Commercial Components BAS70LP-TP	100 µA	Schottky	70 V	Any Speed	200 mA	SOD-882				Surface Mount	SOD-882	70 mA		1 V			125 °C
